Control Linear Servo Actuator With Potentiometer Using Visuino

In this tutorial you will learn how to Control Linear Servo Actuator with Potentiometer and Arduino using Visuino program.

Watch the video!

STEP 1
What You Will Need

What You Will Need

What You Will Need

What You Will Need

What You Will Need

What You Will Need

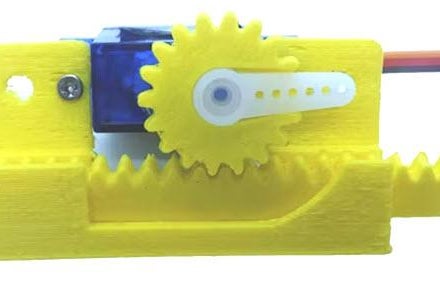

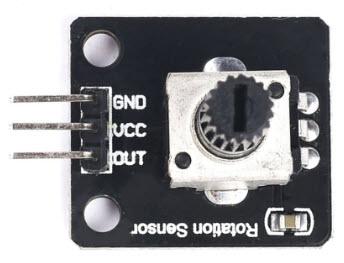

Arduino UNO (Or any other Arduino)Linear Servo ActuatorPotentiometer modulePower SupplyVisuino program: Download Visuino
STEP 2
The Circuit

The Circuit

Connect Servo motor "Orange" (signal) pin to Arduino Digital pin[2]Connect Servo motor "Red" pin to Arduino positive pin[5V]Connect Servo motor "Brown" pin to Arduino negative pin[GND]Connect potentiometer module pin [Out] to arduino analog pin [A0]Connect potentiometer module pin [VCC] to arduino pin [5V]Connect potentiometer module pin [GND] to arduino pin [GND]
STEP 3
Start Visuino, and Select the Arduino UNO Board Type

Start Visuino, and Select the Arduino UNO Board Type

Start Visuino, and Select the Arduino UNO Board Type

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

STEP 4
In Visuino Add & Connect Components

In Visuino Add & Connect Components

In Visuino Add & Connect Components

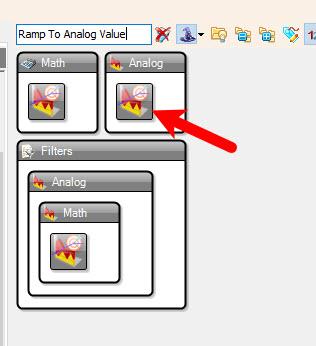

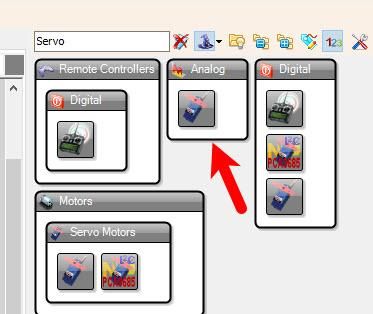

Add "Ramp To Analog Value" component (This component is not necessary, but it ads a smooth start of the servo, so it is recommended, you can adjust the values in the properties window)Add "Servo" component



Connect Arduino analog pin [0] to "RampToValue1" pin [In]Connect "RampToValue1" pin [Out] to "Servo1" pin [In]Connect "Servo1" pin [Out] to Arduino digital pin [2]
STEP 5
Generate, Compile, and Upload the Arduino Code

Generate, Compile, and Upload the Arduino Code

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

STEP 6
Play

If you power the Arduino module and change the potentiometer tha servo motor will change its position.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this Instructable, you can download it and open it in Visuino: https://www.visuino.com

icon Linear-Servo-Potentiometer.zip 1KB Download(0)
