Existential Crisis aka ArduinoRPG

visual sim of character wandering through a maze to find a key, find exit door stuck repeating for eternity

Existential Crisis aka ArduinoRPG

Things used in this project



Hardware components

HARDWARE LIST
1 Arduino UNO
1 DFRobot Arduino Uno LCD with buttons Shield
1 MAX7219 8X8 Red Dot LED Matrix

Software apps and online services



Microsoft Visual Studio 2015



Arduino IDE

Hand tools and fabrication machines



Soldering iron (generic)

Story





The project makes a visually interesting simulation of a character wandering through a maze looking for a key and trying to find the door to exit only to be stuck repeating this for all eternity.  Additionally, there are "enemies" trying to kill the character, but the bright side is that when the character dies, within a matter of time, he is regenerated forever stuck looking for potions to stay alive a little longer only to find another key and another door.

In my youth, we had arcades and bowling alleys to play games slightly better than the Atari home gaming system. The VIC-20 home computer system was the predecessor to the Commodore-64. Growing-up during a time before wireless phones and graphics better than the Atari, I really enjoyed the text-based adventure games. To this day, I can recall images in my mind of what I imagined while reading the descriptions of the environments I got to explore. Using only Arduino Uno, I want something like a text-based adventure or Multi-User Dungeons (MUDs), or Zork, using basic rules of Dungeons & Dragons with a feel similar to Gauntlet or Diablo.

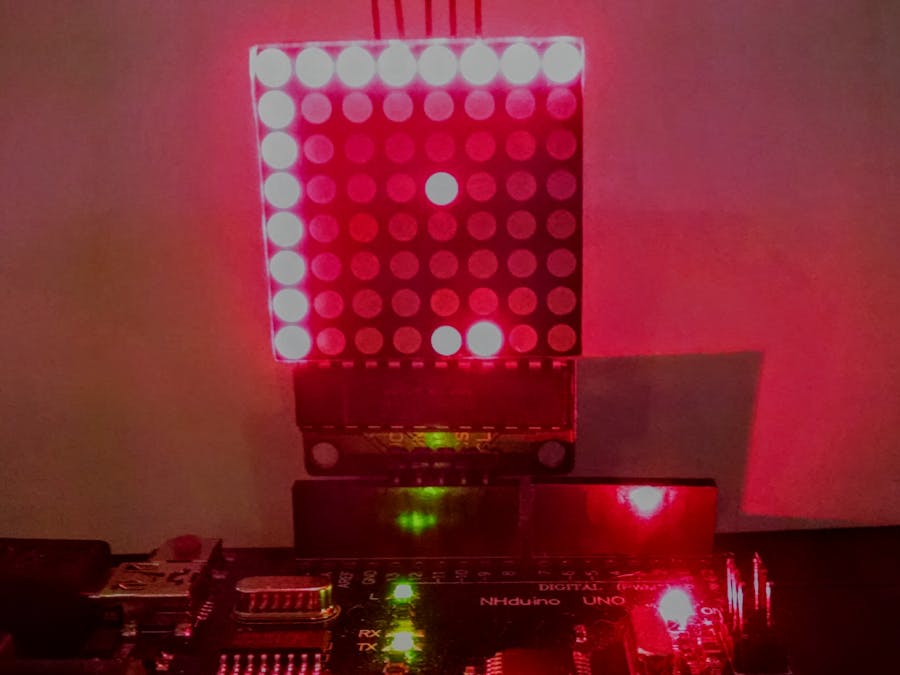

This simulation covers the basic motivation of finding the key hidden in the current map and then locate the door to exit.  Each player has hit-points, armor class, experience points, and can hold up to three items.  The MAX7219 8X8 Red Dot LED Matrix is used as a 'viewer' into the world of the simulation, displaying a section of overall map at a time.  Each dot represents either a wall, if solid or a player when blinking. As the player moves around the map, the display moves to the relevant section.



I have included several mini animations, a series of icons shown on the 8x8 display, for finding a key, using a potion, using magic, opening the door, and player death. I have also included numbers 1 - 20 for showing the result of a simulated die roll. However, showing the number each time the player rolls is annoying so this animation has been disabled.

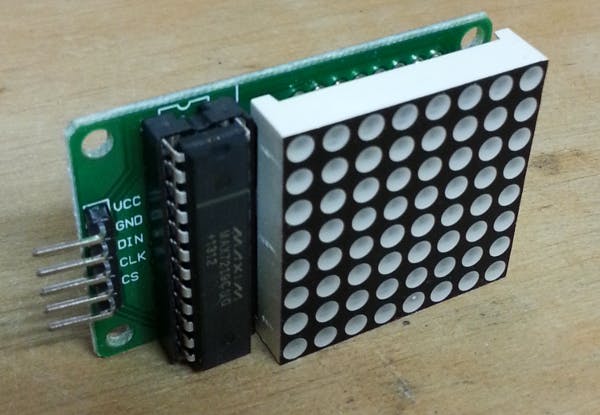

MAX7219 8X8 Red Dot LED Matrix

MAX7219 8X8 Red Dot LED Matrix







Solder on a header to the LCD with buttons Shield



The hardware I used for this project is an Arduino Uno with the LCD with buttons Shield.  I soldered a female header in the upper right-hand corner of the LCD shield PCB so that I could plug in the MAX7219 8X8 Red Dot LED Matrix.  The code is set to use these pins.  The working prototype makes basic decisions and has a ‘short-term’ memory.  The MAX7219 8X8 Red Dot LED Matrix displays portions of the 16x16 map at a time, acting as a ‘viewer’.  The simulation can be played through the LCD Shield, which when combined with the code for the simulation, maxed out the program space on the microcontroller.  My plans for incorporating a neural network will have to be programmed on a separate Arduino unit. I have programmed the transmit and receive of the Player objects using I2C to communicate between the microcontrollers.







Compile and Upload the Source Code



Source Codehttps://github.com/bitsandbots/ArduinoRPG



If you are making this project then I will assume that you know how to compile a sketch and upload it to the Arduino Uno. You will need to have the LiquidCrystal.h library and the LedControl library in order to compile the source available at the link above.









Using the buttons on the LCD Shield



The code for controlling the player's actions using the LCD buttons shield works but you will have to slow down the timing of turns by pressing the DOWN button until the simulation has slowed down enough. The UP button increases the speed. Selections can be made by pressing the RIGHT button to toggle and the SELECT button to choose. I would appreciate any feedback you have as to how we can better control the player and keep the simulation going at a reasonable rate.





Custom parts and enclosures



LCD Shield Schematic







LCD Shield footprint





Schematics



LCD Shield Schematic








The article was first published in hackster, February 18, 2016

cr: https://www.hackster.io/bitsandbots/existential-crisis-aka-arduinorpg-fdf238

author:   Cory Potter
