Portable vehicle to monitoring marine pollution

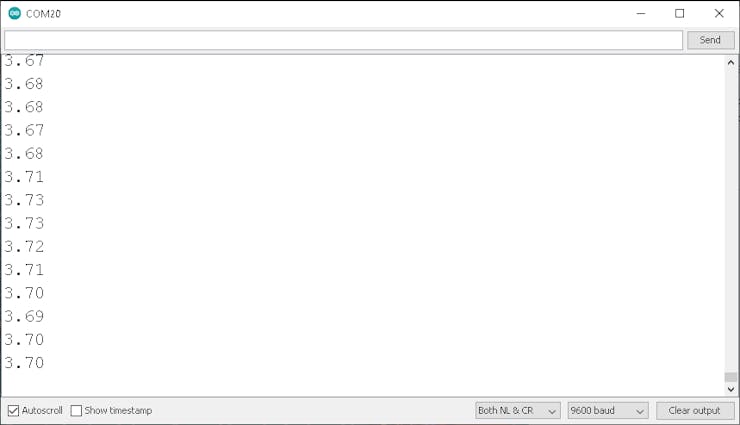

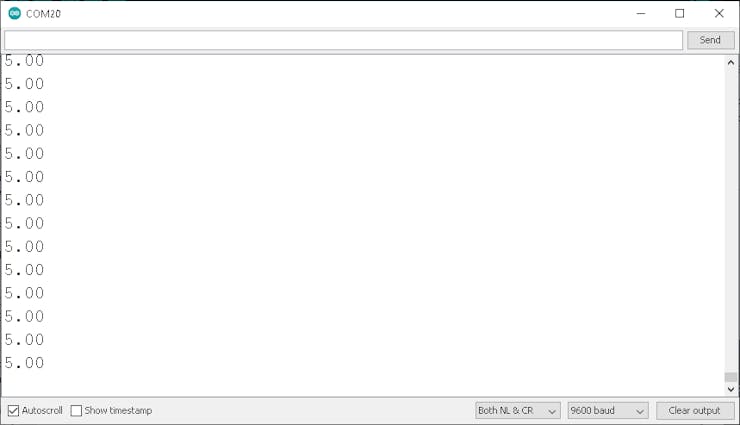

int sensorPin = A0;
float volt;

void setup()
{
  Serial.begin(9600);
 }

void loop()
{

    volt = 0;
    for(int i=0; i<800; i++)
    {
        volt += ((float)analogRead(sensorPin)/1023)*5;
    }
    volt = volt/800;
    volt = round_to_dp(volt,2);

    Serial.print(volt);
    delay(10);
}

float round_to_dp( float in_value, int decimal_place )
{
  float multiplier = powf( 10.0f, decimal_place );
  in_value = roundf( in_value * multiplier ) / multiplier;
  return in_value;
}

const int analogInPin = A1;
int sensorValue = 0;
unsigned long int avgValue;
float b;
int buf[10],temp;
void setup() {
 Serial.begin(9600);
}

void loop() {
 for(int i=0;i<10;i++)
 {
  buf[i]=analogRead(analogInPin);
  delay(10);
 }
 for(int i=0;i<9;i++)
 {
  for(int j=i+1;j<10;j++)
  {
   if(buf[i]>buf[j])
   {
    temp=buf[i];
    buf[i]=buf[j];
    buf[j]=temp;
   }
  }
 }
 avgValue=0;
 for(int i=2;i<8;i++)
 avgValue+=buf[i];

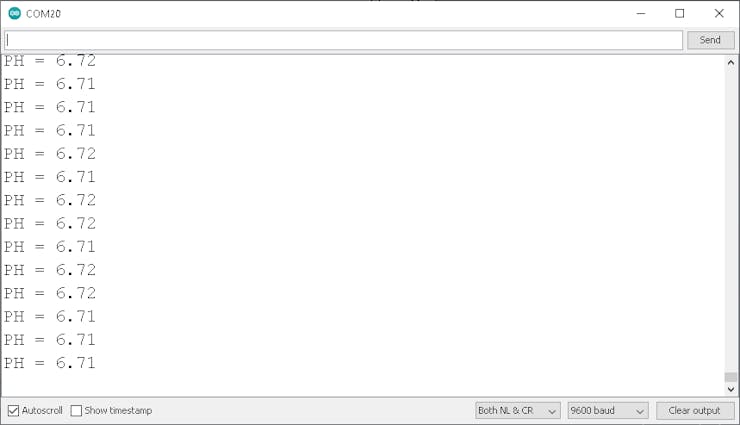

 float pHVol=(float)avgValue*3.3/1024/6;
 float phValue = -5.70 * pHVol + 21.34;

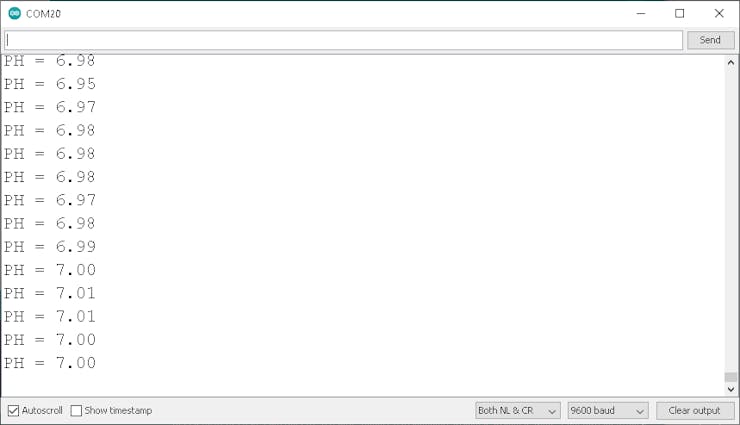

 Serial.print("PH = ");
 Serial.println(phValue);

 delay(20);
}

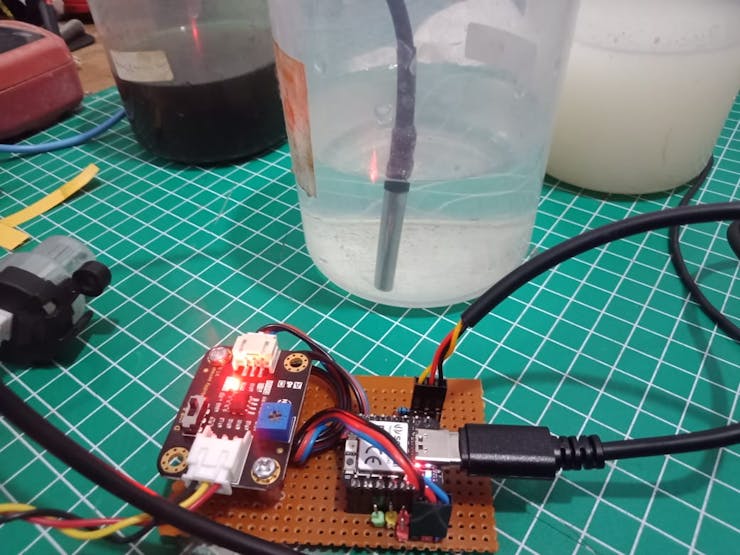

#include <OneWire.h>
#include <DallasTemperature.h>

// Data wire is conntec to the Arduino digital pin 4
#define ONE_WIRE_BUS 2

// Setup a oneWire instance to communicate with any OneWire devices
OneWire oneWire(ONE_WIRE_BUS);

// Pass our oneWire reference to Dallas Temperature sensor
DallasTemperature sensors(&oneWire);

void setup(void)
{
  // Start serial communication for debugging purposes
  Serial.begin(9600);
  // Start up the library
  sensors.begin();
}

void loop(void){
  // Call sensors.requestTemperatures() to issue a global temperature and Requests to all devices on the bus
  sensors.requestTemperatures();

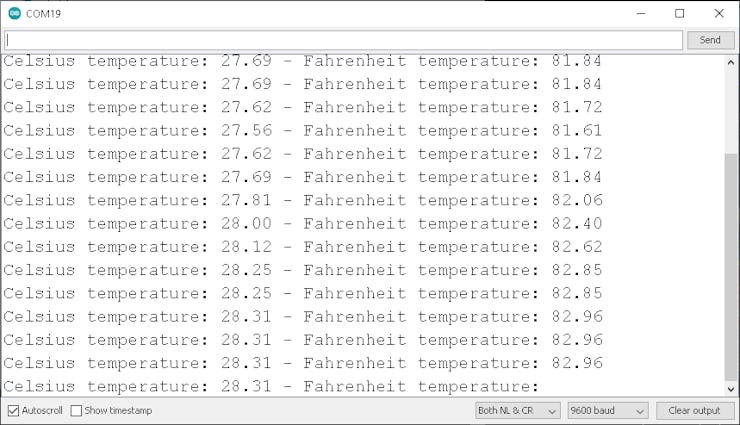

  Serial.print("Celsius temperature: ");
  // Why "byIndex"? You can have more than one IC on the same bus. 0 refers to the first IC on the wire
  Serial.print(sensors.getTempCByIndex(0));
  Serial.print(" - Fahrenheit temperature: ");
  Serial.println(sensors.getTempFByIndex(0));
  delay(1000);
}

#include <Arduino.h>
#include <SoftwareSerial.h>
#include <Wire.h>
SoftwareSerial e5(9, 10);
int data1=0;
int data2=0;
int data3=0;
int data4=0;

static char recv_buf[512];
static bool is_exist = false;

static int at_send_check_response(char *p_ack, int timeout_ms, char *p_cmd, ...)
{
    int ch = 0;
    int index = 0;
    int startMillis = 0;
    va_list args;
    memset(recv_buf, 0, sizeof(recv_buf));
    va_start(args, p_cmd);
    e5.printf(p_cmd, args);
    Serial.printf(p_cmd, args);
    va_end(args);
    delay(200);
    startMillis = millis();

    if (p_ack == NULL)
    {
        return 0;
    }

    do
    {
        while (e5.available() > 0)
        {
            ch = e5.read();
            recv_buf[index++] = ch;
            Serial.print((char)ch);
            delay(2);
        }
        if (strstr(recv_buf, p_ack) != NULL)
        {
            return 1;
        }
    } while (millis() - startMillis < timeout_ms);
    return 0;
}

static int node_send(uint32_t timeout)
{
    static uint16_t count = 0;
    int ret = 0;
    char data[32];
    char cmd[128];

    memset(data, 0, sizeof(data));
    sprintf(data, "%04X,%04X,%04X,%04X", data1, data2, data3,data4);
    sprintf(cmd, "AT+TEST=TXLRPKT,\"5345454544%s\"\r\n", data);
    ret = at_send_check_response("TX DONE", 2000, cmd);
    if (ret == 1)
    {
        Serial.print("Sent successfully!\r\n");
    }
    else
    {
        Serial.print("Send failed!\r\n");
    }
    data1++;
    data2=data2+5;
    data3=data3+10;
    data4=data4+20;
    return ret;
}

void setup(void)
{
    Serial.begin(115200);
    // while (!Serial);
    e5.begin(9600);
    uint16_t error;
    char errorMessage[256];
    Serial.print("ping pong communication!\r\n");
    if (at_send_check_response("+AT: OK", 100, "AT\r\n"))
    {
        is_exist = true;
        at_send_check_response("+MODE: TEST", 1000, "AT+MODE=TEST\r\n");
        at_send_check_response("+TEST: RFCFG", 1000, "AT+TEST=RFCFG,866,SF12,125,12,15,14,ON,OFF,OFF\r\n");
        delay(200);
    }
    else
    {
        is_exist = false;
        Serial.print("No E5 module found.\r\n");
    }
}

void loop(void)
{
    if (is_exist)
    {
        node_send(2000);
        delay(3000);
    }
}

#include <Arduino.h>
#include <TFT_eSPI.h>
#include <Wire.h>
#include <SoftwareSerial.h>
SoftwareSerial e5(0, 1);
static char recv_buf[512];
static bool is_exist = false;


TFT_eSPI tft;
TFT_eSprite spr = TFT_eSprite(&tft);  //sprite
static int at_send_check_response(char *p_ack, int timeout_ms, char *p_cmd, ...)
{
    int ch = 0;
    int index = 0;
    int startMillis = 0;
    va_list args;
    memset(recv_buf, 0, sizeof(recv_buf));
    va_start(args, p_cmd);
    e5.printf(p_cmd, args);
    Serial.printf(p_cmd, args);
    va_end(args);
    delay(200);
    startMillis = millis();

    if (p_ack == NULL)
    {
        return 0;
    }
    do
    {
        while (e5.available() > 0)
        {
            ch = e5.read();
            recv_buf[index++] = ch;
            Serial.print((char)ch);
            delay(2);
        }

        if (strstr(recv_buf, p_ack) != NULL)
        {
            return 1;
        }

    } while (millis() - startMillis < timeout_ms);
    return 0;
}

static int recv_prase(void)
{
    char ch;
    int index = 0;
    memset(recv_buf, 0, sizeof(recv_buf));
    while (e5.available() > 0)
    {
        ch = e5.read();
        recv_buf[index++] = ch;
        Serial.print((char)ch);
        delay(2);
    }

    if (index)
    {
        char *p_start = NULL;
        char data[32] = {
            0,
        };
        int rssi = 0;
        int snr = 0;

        p_start = strstr(recv_buf, "+TEST: RX \"5345454544");
        if (p_start)
        {

            spr.fillSprite(TFT_BLACK);
            p_start = strstr(recv_buf, "5345454544");
            if (p_start && (1 == sscanf(p_start, "5345454544%s,", data)))
            {
                data[16] = 0;
                int data1;
                int data2;
                int data3;
                int data4;
                char *endptr;
                char *endptr1;
                char *endptr2;
                char *endptr3;
                char dataarray1[5] = {data[0], data[1],data[2], data[3]};
                char dataarray2[5] = {data[4], data[5], data[6], data[7]};
                char dataarray3[5] = {data[8], data[9], data[10], data[11]};
                char dataarray4[5] = {data[12], data[13],data[14], data[15]};

                data1 = strtol(dataarray1, &endptr, 16);
                data2 = strtol(dataarray2, &endptr1, 16);
                data3 = strtol(dataarray3, &endptr, 16);
                data4 = strtol(dataarray4, &endptr1, 16);

                  spr.createSprite(55, 30);
                  spr.setFreeFont(&FreeSansBoldOblique12pt7b);
                  spr.setTextColor(TFT_WHITE);
                  spr.drawNumber(data1, 0, 0, 1);
                  spr.setTextColor(TFT_GREEN);
                  spr.pushSprite((tft.width() / 2) - 1, 100);
                  spr.deleteSprite();

                  spr.createSprite(55, 30);
                  spr.setFreeFont(&FreeSansBoldOblique12pt7b);
                  spr.setTextColor(TFT_WHITE);
                  spr.drawNumber(data2, 0, 0, 1);
                  spr.pushSprite(((tft.width() / 2) + (tft.width() / 2) / 2), 97);
                  spr.deleteSprite();

                  spr.createSprite(55, 30);
                  spr.setFreeFont(&FreeSansBoldOblique12pt7b);
                  spr.setTextColor(TFT_WHITE);
                  spr.drawNumber(data3, 0, 0, 1);
                  spr.pushSprite((tft.width() / 2) - 1, (tft.height() / 2) + 67);
                  spr.deleteSprite();

                  spr.createSprite(55, 30);
                  spr.setFreeFont(&FreeSansBoldOblique12pt7b);
                  spr.setTextColor(TFT_WHITE);
                  spr.drawNumber(data4, 0 , 0, 1);
                  spr.pushSprite(((tft.width() / 2) + (tft.width() / 2) / 2), (tft.height() / 2) + 67);
                  spr.deleteSprite();
                Serial.print("data received displaying on the wio terminal");
                Serial.print("\r\n");

            }

            p_start = strstr(recv_buf, "RSSI:");
            if (p_start && (1 == sscanf(p_start, "RSSI:%d,", &rssi)))
            {
                String newrssi = String(rssi);

                Serial.print(rssi);
                Serial.print("\r\n");

            }
            p_start = strstr(recv_buf, "SNR:");
            if (p_start && (1 == sscanf(p_start, "SNR:%d", &snr)))
            {
                Serial.print(snr);
                Serial.print("\r\n");


            }
            return 1;
        }
    }
    return 0;
}

static int node_recv(uint32_t timeout_ms)
{
    at_send_check_response("+TEST: RXLRPKT", 1000, "AT+TEST=RXLRPKT\r\n");
    int startMillis = millis();
    do
    {
        if (recv_prase())
        {
            return 1;
        }
    } while (millis() - startMillis < timeout_ms);
    return 0;
}
void setup() {
    Serial.begin(115200);
    tft.begin();
    tft.setRotation(3);

    e5.begin(9600);
    Serial.print("Receiver\r\n");

    if (at_send_check_response("+AT: OK", 100, "AT\r\n"))
    {
        is_exist = true;
        at_send_check_response("+MODE: TEST", 1000, "AT+MODE=TEST\r\n");
        at_send_check_response("+TEST: RFCFG", 1000, "AT+TEST=RFCFG,866,SF12,125,12,15,14,ON,OFF,OFF\r\n");
        delay(200);
    }
    else
    {
        is_exist = false;
        Serial.print("No E5 module found.\r\n");
    }

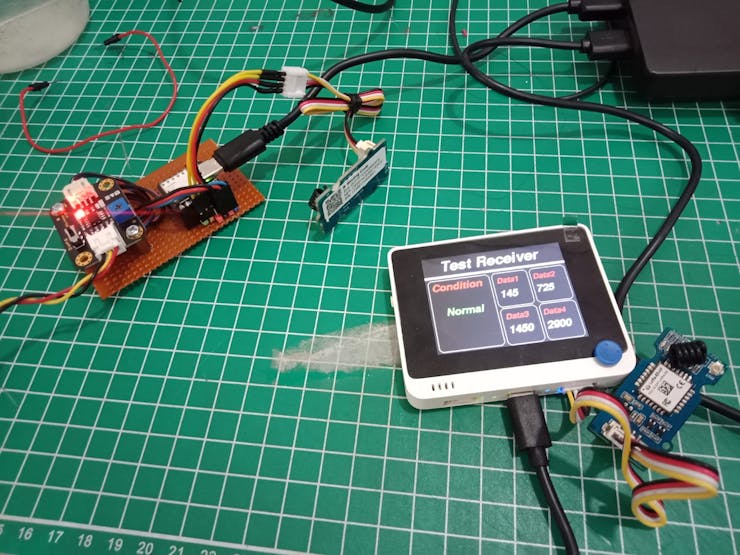

  //Head
  tft.fillScreen(TFT_BLACK);
  tft.setFreeFont(&FreeSansBoldOblique18pt7b);
  tft.setTextColor(TFT_WHITE);
  tft.drawString("Test Receiver", 40, 10 , 1);

  //Line
  for (int8_t line_index = 0; line_index < 5 ; line_index++)
  {
    tft.drawLine(0, 50 + line_index, tft.width(), 50 + line_index, TFT_WHITE);
  }

  //Additional
  tft.drawRoundRect(5, 60, (tft.width() / 2) - 20 , tft.height() - 65 , 10, TFT_WHITE); // L1
  tft.setFreeFont(&FreeSansBoldOblique12pt7b);
  tft.setTextColor(TFT_RED);
  tft.drawString("Condition", 12 , 65 , 1);
  tft.setTextColor(TFT_GREEN);
  tft.drawString("Normal", 35, 128, 1);

  //data1
  tft.drawRoundRect((tft.width() / 2) - 10  , 60, (tft.width() / 2) / 2 , (tft.height() - 65) / 2 , 10, TFT_WHITE); // s1
  tft.setFreeFont(&FreeSansBoldOblique9pt7b);
  tft.setTextColor(TFT_RED) ;
  tft.drawString("Data1", (tft.width() / 2) - 1  , 70 , 1); // Print the test text in the custom font

  //data2
  tft.drawRoundRect(((tft.width() / 2) + (tft.width() / 2) / 2) - 5  , 60, (tft.width() / 2) / 2 , (tft.height() - 65) / 2 , 10, TFT_WHITE); // s2
  tft.setFreeFont(&FreeSansBoldOblique9pt7b);
  tft.setTextColor(TFT_RED);
  tft.drawString("Data2", ((tft.width() / 2) + (tft.width() / 2) / 2)   , 70 , 1); // Print the test text in the custom font

  //data3
  tft.drawRoundRect((tft.width() / 2) - 10 , (tft.height() / 2) + 30, (tft.width() / 2) / 2 , (tft.height() - 65) / 2 , 10, TFT_WHITE); // s3
  tft.setFreeFont(&FreeSansBoldOblique9pt7b);
  tft.setTextColor(TFT_RED) ;
  tft.drawString("Data3", (tft.width() / 2) - 1 , (tft.height() / 2) + 40 , 1); // Print the test text in the custom font

  //data4
  tft.drawRoundRect(((tft.width() / 2) + (tft.width() / 2) / 2) - 5  , (tft.height() / 2) + 30, (tft.width() / 2) / 2 , (tft.height() - 65) / 2 , 10, TFT_WHITE); // s4
  tft.setFreeFont(&FreeSansBoldOblique9pt7b);
  tft.setTextColor(TFT_RED) ;
  tft.drawString("Data4", ((tft.width() / 2) + (tft.width() / 2) / 2)   , (tft.height() / 2) + 40 , 1); // Print the test text in the custom font

}

void loop() {
   if (is_exist)
    {
        node_recv(2000);
    }
}

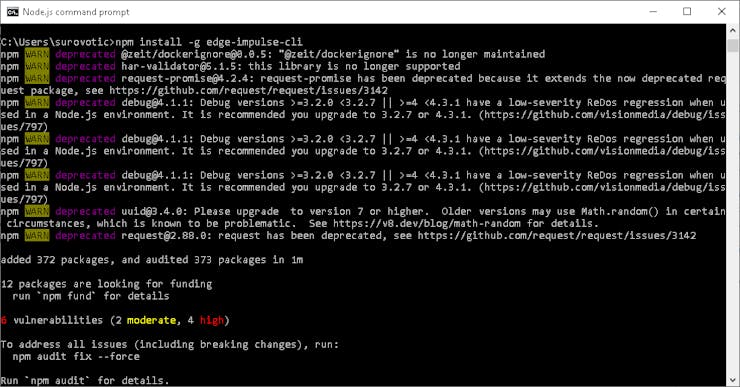

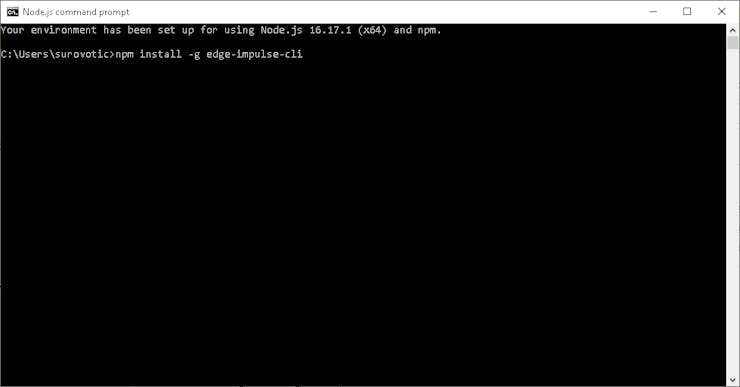

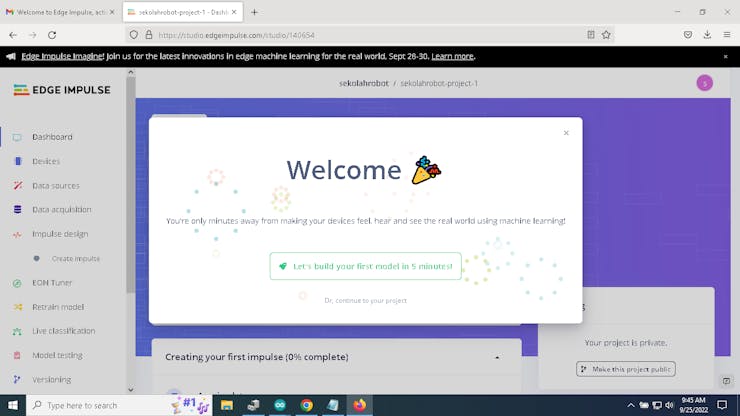

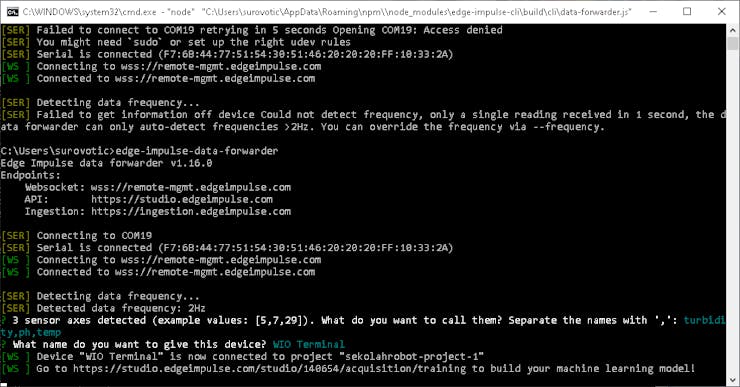

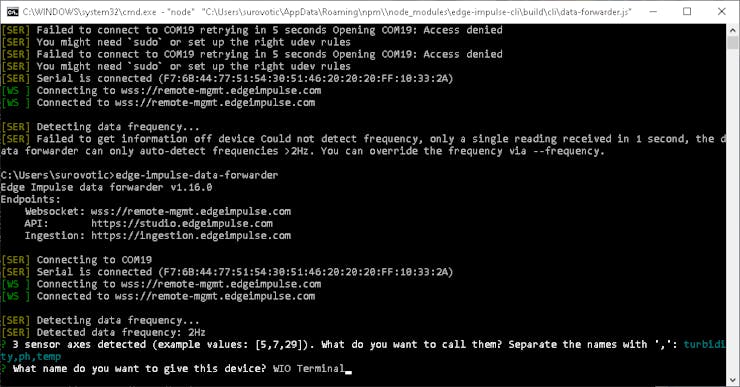

npm install -g edge-impulse-cli

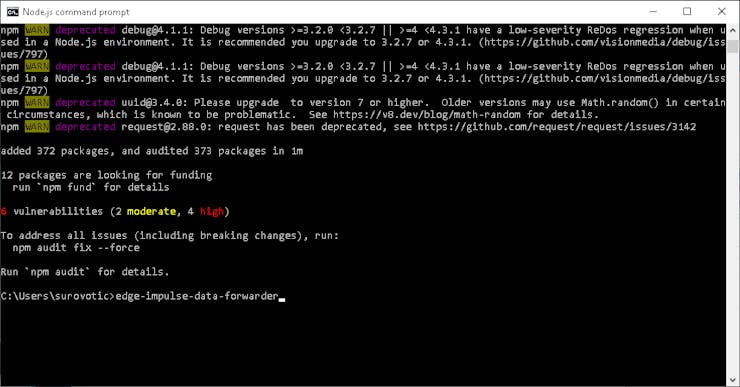

edge-impulse-data-forwarder

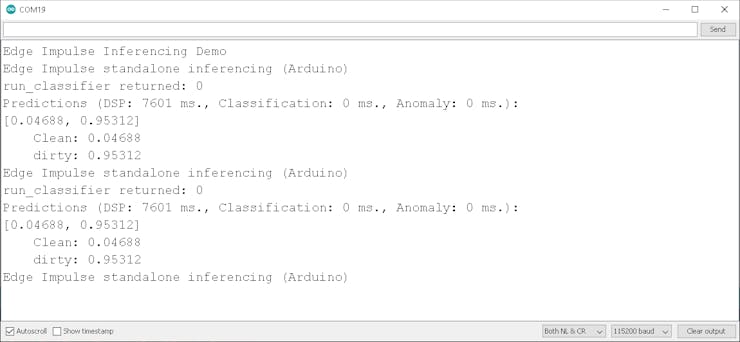

/* Edge Impulse Arduino examples
 * Copyright (c) 2021 EdgeImpulse Inc.
 *
 * Permission is hereby granted, free of charge, to any person obtaining a copy
 * of this software and associated documentation files (the "Software"), to deal
 * in the Software without restriction, including without limitation the rights
 * to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
 * copies of the Software, and to permit persons to whom the Software is
 * furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be included in
 * all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
 * IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
 * FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
 * AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
 * LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
 * OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
 * SOFTWARE.
 */

/* Includes ---------------------------------------------------------------- */
#include <sekolahrobot-project-1_inferencing.h>
#include <Arduino.h>
#include <SoftwareSerial.h>
#include <Wire.h>
#include <OneWire.h>
#include <DallasTemperature.h>

SoftwareSerial e5(9, 10);
const int analogInPin = A1;
int sensorPin = A0;
float volt;
int sensorValue = 0;
unsigned long int avgValue;
float pHVol;
float phValue;
float b;
int buf[10],temp;

#define ONE_WIRE_BUS 2
OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensors(&oneWire);
float tempC;

static const float features[114] = {};

int raw_feature_get_data(size_t offset, size_t length, float *out_ptr) {
  float features[114];
  readPH();
  readTurbidity();
  readSuhu();

  for (byte i = 0; i < 114; i = i + 3)
  {
    features[i]=volt;
    features[i+1]=phValue;
    features[i+2]=tempC;
    delay(200);
  }
  memcpy(out_ptr, features + offset, length * sizeof(float));
  return 0;
}


void setup()
{
    // put your setup code here, to run once:
    Serial.begin(115200);
    // comment out the below line to cancel the wait for USB connection (needed for native USB)
    while (!Serial);
    Serial.println("Edge Impulse Inferencing Demo");
}

/**
 * @brief      Arduino main function
 */
void loop()
{
    ei_printf("Edge Impulse standalone inferencing (Arduino)\n");

    if (sizeof(features) / sizeof(float) != EI_CLASSIFIER_DSP_INPUT_FRAME_SIZE) {
        ei_printf("The size of your 'features' array is not correct. Expected %lu items, but had %lu\n",
            EI_CLASSIFIER_DSP_INPUT_FRAME_SIZE, sizeof(features) / sizeof(float));
        delay(1000);
        return;
    }

    ei_impulse_result_t result = { 0 };

    // the features are stored into flash, and we don't want to load everything into RAM
    signal_t features_signal;
    features_signal.total_length = sizeof(features) / sizeof(features[0]);
    features_signal.get_data = &raw_feature_get_data;

    // invoke the impulse
    EI_IMPULSE_ERROR res = run_classifier(&features_signal, &result, false /* debug */);
    ei_printf("run_classifier returned: %d\n", res);

    if (res != 0) return;

    // print the predictions
    ei_printf("Predictions ");
    ei_printf("(DSP: %d ms., Classification: %d ms., Anomaly: %d ms.)",
        result.timing.dsp, result.timing.classification, result.timing.anomaly);
    ei_printf(": \n");
    ei_printf("[");
    for (size_t ix = 0; ix < EI_CLASSIFIER_LABEL_COUNT; ix++) {
        ei_printf("%.5f", result.classification[ix].value);
#if EI_CLASSIFIER_HAS_ANOMALY == 1
        ei_printf(", ");
#else
        if (ix != EI_CLASSIFIER_LABEL_COUNT - 1) {
            ei_printf(", ");
        }
#endif
    }
#if EI_CLASSIFIER_HAS_ANOMALY == 1
    ei_printf("%.3f", result.anomaly);
#endif
    ei_printf("]\n");

    // human-readable predictions
    for (size_t ix = 0; ix < EI_CLASSIFIER_LABEL_COUNT; ix++) {
        ei_printf("    %s: %.5f\n", result.classification[ix].label, result.classification[ix].value);
    }
#if EI_CLASSIFIER_HAS_ANOMALY == 1
    ei_printf("    anomaly score: %.3f\n", result.anomaly);
#endif

    delay(1000);
}

void readPH()
{
  for(int i=0;i<10;i++)
 {
  buf[i]=analogRead(analogInPin);
  delay(10);
 }
 for(int i=0;i<9;i++)
 {
  for(int j=i+1;j<10;j++)
  {
   if(buf[i]>buf[j])
   {
    temp=buf[i];
    buf[i]=buf[j];
    buf[j]=temp;
   }
  }
 }
 avgValue=0;
 for(int i=2;i<8;i++)
 avgValue+=buf[i];
 pHVol=(float)avgValue*3.3/1024/6;
 phValue = -5.70 * pHVol + 21.34;
 //Serial.print("PH = ");
 //Serial.println(phValue);
}

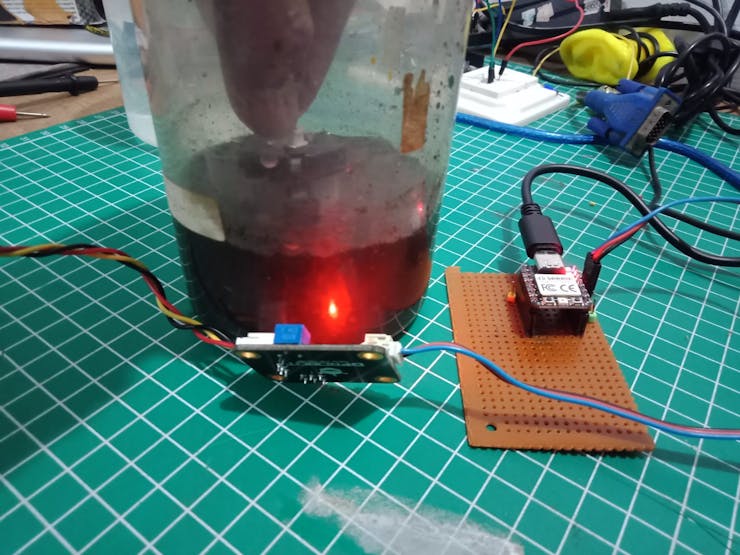

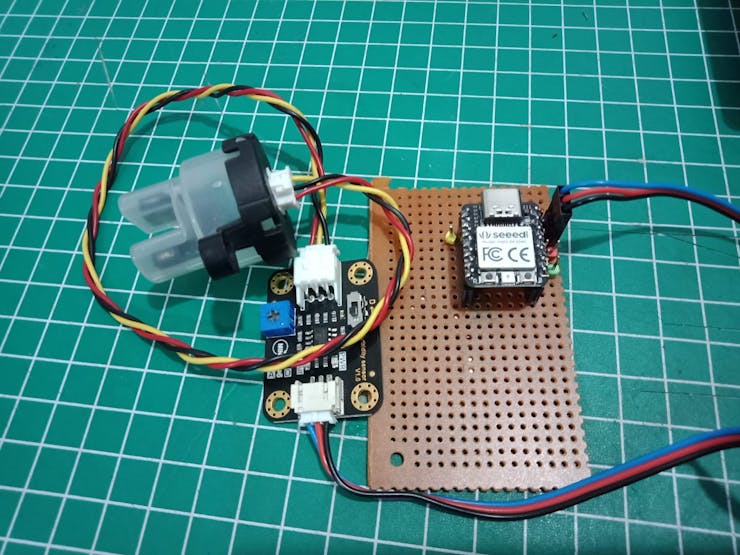

void readTurbidity()
{
  volt = 0;
    for(int i=0; i<800; i++)
    {
        volt += ((float)analogRead(sensorPin)/1023)*5;
    }
    volt = volt/800;
    volt = round_to_dp(volt,2);
    //Serial.print("Turbidity : ");
    //Serial.println(volt);
}

void readSuhu()
{
  sensors.requestTemperatures();
  tempC = sensors.getTempCByIndex(0);
  //Serial.print("Celsius temperature: ");
  //Serial.println(tempC);
}

float round_to_dp( float in_value, int decimal_place )
{
  float multiplier = powf( 10.0f, decimal_place );
  in_value = roundf( in_value * multiplier ) / multiplier;
  return in_value;
}
