Halloween Build - Robosuit!

#This script has three threads, one for the Instagram function, one for the video player and one for the button.
#When the Instagram button is pressed, a blank video is played until the number of likes on the latest post increases.  When an increase is detected, a video of a electrocardiogram heartbeat plays.

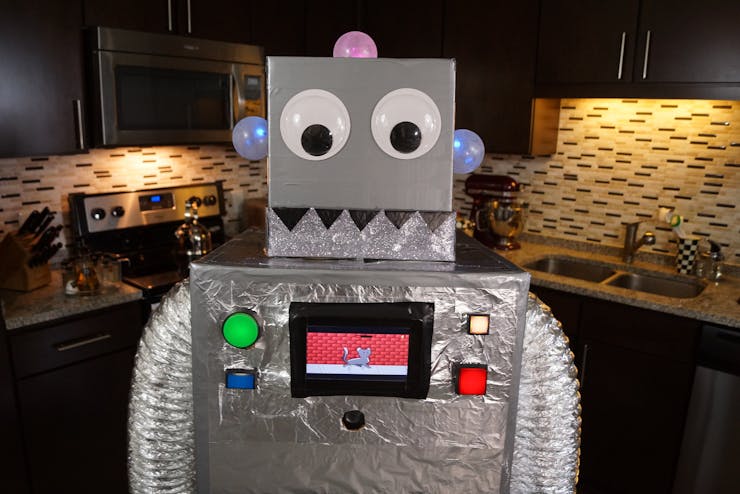

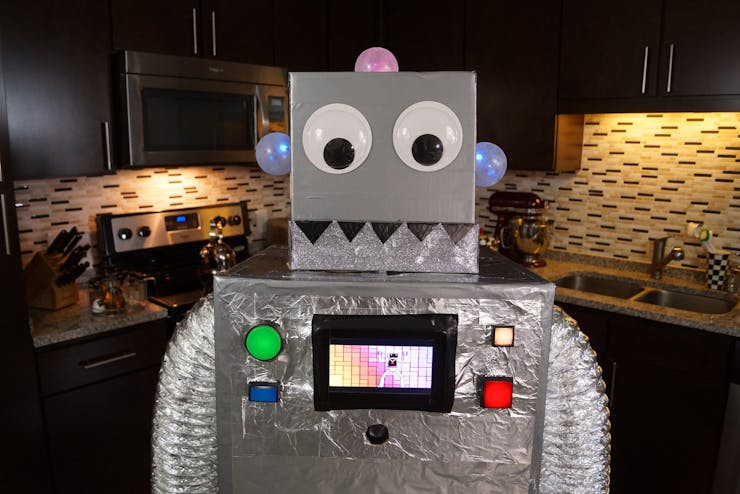

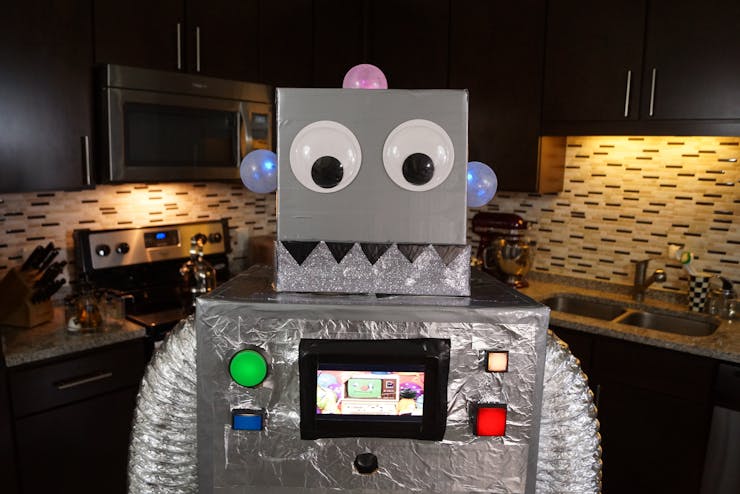

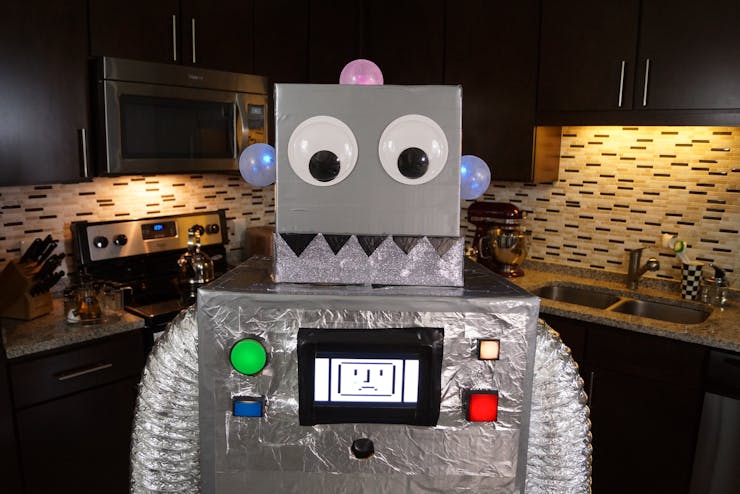

#When the video button is pressed, the script plays a video.  Each press cycles through a predefined set of videos.

import requests
import json
import re
import time
import threading
import os
import sys
import subprocess
import RPi.GPIO as GPIO
from subprocess import Popen

users = ['estefanniegg']

buttonPin = 7
buttonPin2 = 8
GPIO.setmode(GPIO.BOARD)
GPIO.setup(buttonPin, GPIO.IN)
GPIO.setup(buttonPin2, GPIO.IN)

birthdayRobot = ("/home/pi/birthdayRobotMinute.mp4")
heartVideo= ("/home/pi/BeatMinute.mp4")
partyRobotVideo= ("/home/pi/partyRobotMinute.mp4")
chillingVideo = ("/home/pi/chillingRobot.mp4")
sadVideo = ("/home/pi/sadRobot.mp4")

condition = threading.Condition()
videoToPlay = 0

mode = 0
liveVideo = ("/home/pi/beat.mp4")
deadVideo = ("/home/pi/black.mp4")
previous_like_count = 0
current_like_count = 0

def buttonThread():
    global mode
    while True:
        condition.acquire()
        buttonState = GPIO.input(buttonPin)
        buttonState2 = GPIO.input(buttonPin2)

        global videoToPlay
        if buttonState != 0:
            mode = 0
            if videoToPlay < 4:
                videoToPlay = videoToPlay + 1
            else:
                videoToPlay = 0
            condition.notifyAll()
            condition.release()

            time.sleep(0.3)
        elif buttonState2 != 0:
            mode = 1
            condition.notifyAll()
            condition.release()
            time.sleep(0.3)
        else:
            condition.release()

def instagramThread():
    global mode
    global liveVideo
    global deadVideo
    global previous_like_count
    global current_like_count

    while True:
        if mode == 1:
            condition.acquire()
            for user in users:
                page = requests.get('https://www.instagram.com/' + user + '/')
                # finding first post
                text = page.text

                 # find where the posts start
                finder_text_start = ('<script type="text/javascript">'
                                     'window._sharedData = ')
                finder_text_start_len = len(finder_text_start) - 1
                finder_text_end = ';</script>'

                all_data_start = text.find(finder_text_start)
                all_data_end = text.find(finder_text_end, all_data_start + 1)
                json_str = text[(all_data_start + finder_text_start_len + 1) \
                                : all_data_end]
                all_data = json.loads(json_str)

                # this puts posts into a list
                media_by_tag = list(all_data['entry_data']['ProfilePage'][0] \
                                            ['user']['media']['nodes'])

                # first post
                print ('https://www.instagram.com/p/' + media_by_tag[0]['code'] + '/')
                postpage = requests.get('https://www.instagram.com/p/' + media_by_tag[0]['code'] + '/')
                postcontent = postpage.content
                filtered = re.search(r"\"edge_media_preview_like\": {\"count\": \d+", postcontent)
                likecount = re.search('(?<=t\": )\d+', filtered.group(0))
                intlikecount = int(likecount.group(0))

                current_like_count = intlikecount

                os.system('killall omxplayer.bin')

                if current_like_count > previous_like_count:
                    omxc = Popen(['omxplayer', '-b', liveVideo])
                    #time.sleep(4)
                    condition.wait(4)
                else:
                    omxc = Popen(['omxplayer', '-b', deadVideo])
                    #time.sleep(1)
                    condition.wait(1)

                print current_like_count
                previous_like_count = current_like_count
            condition.release()


def videoThread():
    global videoToPlay
    global mode
    while True:
        condition.acquire()
        if mode == 0:
            os.system('killall omxplayer.bin')
            if videoToPlay == 0:
                omxc = Popen(['omxplayer', '-b', birthdayRobot])
            elif videoToPlay == 1:
                omxc = Popen(['omxplayer', '-b', heartVideo])
            elif videoToPlay == 2:
                omxc = Popen(['omxplayer', '-b', partyRobotVideo])
            elif videoToPlay == 3:
                omxc = Popen(['omxplayer', '-b', chillingVideo])
            elif videoToPlay == 4:
                omxc = Popen(['omxplayer', '-b', sadVideo])

            condition.wait(60)
        condition.release()

bt = threading.Thread(target=buttonThread)
vt = threading.Thread(target=videoThread)
igt = threading.Thread(target=instagramThread)
vt.start()
bt.start()
igt.start()

/*This code controls two servos, which opens and closes the robot jaw, depending on the input of a button.  When the the button is held down, the mouth opens.  When the button is released, the mouth closes.*/

#include <Servo.h>

Servo servo1;  // create servo object to control a servo
Servo servo2;

int servoPos = 0;
const int buttonPin_1 = 2;
const int servoPin_1 = 9;
const int servoPin_2 = 10;

void setup()
{
  Serial.begin(9600);
    servo1.attach(servoPin_1);  // attaches the servo to pin
    servo2.attach(servoPin_2);

    pinMode(buttonPin_1, INPUT);
}

int mouthButton = 0;
bool opening = true;
int pos = 0;

void loop()
{
    mouthButton = digitalRead(buttonPin_1);

    // mouth will open as button is held down and close as released
    if (mouthButton == HIGH) // open mouth
    {
        if (servoPos < 45)
        {
            servo1.write(servoPos);
            servo2.write(45 - servoPos);
            // waits for the servo to reach the position
            delay(2);
            servoPos++;
        }
    }
    else
    {
        if (servoPos > 0)
        {
            servo1.write(servoPos);
            servo2.write(45 - servoPos);
            delay(2);
            servoPos--;
        }
    }
}

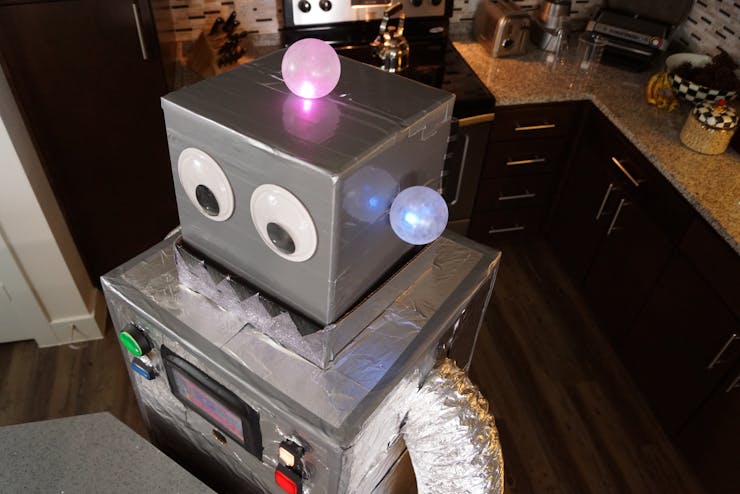

/* I used the third Arduino for the RGB LEDs, instead of combining them with the servo Arduino, because the multiple analogWrites to change the color of the LEDs caused timing conflicts with the servos.*/

const int buttonPin = 12;     // the number of the pushbutton pin
const int r1 = 3;     // the number of the pushbutton pin
const int g1 = 9;     // the number of the pushbutton pin
const int b1 = 10;     // the number of the pushbutton pin

//const int ledPin =  13;      // the number of the LED pin

void setup()
{
  Serial.begin(9600);

    pinMode(buttonPin, INPUT);

    pinMode(r1, OUTPUT);
    pinMode(g1, OUTPUT);
    pinMode(b1, OUTPUT);
    pinMode(ledPin, OUTPUT);
}

int ledButton = 0;
int ledState = 0;
bool opening = true;

void loop()
{
  ledButton = digitalRead(buttonPin);
// light button pressed
  if (ledButton == HIGH)
  {
        if (ledState == 0)
        {
          analogWrite(r1, 500);
          analogWrite(g1, 10);
          analogWrite(b1, 30);
          ledState = 1;
        }
        else if (ledState == 1)
        {
          analogWrite(r1, 0);
          analogWrite(g1, 500);
          analogWrite(b1, 0);
          ledState = 2;
        }
        else if (ledState == 2)
        {
          analogWrite(r1, 0);
          analogWrite(g1, 0);
          analogWrite(b1, 30);
          ledState = 0;
        }
// wait for button to release/avoid bounce

        delay(100);
    }
}

/*I used most of the adavoice_face code as a base for the voice modulation and sound playback.  I modified the code to work with my button, and playback  random sounds.  This maxed out the capabilities of a single Arduino, so the other functions had to be on a different device. */

#include <WaveHC.h>
#include <WaveUtil.h>

SdReader  card;  // This object holds the information for the card
FatVolume vol;   // This holds the information for the partition on the card
FatReader root;  // This holds the information for the volumes root directory
FatReader file;  // This object represent the WAV file for a pi digit or period
WaveHC    wave;  // This is the only wave (audio) object, -- we only play one at a time
#define error(msg) error_P(PSTR(msg))  // Macro allows error messages in flash memory

#define ADC_CHANNEL 0 // Microphone on Analog pin 0
#define BUTTON A1
#define DEBOUNCE 10  // Number of iterations before button 'takes'


// Wave shield DAC: digital pins 2, 3, 4, 5
#define DAC_CS_PORT    PORTD
#define DAC_CS         PORTD2
#define DAC_CLK_PORT   PORTD
#define DAC_CLK        PORTD3
#define DAC_DI_PORT    PORTD
#define DAC_DI         PORTD4
#define DAC_LATCH_PORT PORTD
#define DAC_LATCH      PORTD5

uint16_t in = 0, out = 0, xf = 0, nSamples; // Audio sample counters
uint8_t  adc_save;                          // Default ADC mode

// WaveHC didn't declare it's working buffers private or static,
// so we can be sneaky and borrow the same RAM for audio sampling!
extern uint8_t
  buffer1[PLAYBUFFLEN],                   // Audio sample LSB
  buffer2[PLAYBUFFLEN];                   // Audio sample MSB
#define XFADE     16                      // Number of samples for cross-fade
#define MAX_SAMPLES (PLAYBUFFLEN - XFADE) // Remaining available audio samples

// Used for averaging all the audio samples currently in the buffer
uint8_t       oldsum = 0;
unsigned long newsum = 0L;

uint8_t
  prev   = 255,                // Previous key reading (or 255 if none)
  count  = 0;                  // Counter for button debouncing
#define DEBOUNCE 10            // Number of iterations before button 'takes'

const char *sound[] = { "breath" , "destroy", "zilla" , "burp" , "squirrel", "startup", "Ha" };

int buttonState = 0;

//////////////////////////////////// SETUP

void setup() {
  uint8_t i;

  Serial.begin(9600);

  // Seed random number generator from an unused analog input:
  randomSeed(analogRead(A2));

  // The WaveHC library normally initializes the DAC pins...but only after
  // an SD card is detected and a valid file is passed.  Need to init the
  // pins manually here so that voice FX works even without a card.
  pinMode(2, OUTPUT);    // Chip select
  pinMode(3, OUTPUT);    // Serial clock
  pinMode(4, OUTPUT);    // Serial data
  pinMode(5, OUTPUT);    // Latch
  digitalWrite(2, HIGH); // Set chip select high

  // Init SD library, show root directory.  Note that errors are displayed
  // but NOT regarded as fatal -- the program will continue with voice FX!
  if(!card.init())             SerialPrint_P("Card init. failed!");
  else if(!vol.init(card))     SerialPrint_P("No partition!");
  else if(!root.openRoot(vol)) SerialPrint_P("Couldn't open dir");
  else {
    PgmPrintln("Files found:");
    root.ls();
  }

  // Optional, but may make sampling and playback a little smoother:
  // Disable Timer0 interrupt.  This means delay(), millis() etc. won't
  // work.  Comment this out if you really, really need those functions.
  TIMSK0 = 0;

  // Set up Analog-to-Digital converter:
  analogReference(EXTERNAL); // 3.3V to AREF
  adc_save = ADCSRA;         // Save ADC setting for restore later

  pinMode(BUTTON, INPUT);
    // Whew! We got past the tough parts.
  putstring_nl("Files found (* = fragmented):");

  root.ls(LS_R | LS_FLAG_FRAGMENTED);

  startPitchShift();     // and start the pitch-shift mode by default.
}

//////////////////////////////////// LOOP

void loop() {

 int buttonInput = digitalRead(BUTTON);
 int randomNumber = random(0, 7);

 if(buttonInput == HIGH)
 {
   if(wave.isplaying)
   {
     wave.stop();
   }
   else
   {
       stopPitchShift();
   }
   playfile(randomNumber);
 }

  if(!wave.isplaying && !(TIMSK2 & _BV(TOIE2)))
  {
    startPitchShift();
        PgmPrintln("microphone");
  }
  delay(20); // ~50 FPS
}

//////////////////////////////////// HELPERS

// Open and start playing a WAV file
void playfile(int idx) {
  char filename[13];

  (void)sprintf(filename,"%s.wav", sound[idx]);
//  Serial.print("File: ");
//  Serial.println(filename);

  if(!file.open(root, filename)) {
    PgmPrint("Couldn't open file ");
    Serial.print(filename);
    return;
  }
  if(!wave.create(file)) {
    PgmPrintln("Not a valid WAV");
    return;
  }
  wave.play();
}

//////////////////////////////////// PITCH-SHIFT CODE

void startPitchShift() {

  // Read analog pitch setting before starting audio sampling:
  int pitch = 100;
  //Serial.print("Pitch: ");
  //Serial.println(pitch);

  // Right now the sketch just uses a fixed sound buffer length of
  // 128 samples.  It may be the case that the buffer length should
  // vary with pitch for better results...further experimentation
  // is required here.
  nSamples = 128;
  //nSamples = F_CPU / 3200 / OCR2A; // ???
  //if(nSamples > MAX_SAMPLES)      nSamples = MAX_SAMPLES;
  //else if(nSamples < (XFADE * 2)) nSamples = XFADE * 2;

  memset(buffer1, 0, nSamples + XFADE); // Clear sample buffers
  memset(buffer2, 2, nSamples + XFADE); // (set all samples to 512)

  // WaveHC library already defines a Timer1 interrupt handler.  Since we
  // want to use the stock library and not require a special fork, Timer2
  // is used for a sample-playing interrupt here.  As it's only an 8-bit
  // timer, a sizeable prescaler is used (32:1) to generate intervals
  // spanning the desired range (~4.8 KHz to ~19 KHz, or +/- 1 octave
  // from the sampling frequency).  This does limit the available number
  // of speed 'steps' in between (about 79 total), but seems enough.
  TCCR2A = _BV(WGM21) | _BV(WGM20); // Mode 7 (fast PWM), OC2 disconnected
  TCCR2B = _BV(WGM22) | _BV(CS21) | _BV(CS20);  // 32:1 prescale
  OCR2A  = map(pitch, 0, 1023,
    F_CPU / 32 / (9615 / 2),  // Lowest pitch  = -1 octave
    F_CPU / 32 / (9615 * 2)); // Highest pitch = +1 octave

  // Start up ADC in free-run mode for audio sampling:
  DIDR0 |= _BV(ADC0D);  // Disable digital input buffer on ADC0
  ADMUX  = ADC_CHANNEL; // Channel sel, right-adj, AREF to 3.3V regulator
  ADCSRB = 0;           // Free-run mode
  ADCSRA = _BV(ADEN) |  // Enable ADC
    _BV(ADSC)  |        // Start conversions
    _BV(ADATE) |        // Auto-trigger enable
    _BV(ADIE)  |        // Interrupt enable
    _BV(ADPS2) |        // 128:1 prescale...
    _BV(ADPS1) |        //  ...yields 125 KHz ADC clock...
    _BV(ADPS0);         //  ...13 cycles/conversion = ~9615 Hz

  TIMSK2 |= _BV(TOIE2); // Enable Timer2 overflow interrupt
  sei();                // Enable interrupts
}

void stopPitchShift() {
  ADCSRA = adc_save; // Disable ADC interrupt and allow normal use
  TIMSK2 = 0;        // Disable Timer2 Interrupt
}

ISR(ADC_vect, ISR_BLOCK) { // ADC conversion complete

  // Save old sample from 'in' position to xfade buffer:
  buffer1[nSamples + xf] = buffer1[in];
  buffer2[nSamples + xf] = buffer2[in];
  if(++xf >= XFADE) xf = 0;

  // Store new value in sample buffers:
  buffer1[in] = ADCL; // MUST read ADCL first!
  buffer2[in] = ADCH;

  newsum += abs((((int)buffer2[in] << 8) | buffer1[in]) - 512);

  if(++in >= nSamples) {
    in     = 0;
    oldsum = (uint8_t)((newsum / nSamples) >> 1); // 0-255
    newsum = 0L;
  }
}

ISR(TIMER2_OVF_vect) { // Playback interrupt
  uint16_t s;
  uint8_t  w, inv, hi, lo, bit;
  int      o2, i2, pos;

  // Cross fade around circular buffer 'seam'.
  if((o2 = (int)out) == (i2 = (int)in)) {
    // Sample positions coincide.  Use cross-fade buffer data directly.
    pos = nSamples + xf;
    hi = (buffer2[pos] << 2) | (buffer1[pos] >> 6); // Expand 10-bit data
    lo = (buffer1[pos] << 2) |  buffer2[pos];       // to 12 bits
  } if((o2 < i2) && (o2 > (i2 - XFADE))) {
    // Output sample is close to end of input samples.  Cross-fade to
    // avoid click.  The shift operations here assume that XFADE is 16;
    // will need adjustment if that changes.
    w   = in - out;  // Weight of sample (1-n)
    inv = XFADE - w; // Weight of xfade
    pos = nSamples + ((inv + xf) % XFADE);
    s   = ((buffer2[out] << 8) | buffer1[out]) * w +
          ((buffer2[pos] << 8) | buffer1[pos]) * inv;
    hi = s >> 10; // Shift 14 bit result
    lo = s >> 2;  // down to 12 bits
  } else if (o2 > (i2 + nSamples - XFADE)) {
    // More cross-fade condition
    w   = in + nSamples - out;
    inv = XFADE - w;
    pos = nSamples + ((inv + xf) % XFADE);
    s   = ((buffer2[out] << 8) | buffer1[out]) * w +
          ((buffer2[pos] << 8) | buffer1[pos]) * inv;
    hi = s >> 10; // Shift 14 bit result
    lo = s >> 2;  // down to 12 bits
  } else {
    // Input and output counters don't coincide -- just use sample directly.
    hi = (buffer2[out] << 2) | (buffer1[out] >> 6); // Expand 10-bit data
    lo = (buffer1[out] << 2) |  buffer2[out];       // to 12 bits
  }

  // Might be possible to tweak 'hi' and 'lo' at this point to achieve
  // different voice modulations -- robot effect, etc.?

  DAC_CS_PORT &= ~_BV(DAC_CS); // Select DAC
  // Clock out 4 bits DAC config (not in loop because it's constant)
  DAC_DI_PORT  &= ~_BV(DAC_DI); // 0 = Select DAC A, unbuffered
  DAC_CLK_PORT |=  _BV(DAC_CLK); DAC_CLK_PORT &= ~_BV(DAC_CLK);
  DAC_CLK_PORT |=  _BV(DAC_CLK); DAC_CLK_PORT &= ~_BV(DAC_CLK);
  DAC_DI_PORT  |=  _BV(DAC_DI); // 1X gain, enable = 1
  DAC_CLK_PORT |=  _BV(DAC_CLK); DAC_CLK_PORT &= ~_BV(DAC_CLK);
  DAC_CLK_PORT |=  _BV(DAC_CLK); DAC_CLK_PORT &= ~_BV(DAC_CLK);
  for(bit=0x08; bit; bit>>=1) { // Clock out first 4 bits of data
    if(hi & bit) DAC_DI_PORT |=  _BV(DAC_DI);
    else         DAC_DI_PORT &= ~_BV(DAC_DI);
    DAC_CLK_PORT |=  _BV(DAC_CLK); DAC_CLK_PORT &= ~_BV(DAC_CLK);
  }
  for(bit=0x80; bit; bit>>=1) { // Clock out last 8 bits of data
    if(lo & bit) DAC_DI_PORT |=  _BV(DAC_DI);
    else         DAC_DI_PORT &= ~_BV(DAC_DI);
    DAC_CLK_PORT |=  _BV(DAC_CLK); DAC_CLK_PORT &= ~_BV(DAC_CLK);
  }
  DAC_CS_PORT    |=  _BV(DAC_CS);    // Unselect DAC

  if(++out >= nSamples) out = 0;
}
