LED Controlled by 3D Gesture Sensor

0 5726 Medium

I tried controlling the display of flexible LED matrix with 3D gesture sensor.

LED Controlled by 3D Gesture Sensor

Things used in this project



Hardware components

HARDWARE LIST
1 Arduino UNO
1 DFRobot Flexible 8x8 RGB LED Matrix
1 DFRobot 3D Gesture Sensor

Software apps and online services



Arduino IDE

Story



I tried controlling the display of flexible LED matrix with 3D gesture sensor.

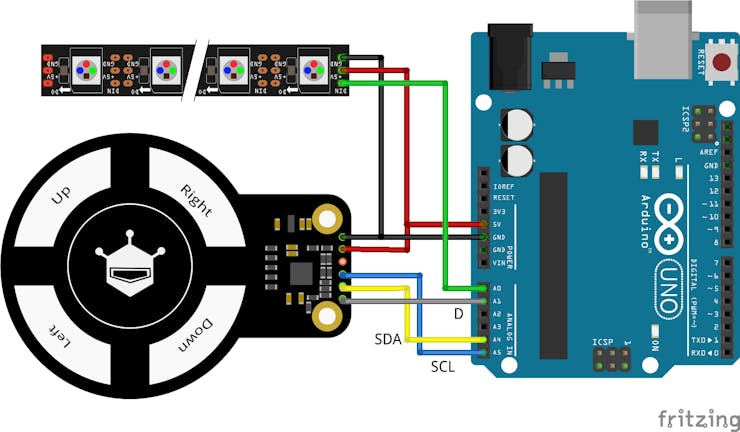

Configuration





Display the eye on the LED matrix and move with the 3D gesture sensor.







Flexible 8x8 RGB LED Matrix



It has a 8x8 full color LED (NeoPixel) and soft by flexible board. The Arduino library for Neopixels is located in the following.



https://github.com/adafruit/Adafruit_NeoPixel



Please refer below for product details.



https://www.dfrobot.com/wiki/index.php/Gravity:_Flexible_8x8_RGB_LED_Matrix_SKU:_DFR0461







3D Gesture Sensor



Five electrodes are arranged in the up, down, left, right and middle. Gesture is sensed by changes in electrostatic capacitance of electrodes due to hand approach.



The Arduino library for the 3D Gesture Sensor is located in the following.



https://github.com/DFRobot/DFRobot_Gesture



This gesture sensor detects clockwise/counterclockwise rotation and movement directions (up, down, left, right) using program example "_3D_Gesture_Test.ino".



Please refer below for product details.



https://www.dfrobot.com/wiki/index.php/3D_Gesture_Sensor_Mini_SKU:_SEN0202







Arduino Programming



Display the eyeball on the LED matrix, move the eyes right and left with the left and right sensing of the gesture sensor, open and close the eyelids by vertical sensing. The pupil faces the front in clockwise or counterclockwise sensing.



LED Array:





Code:

CODE
#include <Adafruit_NeoPixel.h>
#include <DFRobot_Gesture.h>
#include <Wire.h>
int sensePin= A1;
unsigned char cmd;
DFRobot_Gesture myGesture;
#define DIN A0
Adafruit_NeoPixel led = Adafruit_NeoPixel(64, DIN, NEO_GRB + NEO_KHZ800);
int LR = 5;
int eyelid = 0;
int whiteNum = 52;
int blackNum = 20;
int pupilNum = 12;
//white eye
int whiteLED[52] = { 2,  3,  4,  5,  9, 10, 11, 12, 13, 14, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31,
                         32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 49, 50, 51, 52, 53, 54, 58, 59, 60, 61};
//black eye
int blackLED[11][20] = {{50, 51, 52, 53, 58, 61, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64},
                             {42, 43, 44, 45, 49, 50, 53, 54, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64},
                             {34, 35, 36, 37, 41, 42, 45, 46, 49, 54, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64},
                             {26, 27, 28, 29, 33, 34, 37, 38, 41, 46, 54, 49, 58, 61, 61, 64, 64, 64, 64, 64},
                             {18, 19, 20, 21, 25, 26, 29, 30, 33, 38, 41, 46, 49, 50, 53, 54, 58, 59, 60, 61},
                             {10, 11, 12, 13, 17, 18, 21, 22, 25, 30, 33, 38, 41, 42, 45, 46, 50, 51, 52, 53},
                             { 2,  3,  4,  5,  9, 10, 13, 14, 17, 22, 25, 30, 33, 34, 37, 38, 42, 43, 44, 45},
                             { 2,  5,  9, 14, 17, 22, 25, 26, 29, 30, 34, 35, 36, 37, 64, 64, 64, 64, 64, 64},
                             { 9, 14, 17, 18, 21, 22, 26, 27, 28, 29, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64},
                             { 9, 10, 13, 14, 18, 19, 20, 21, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64},
                             { 2,  5, 10, 11, 12, 13, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64}};
//pupil
int pupilLED[11][12] = {{59, 60, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64},
                             {51, 52, 58, 59, 60, 61, 64, 64, 64, 64, 64, 64},
                             {43, 44, 50, 51, 52, 53, 58, 59, 60, 61, 64, 64},
                             {35, 36, 42, 43, 44, 45, 50, 51, 52, 53, 59, 60},
                             {27, 28, 34, 35, 36, 37, 42, 43, 44, 45, 51, 52},
                             {19, 20, 26, 27, 28, 29, 34, 35, 36, 37, 43, 44},
                             {11, 12, 18, 19, 20, 21, 26, 27, 28, 29, 35, 36},
                             { 3,  4, 10, 11, 12, 13, 18, 19, 20, 21, 27, 28},
                             { 2,  3,  4,  5, 10, 11, 12, 13, 19, 20, 64, 64},
                             { 2,  3,  4,  5, 11, 12, 64, 64, 64, 64, 64, 64},
                             { 3,  4, 64, 64, 64, 64, 64, 64, 64, 64, 64, 64}};
//eyelid
int eyelidNum[8] = {0,4,8,14,20,28,36,44};
int eyelidLED[56] = {23, 24, 39, 40, 22, 25, 38, 41,  9, 21, 26, 37, 42, 54, 10, 20, 27, 36, 43, 53,  5, 11,
                    19, 28, 35, 44, 52, 58,  4, 12, 18, 29, 34, 45, 51, 59,  3, 13, 17, 30, 33, 46, 50, 60};
void setup(){
 Wire.begin();        // join i2c bus (address optional for master)
 Serial.begin(115200);  // start serial for output
 pinMode(sensePin, INPUT);
 led.begin();
 led.setBrightness(100); //LED brightness 0-255
 blink(LR, eyelid);
}
void loop(){
 if(digitalRead(sensePin)==0){
   myGesture.I2C1_MasterRead(md.buf,26,0x42); //The address is:0x42
   cmd = myGesture.mgcProcMsg();     //process the message
   if(cmd != GI_NOGESTURE ){
     switch(cmd){
       case GI_FLICK_R:
         Serial.println("RIGHT");
         //Move the eye right
         for(int i = LR; i <= 10; i++){
           blink(i, eyelid);
           delay(100);
         }
         LR = 10;
         break;
       case GI_FLICK_L:
         Serial.println("LEFT");
         //Move the eye left
         for(int i = LR; i >= 0; i--){
           blink(i, eyelid);
           delay(100);
         }
         LR = 0;
         break;
       case GI_FLICK_D:
         Serial.println("DOWN");
         //Eyelid close
         for(int i = eyelid; eyelid <= 8; eyelid++){
           blink(LR, eyelid);
           delay(100);
         }
         eyelid = 8;
         break;
       case GI_FLICK_U:
         Serial.println("UP");
         //Eyelid open
         for(int i = eyelid; eyelid >= 0; eyelid--){
           blink(LR, eyelid);
           delay(100);
         }
         eyelid = 0;
         break;
       case GI_AIRWHEEL_CW://Clockwise in circles
         Serial.println("CW");
         //Return eye to the front
         Return();
         break;
       case GI_AIRWHEEL_CCW://Counterclockwise circles
         Serial.println("CCW");
         //Return eye to the front
         Return();
         break;
       default: break;
       }
     }
   }
}
void blink( int LR, int eyelid) {
 if (eyelid != 8){
   //white eye
   for(uint16_t i=0; i<whiteNum; i++) {
     led.setPixelColor(whiteLED[i], led.Color(66, 66, 66));
   }
   //black eye
   for(uint16_t i=0; i<blackNum; i++) {
     led.setPixelColor(blackLED[LR][i], led.Color(0, 177, 55));
   }
   //pupil
   for(uint16_t i=0; i<pupilNum; i++) {
     led.setPixelColor(pupilLED[LR][i], led.Color(0, 0, 66));
   }
   //eyelid
   for(int i=0; i < eyelidNum[eyelid]; i++) {
     led.setPixelColor(eyelidLED[i], 0);
   }
 } else if (eyelid == 8){
   led.clear();
 }
 led.show();
}
void Return() {
 if(LR == 0){
   for(int i = LR; i <= 5; i++){
     blink(i, eyelid);
     delay(100);
   }
 }
 if(LR == 10){
   for(int i = LR; i >= 5; i--){
     blink(i, eyelid);
     delay(100);
   }
 }
 LR = 5;
}

The article was first published in hackster, November 1, 2017

cr: https://www.hackster.io/H0meMadeGarbage/led-controlled-by-3d-gesture-sensor-60ab8a

author: HomeMadeGarbage
