LoRa Messenger for Two Devices for Distances Up to 8km

Connect the project to your laptop or phone and then chat between the devices without internet or SMS using just LoRa.


LoRa Messenger for Two Devices for Distances Up to 8km


1 DFRobot FireBeetle ESP8266 IOT Microcontroller
1 RYLR896 LoRa module
1 PCBWay Custom PCB


Software apps and online services

 - Arduino Code





Hey, what's up guys? Akarsh here from CETech.

Today we are going to make a project which can be connected to your smartphone or any computer and it makes that device LoRa-enabled messenger. Now when that will be done you would be able to message any other device using the same LoRa messenger. This all is done without presence of 4G/LTE/3G/GSM/WiFi/SMS.



Lets start with the project now


Step 1: Parts

To make this you will need an ESP8266 board, I suggest to use a NodeMCU style board, I used Firebeetle board from DFRobot as it has on board battery charging and monitoring solution.

For the LoRa purpose I used a RYLR896. I highly suggest this module as it is very easy to use over UART using AT commands.

I would also recommend using a PCB to make the project so that adding battery/OLED display/switch/esp8266 doesnt remain difficult. You can order your PCBs from PCBWAY as they offer 10 PCBs for just 5$. Check out their online Gerber viewer function.

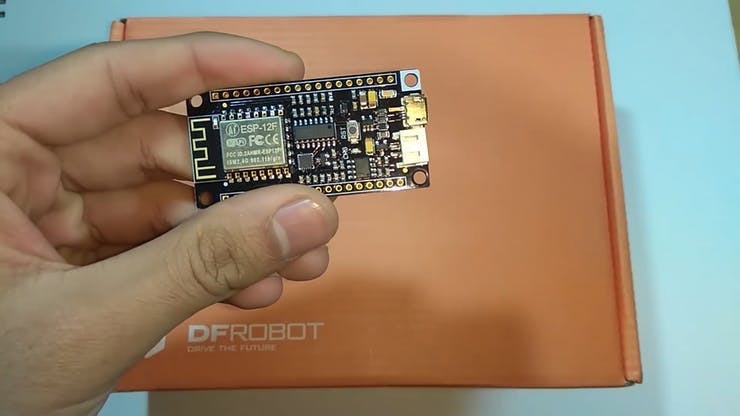

The Firebeetle board ESP8266



Step 2: Understanding the Reyax Module and how to use it. (OPTIONAL : you may skip reading this step if not interested about the working)

1. The LoRa module we have is a UART module which is configured using AT commands.



2. The module houses a STM32 MCU which does all the talking to the SPI LoRa module onboard the RYLR896.



3. The commands in the picture are basic ones you may refer to this document for more: REYAX-Lora-AT-COMMAND-GUIDE

4. I still strongly recommend you to go through my YouTube video where I explain this properly.




Step 3: Connections of the modules



1. Both the modules will be connected the same way as in the image above.

2. When both the modules are connected, you may program the modules one by one and then test the project.



Step 4: Download and set up the Arduino IDE

Download the Arduino IDE from here

1. Install the Arduino IDE and open it.

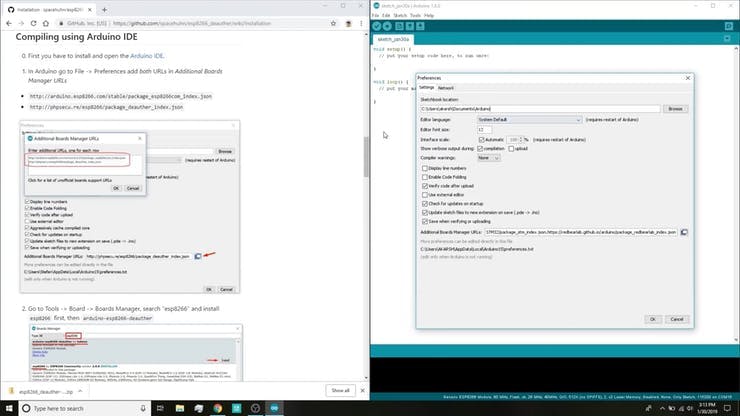

2. Go to File > Preferences



3. Add http://arduino.esp8266.com/stable/package_esp8266com_index.jsonto the Additional Boards Manager URLs.

4. Go to Tools > Board > Boards Manager

5. Search for esp8266 and then install the board.

6. Restart the IDE.


Step 5: Coding the project

1. Download the repository: https://github.com/akarsh98/LRM



2. Extract the downloaded folder and open Stage1.ino file in arduino IDE.

3. Navigate to Tools > Board. Select the appropriate board that you are using NodeMCU(12E) works in most of the cases.

4. Select the correct comm. port by going to Tools > Port.

5. Hit the upload button.

6. When the tab says Done Uploading you are ready to use the device.



After uploading open the serial monitor to view the following details


Step 6: Playing with the device

1. Connect the devices using USB cables to two different devices on which you need to do the messaging from. In my case I connected one module to my laptop and the other one to my phone using OTG cable.

2. Move over to the serial monitor and start texting instantly!



3. CONGO! the device is working as expected.



Circuit Diagram
