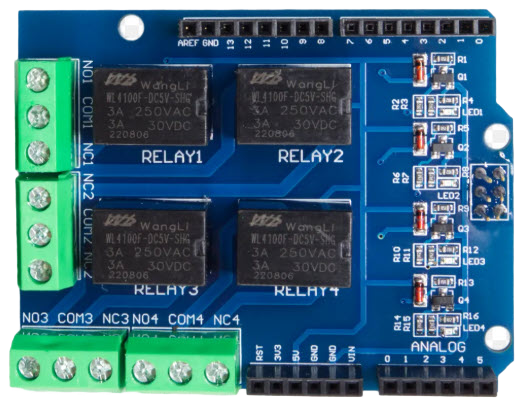

In this tutorial we will learn how simple it is to use Arduino 4 channel Relay Shield to control a 12V light bulb.
In first example the light bulb will just blink and in the second example we will turn On or Off the light bulb using a button and in a third example using a remote control.
Watch the video!

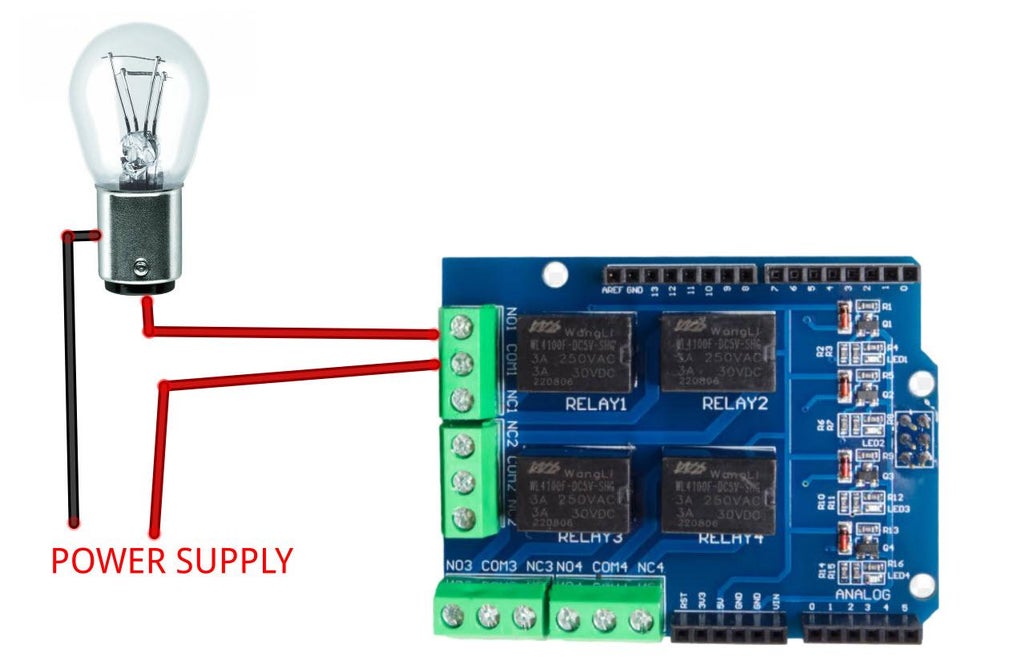

Example: Light Bulb Blinking

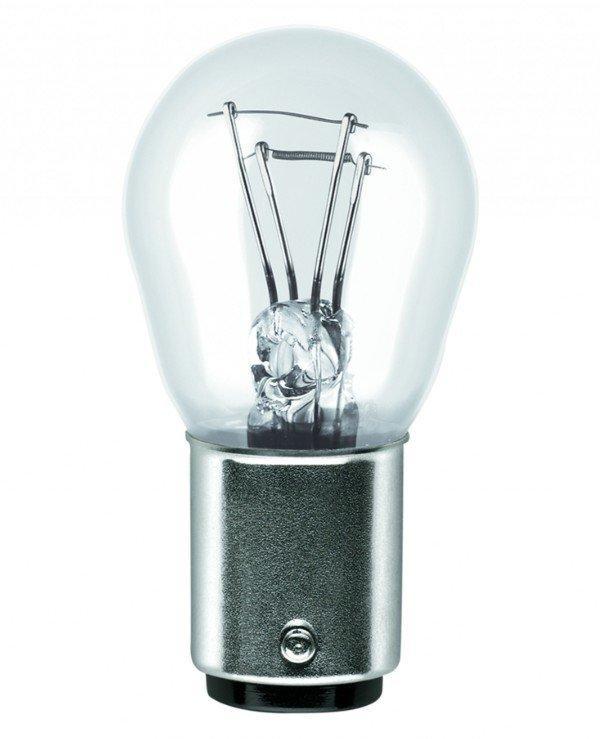

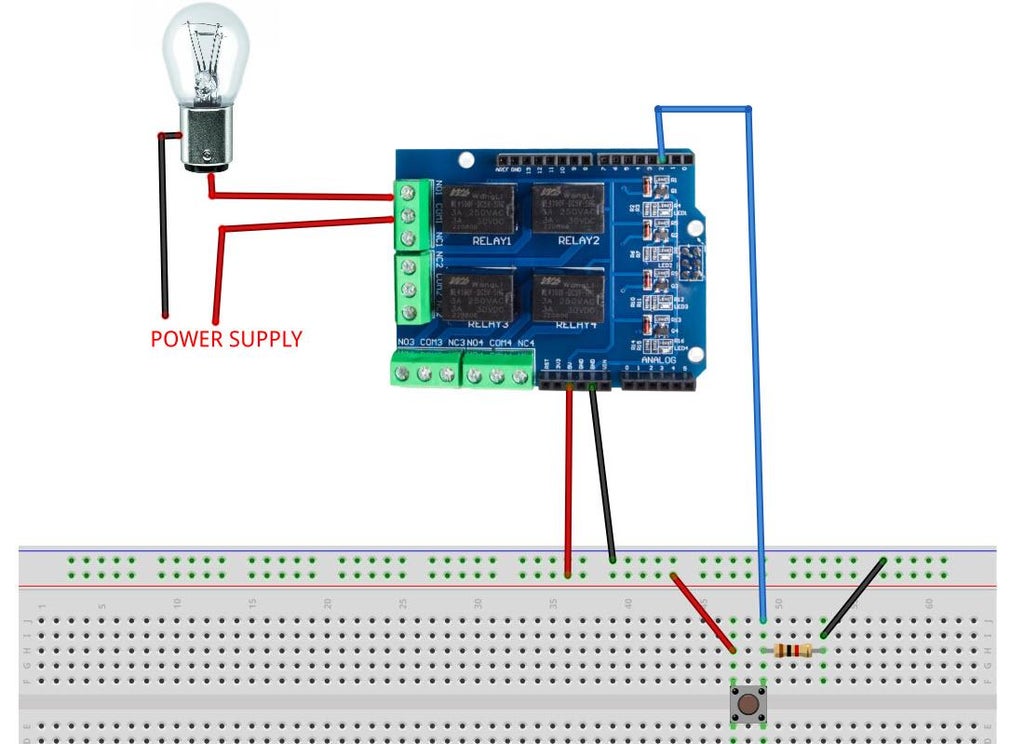

Connect power supply 12V (-) to the Light Bulb negative side (-)Connect power supply 12V (+) to the relay shield - Relay1 pin (COM1)Connect relay shield - Relay1 pin (NO1) to Light Bulb negative side (+)Example: Button activates the relay

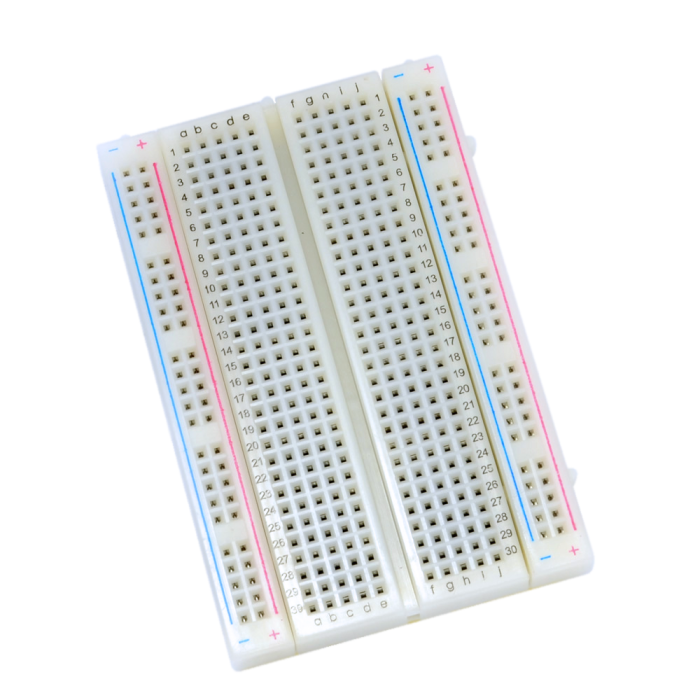

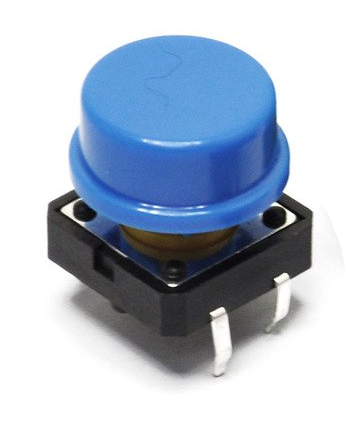

Connect Arduino Digital pin [2] to button on the breadboard and to the Resistor1Connect other side of the resistor1 to the breadboard pin [GND]Connect Other pin of the button to the breadboard positive pin [5V]Connect Arduino pin [5V] to breadboard positive pin [Red line]Connect Arduino pin [GND] to breadboard negative pin [Black line]Example: Remote Control activates the relay

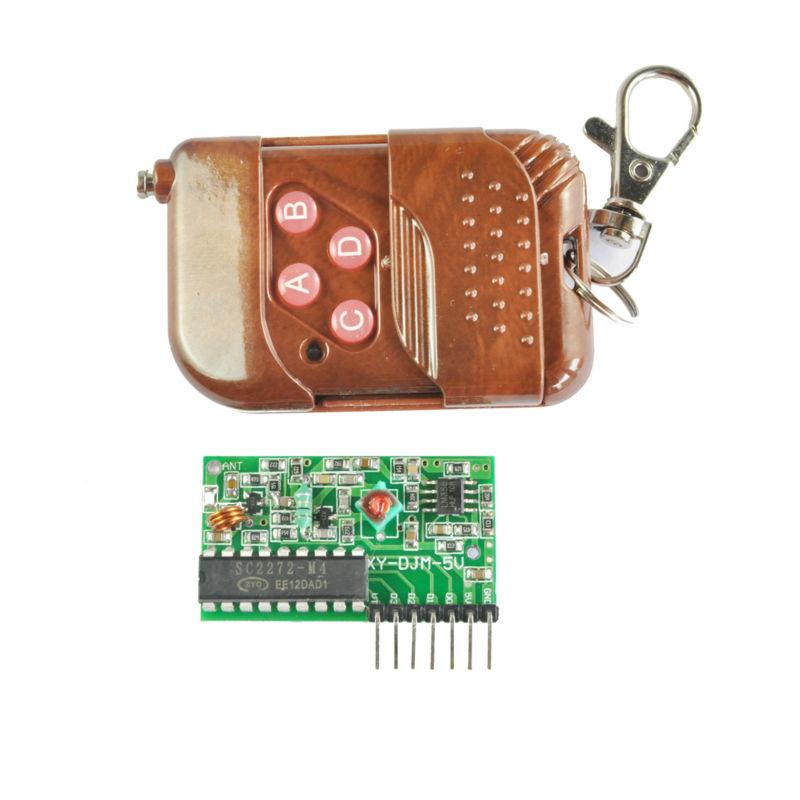

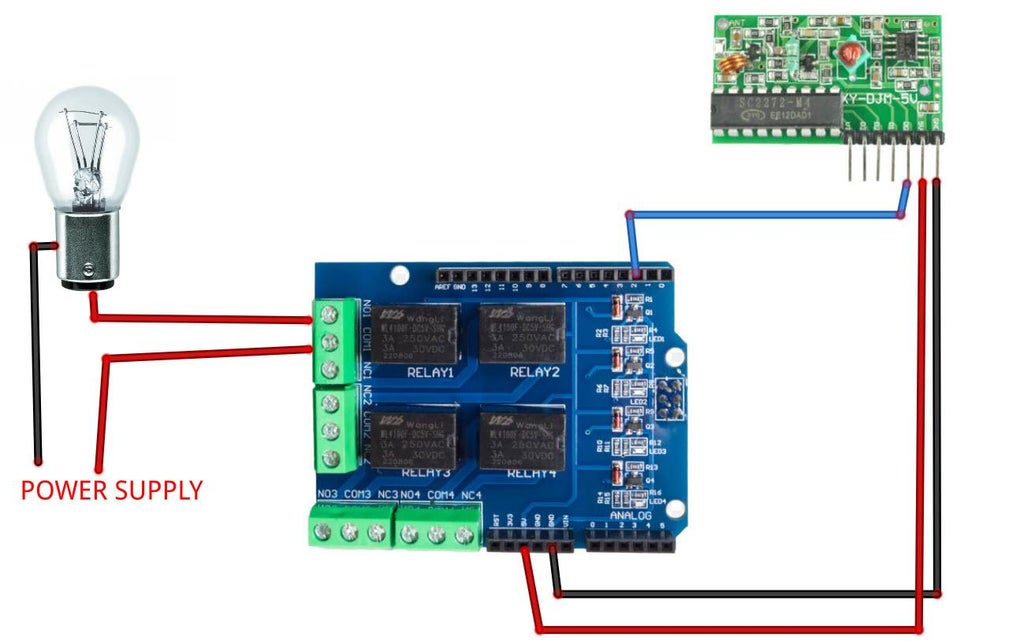

Connect Remote pin [VCC] to Arduino relay shield pin [5V]Connect Remote pin [GND] to Arduino relay shield pin [GND]Connect Remote pin [D0] to Arduino relay shield digital pin [2]

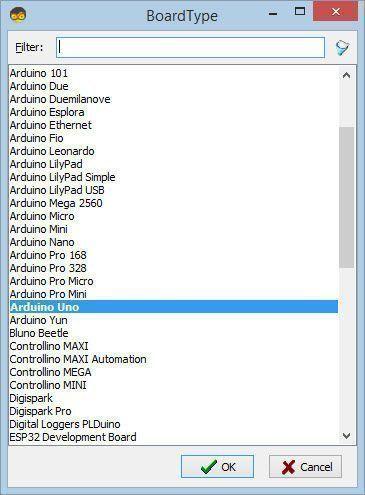

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

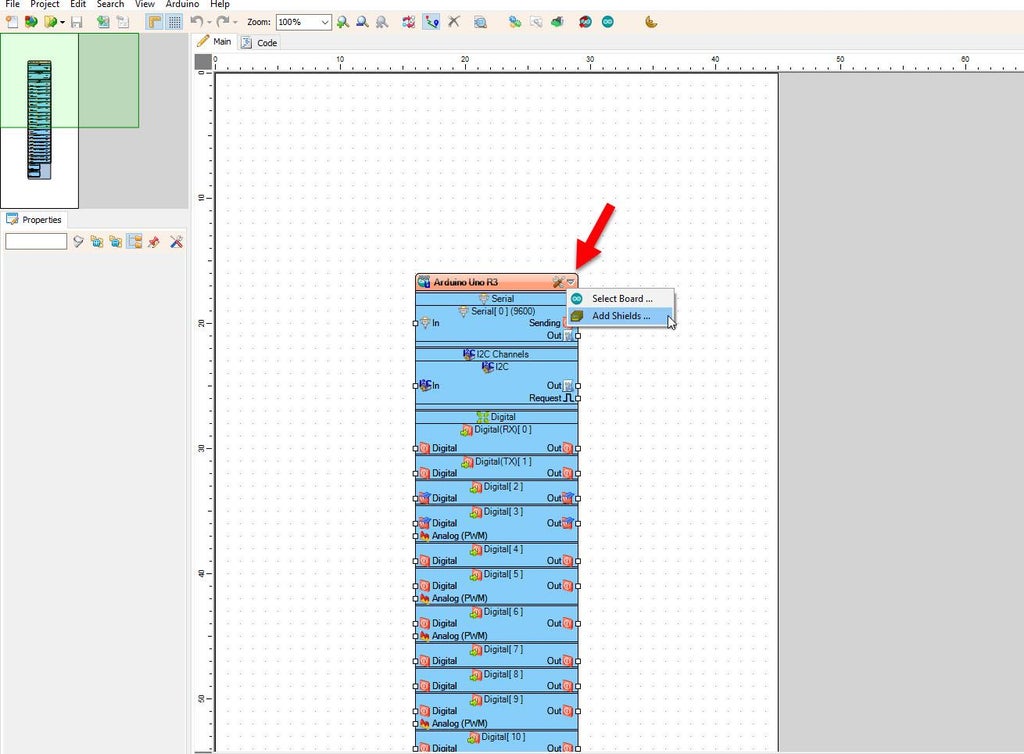

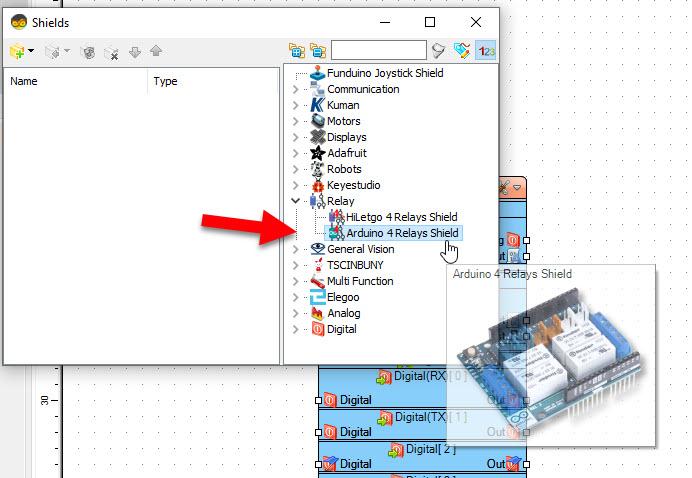

In Visuino click on the board top right button and select "Add Shields".In the "Shields" window expand "Relay" and select "Arduino 4 Relays Shield"Close the "Shields" window

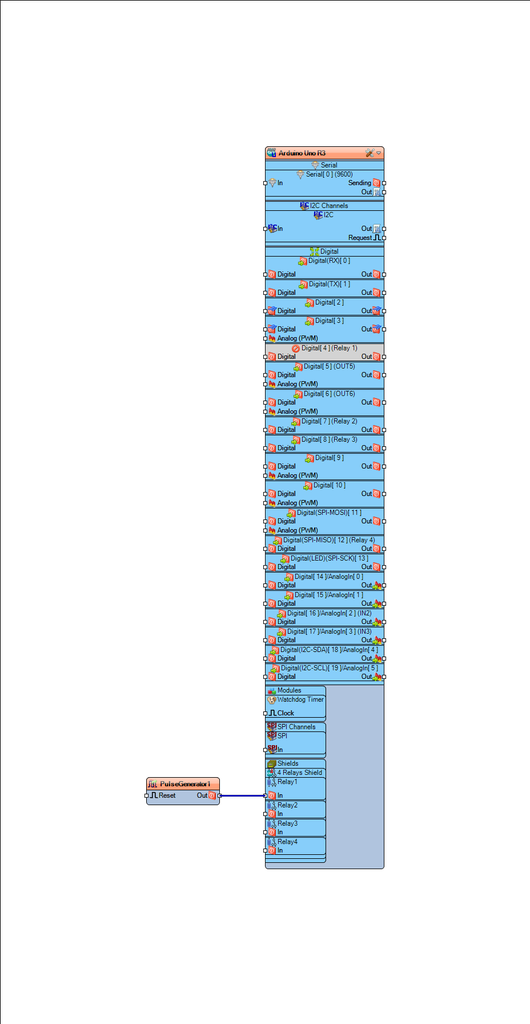

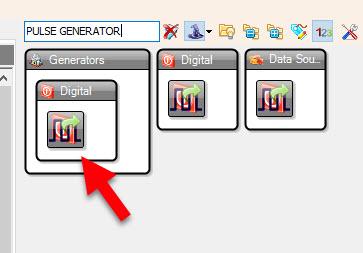

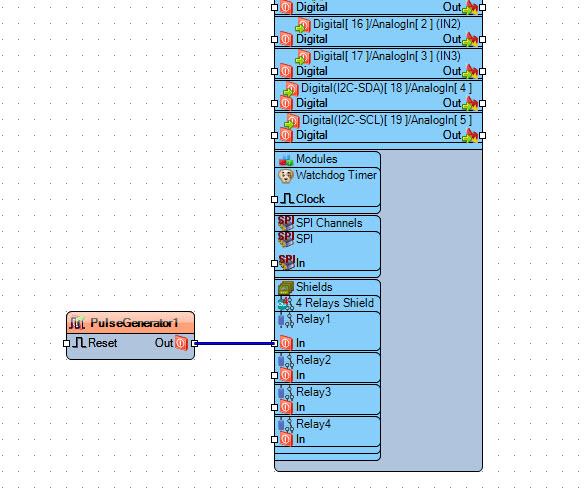

For the first Light bulb blinking example we will add "Pulse generator" component and connect its pin [Out] to Arduino > Relay1 pin [In]
Upload the project to the Arduino board

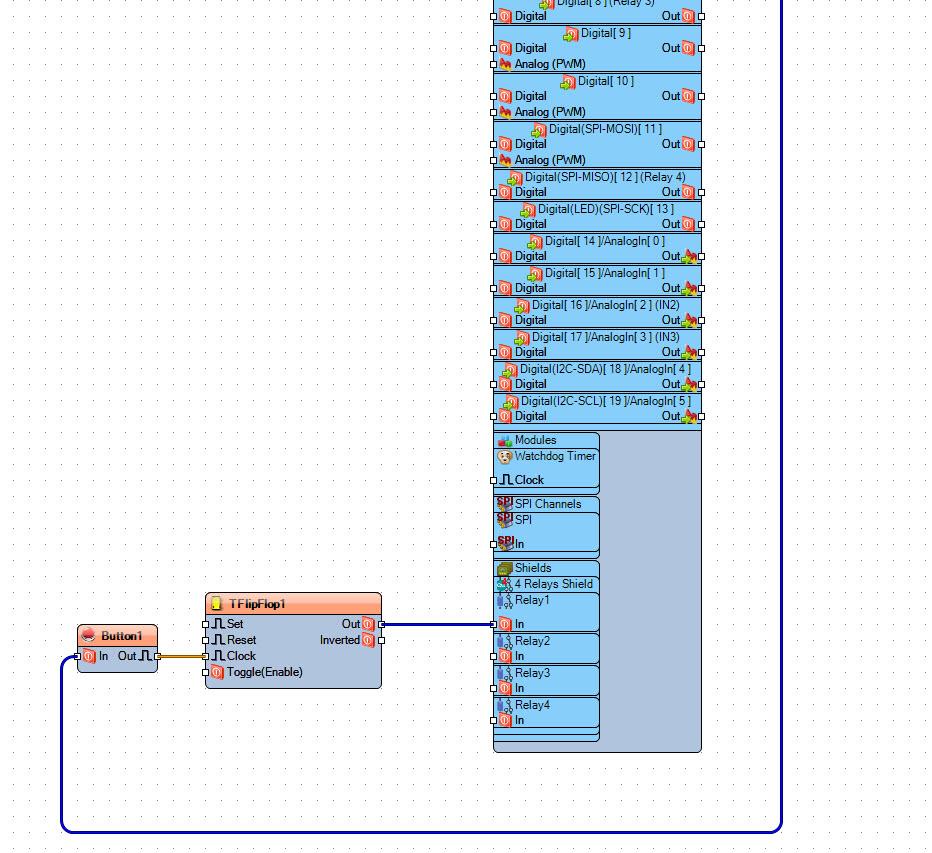

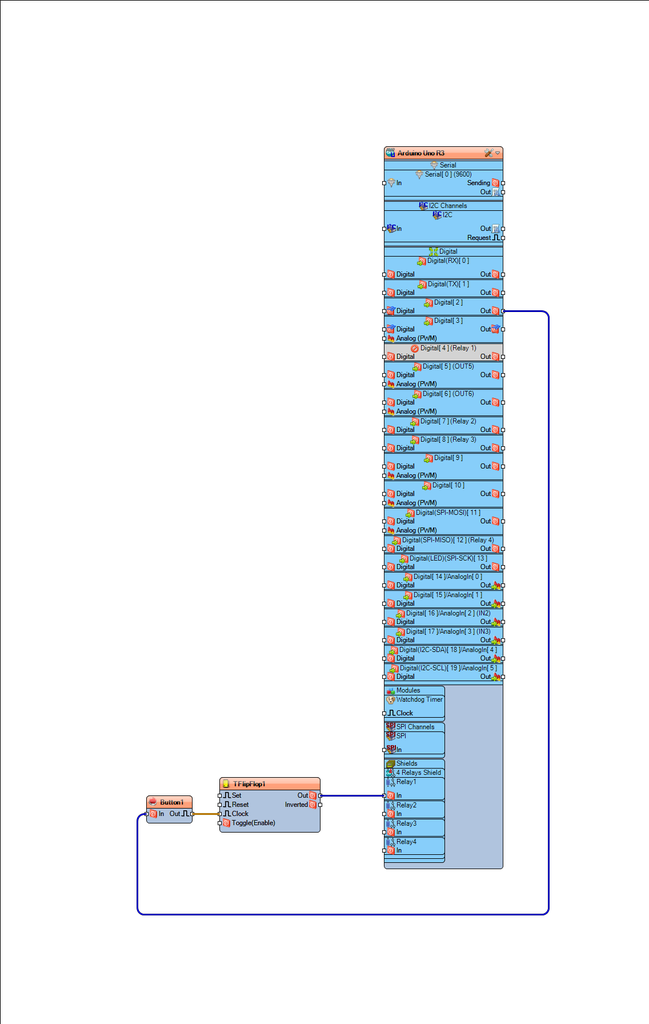

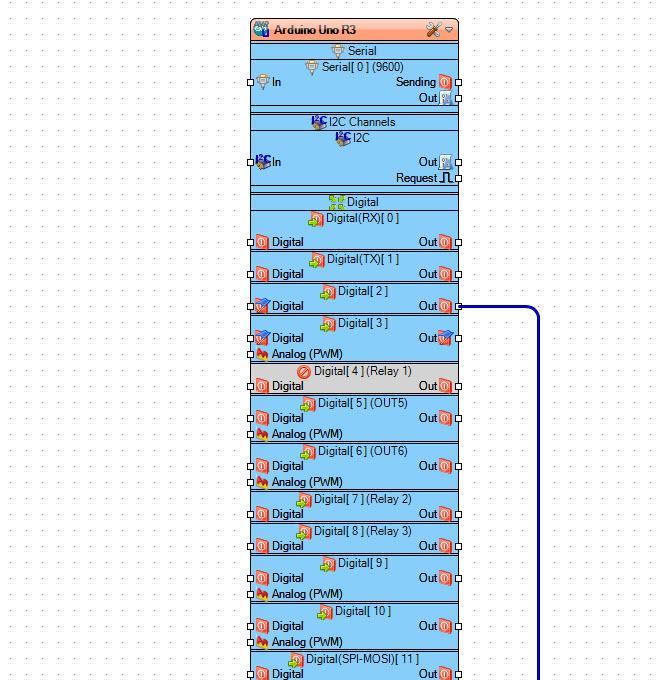

For the second Light bulb button or remote control example we will add "Toggle(T) Flip-Flop" component and "DeBounce button" componentConnect Arduino digital pin [2] to "Button1" pin [InConnect "Button1" pin [Out] to "Toggle(T) Flip-Flop" pin [Clock]Connect "Toggle(T) Flip-Flop" pin [Out] to Arduino > Relay1 pin [In]Upload the project to the Arduino board

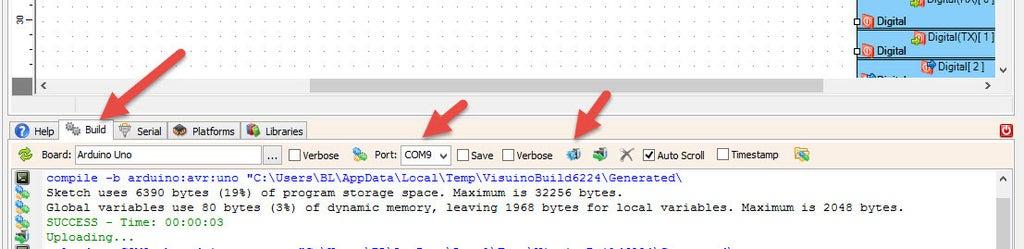

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.
Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this Instructable, you can download it and open it in Visuino: https://www.visuino.com
Relay-shield.rar
