Most AI demos today can talk really well, but they can’t do real work.
In this project, I’ll show you how to build a voice-controlled AI assistant using an ESP32 and Xiaozhi that can safely control real hardware and software automations. This assistant doesn’t just chat; it turns lights ON and OFF, reads sensor data, and even creates and fetches meetings from Google Calendar.
The key idea behind this project is Model Context Protocol (MCP). MCP acts as a bridge between an AI model and physical systems, allowing the AI to call predefined tools using structured data instead of guessing commands.

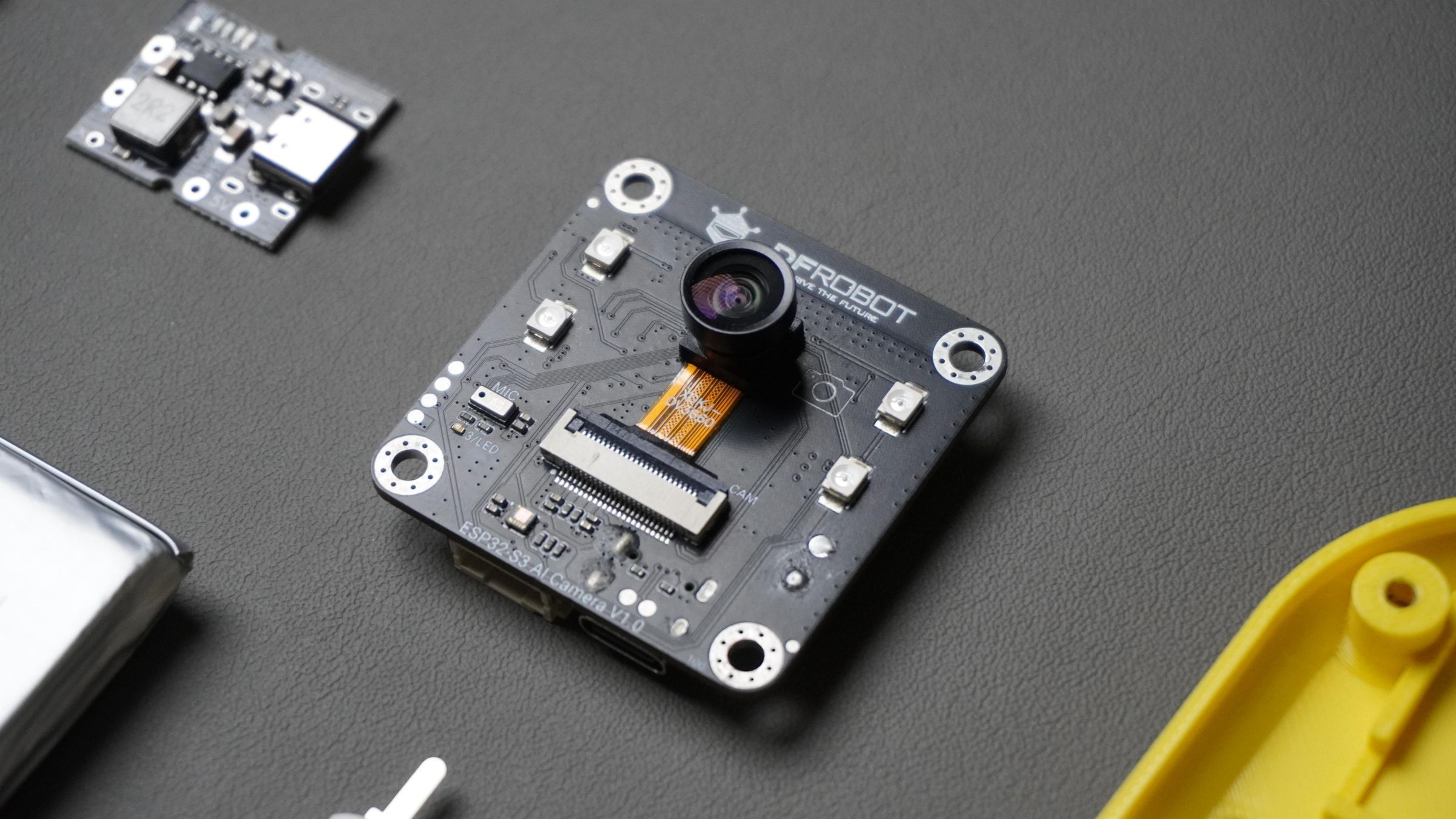

Using the DFRobot ESP32-S3 AI Cam, we combine voice input, AI decision-making, and real execution on an embedded device. The result is a reliable, predictable, and secure AI assistant that actually works in the real world.
This guide walks you through the complete process, from hardware setup and enclosure design to MCP tools and real-world automation.

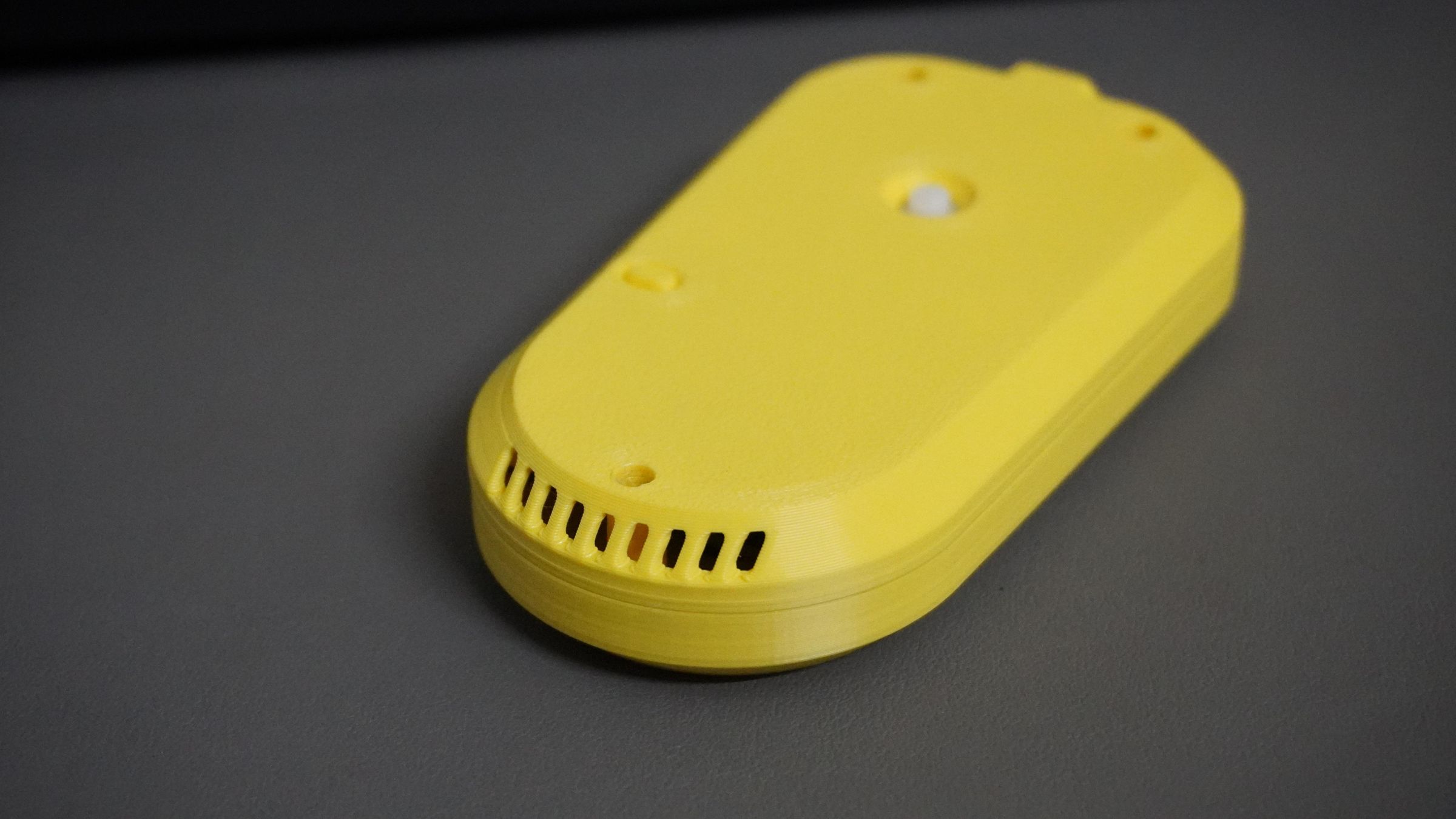

I designed a custom enclosure in Autodesk Fusion 360 to give the project a clean, product-like finish.

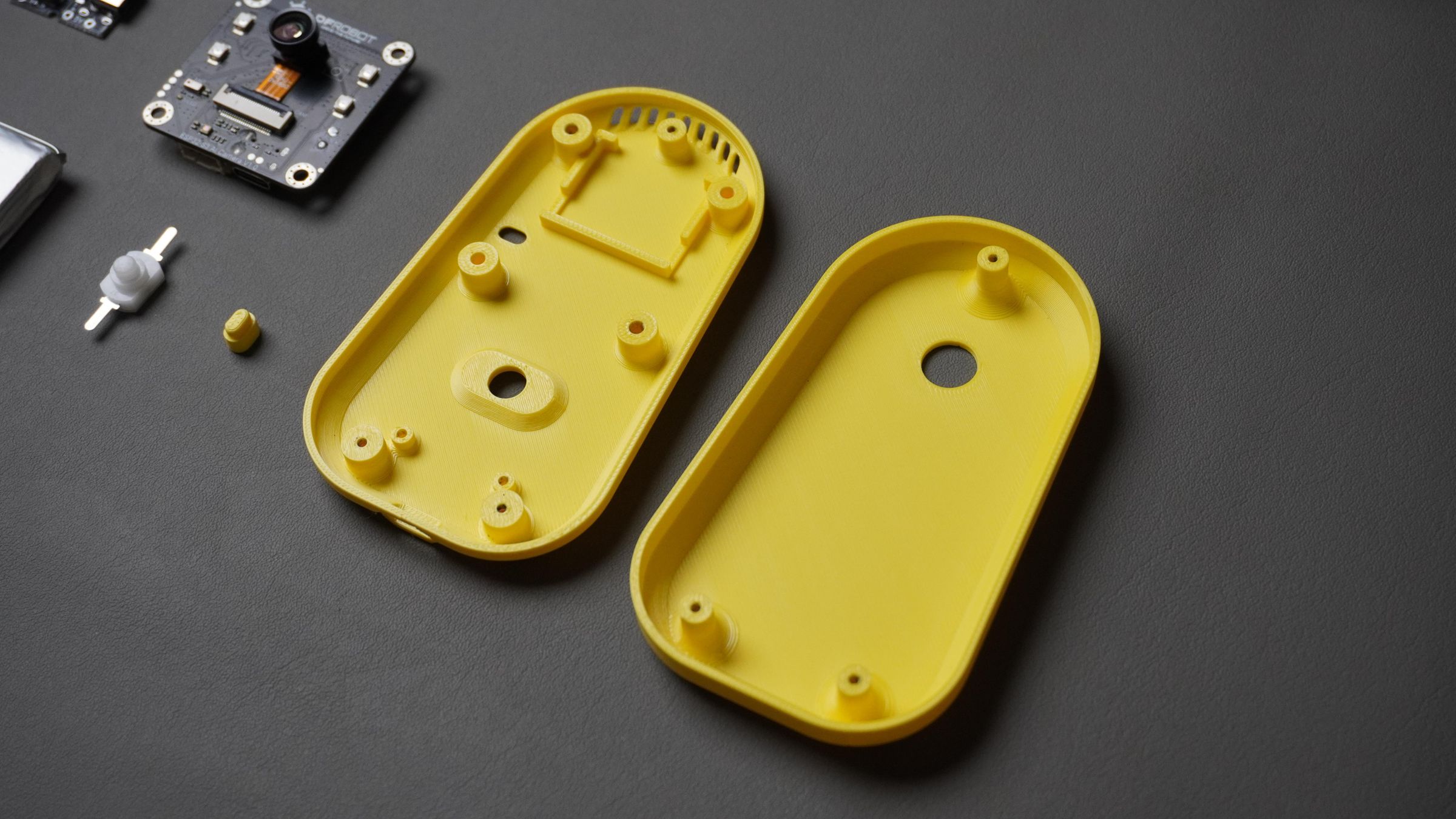

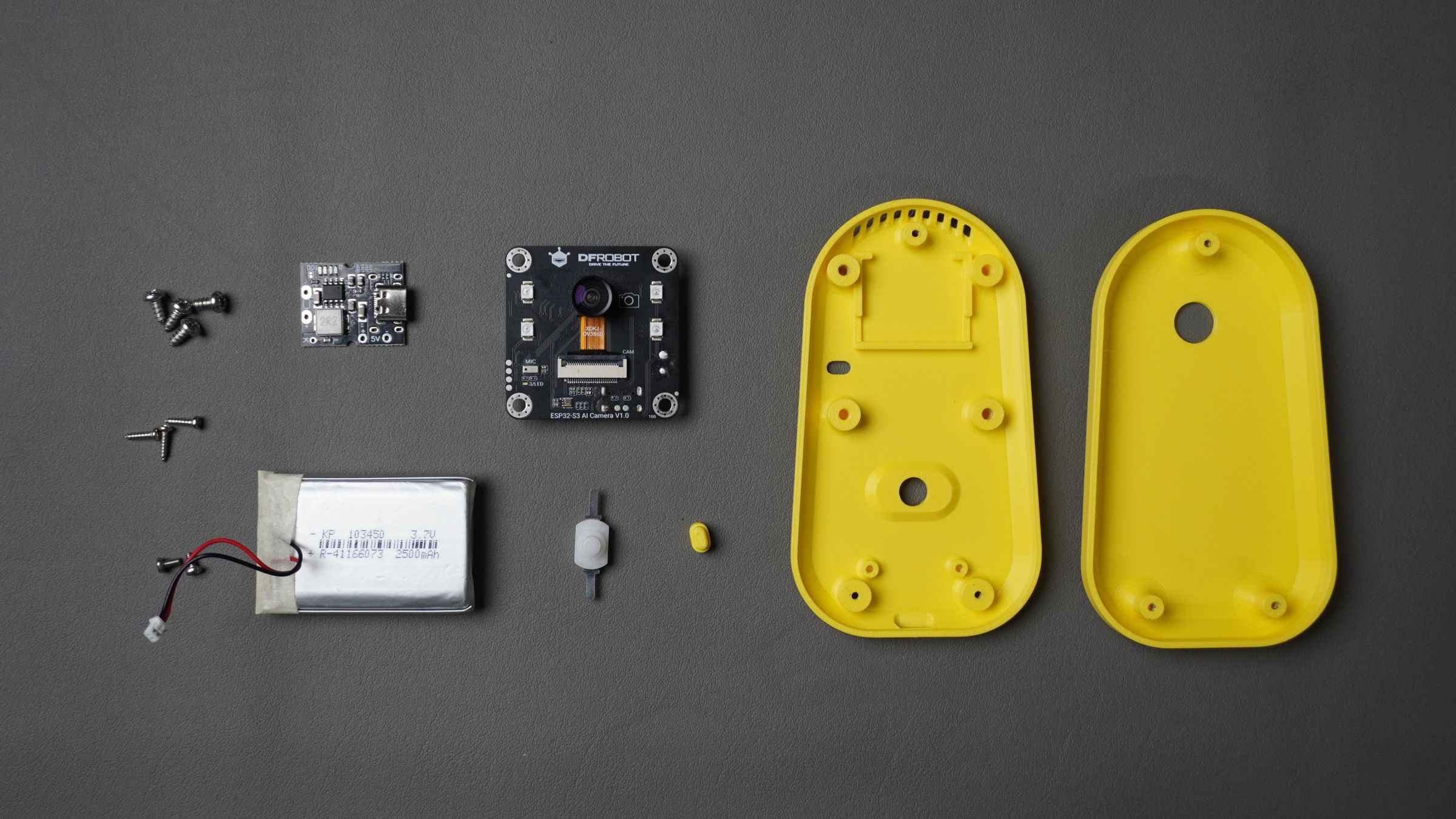

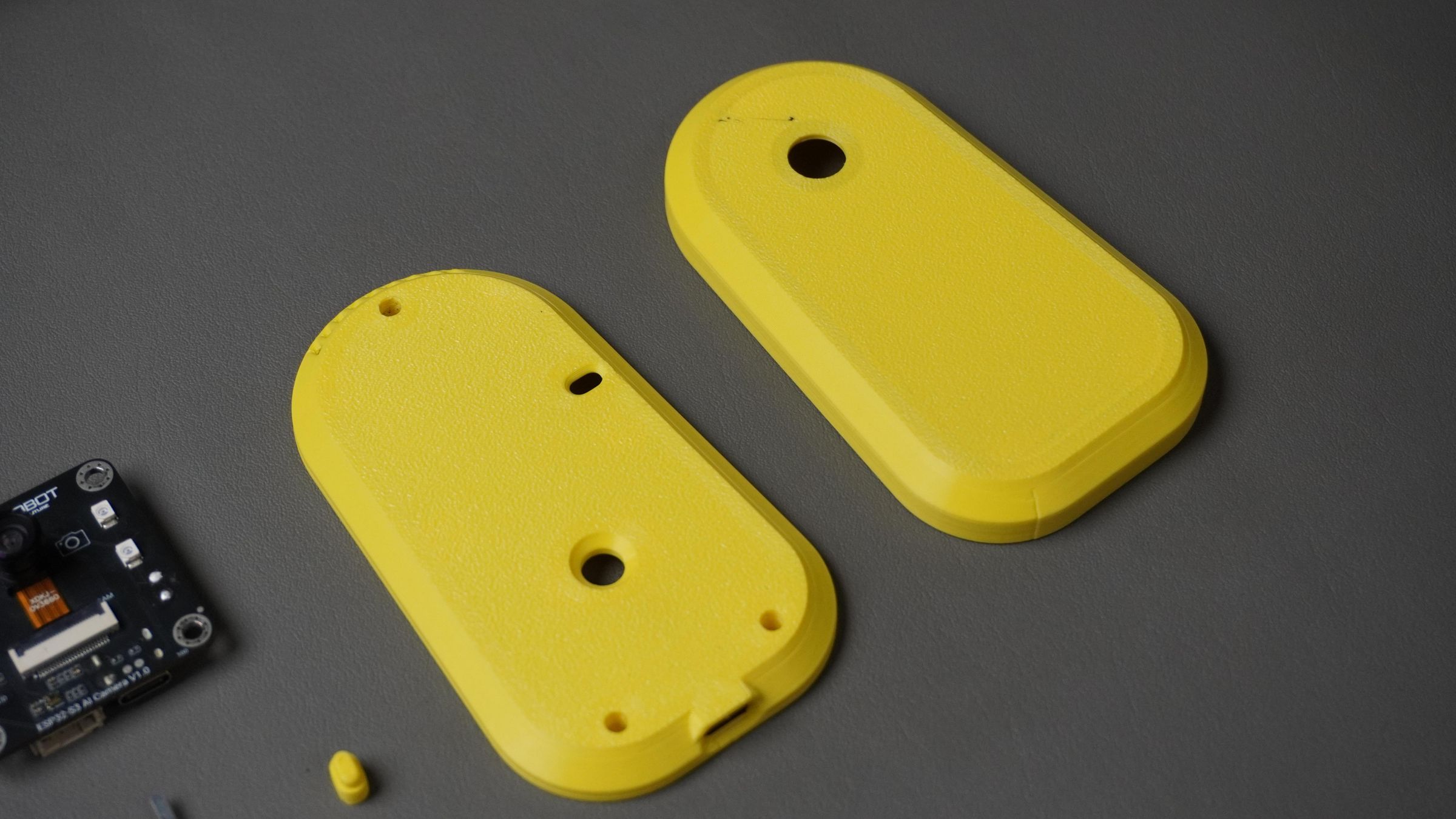

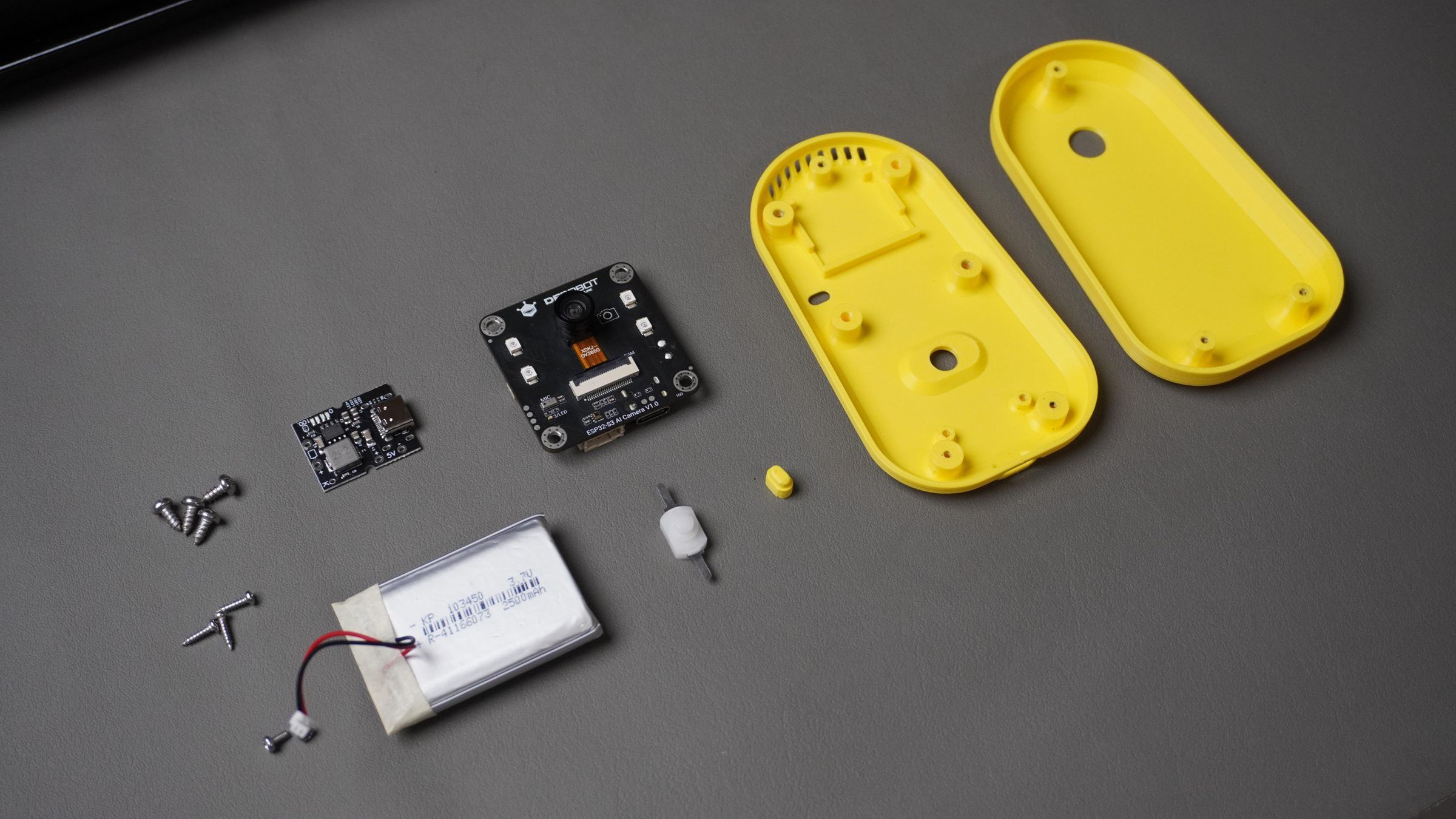

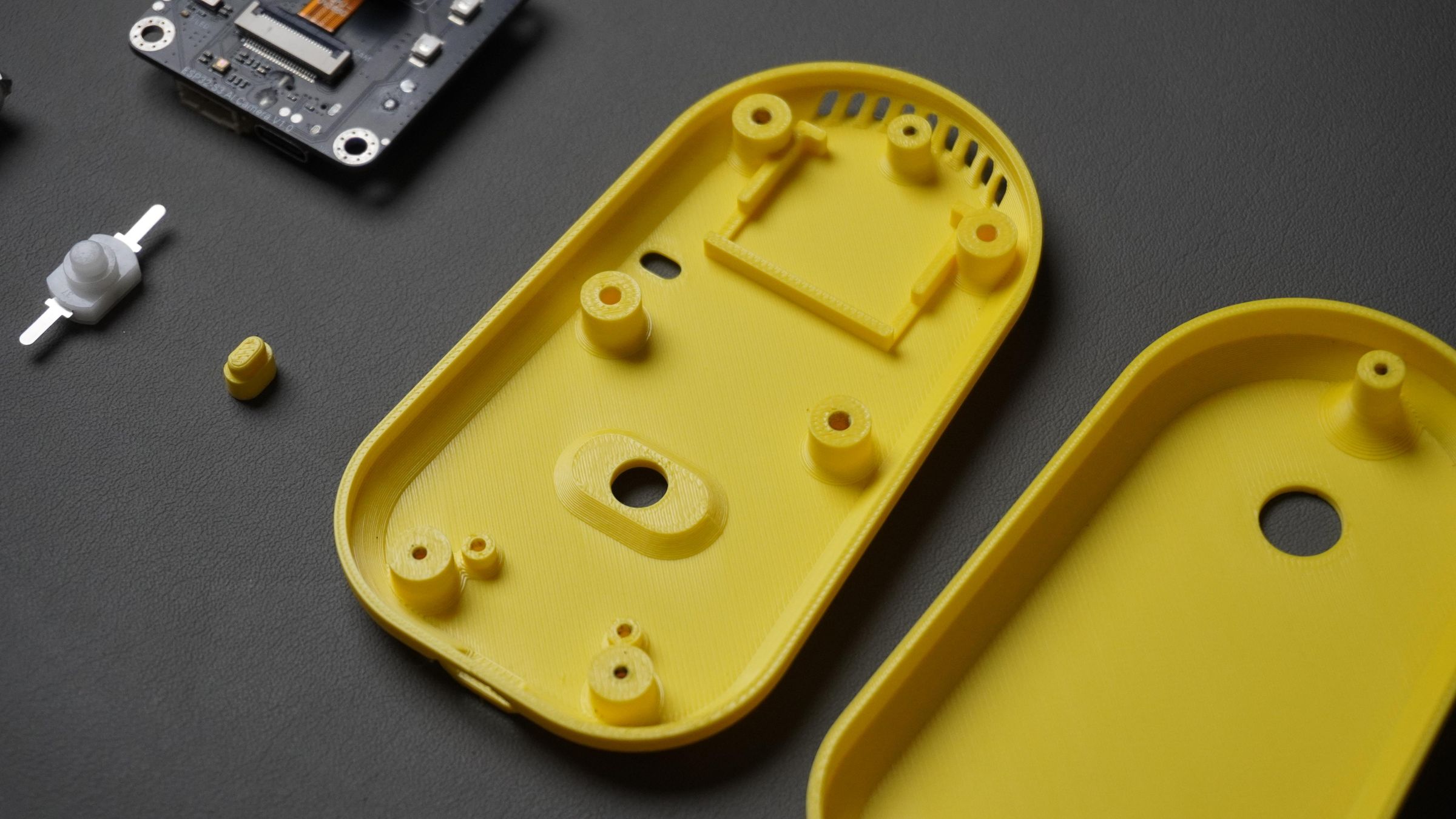

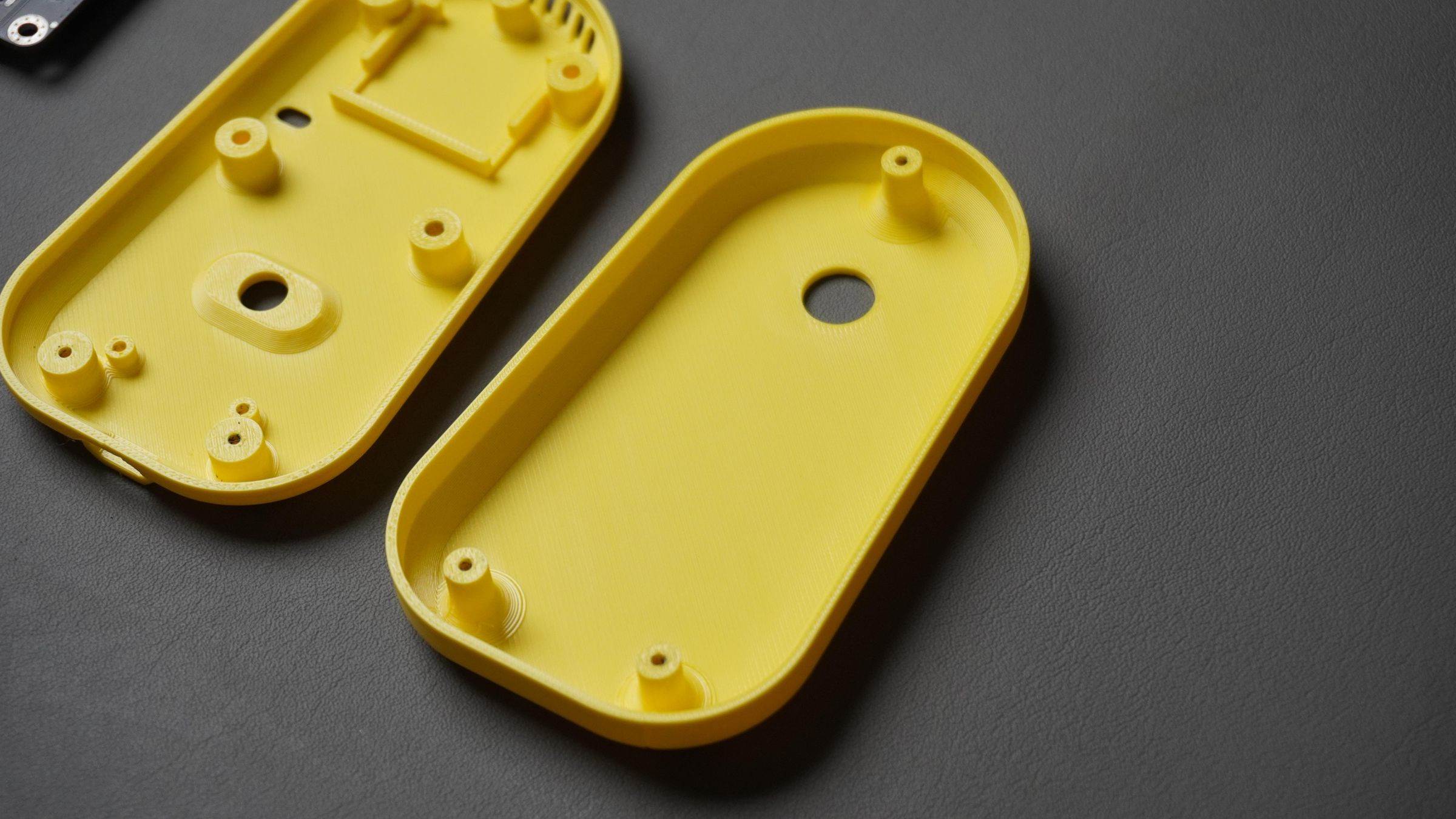

The enclosure consists of three parts:
- Main housing – holds all the electronics

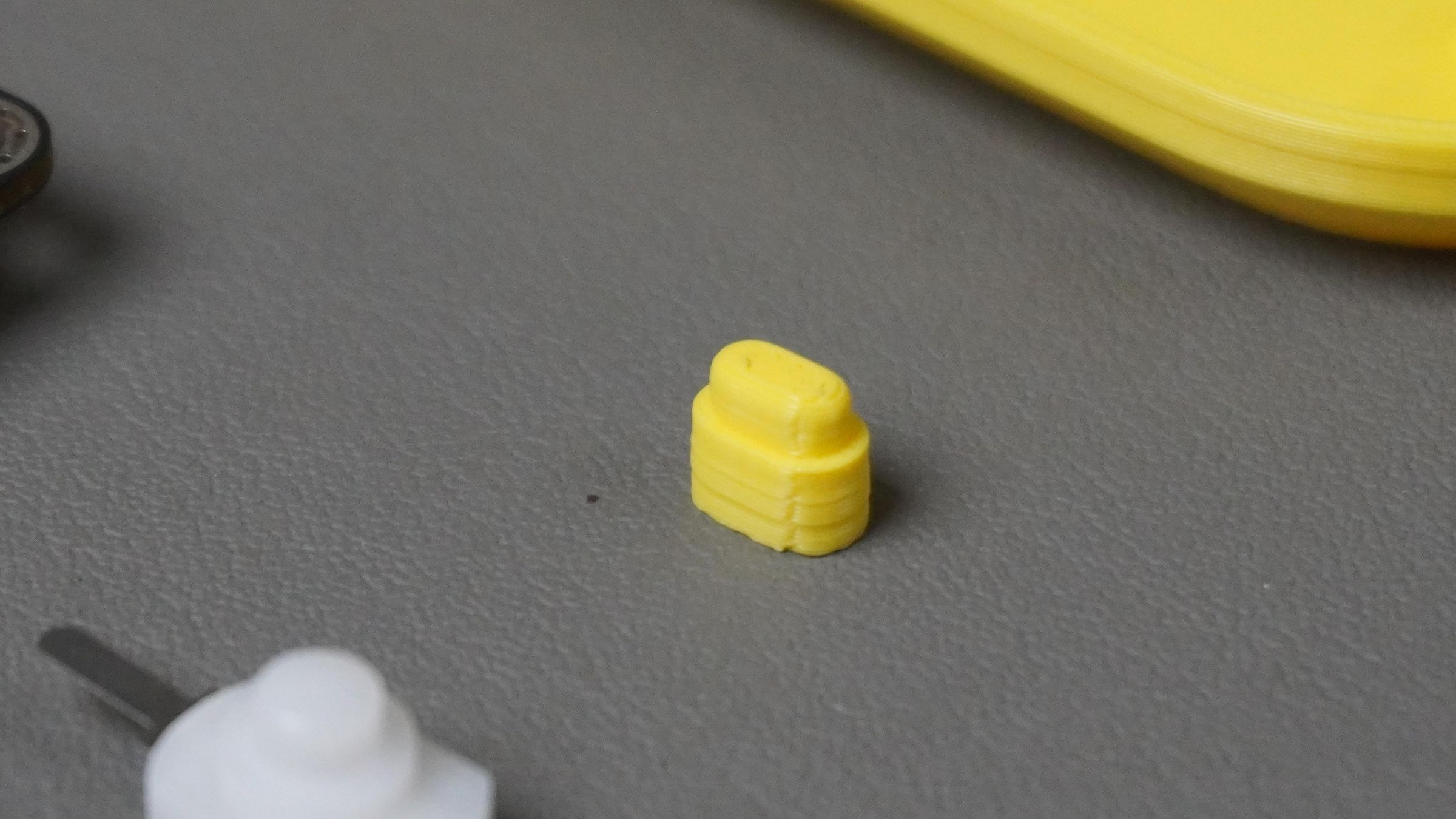

- Button extension – brings the ESP32-S3 on-board button outside the enclosure
- Top cover – closes the assembly and includes the camera cutout

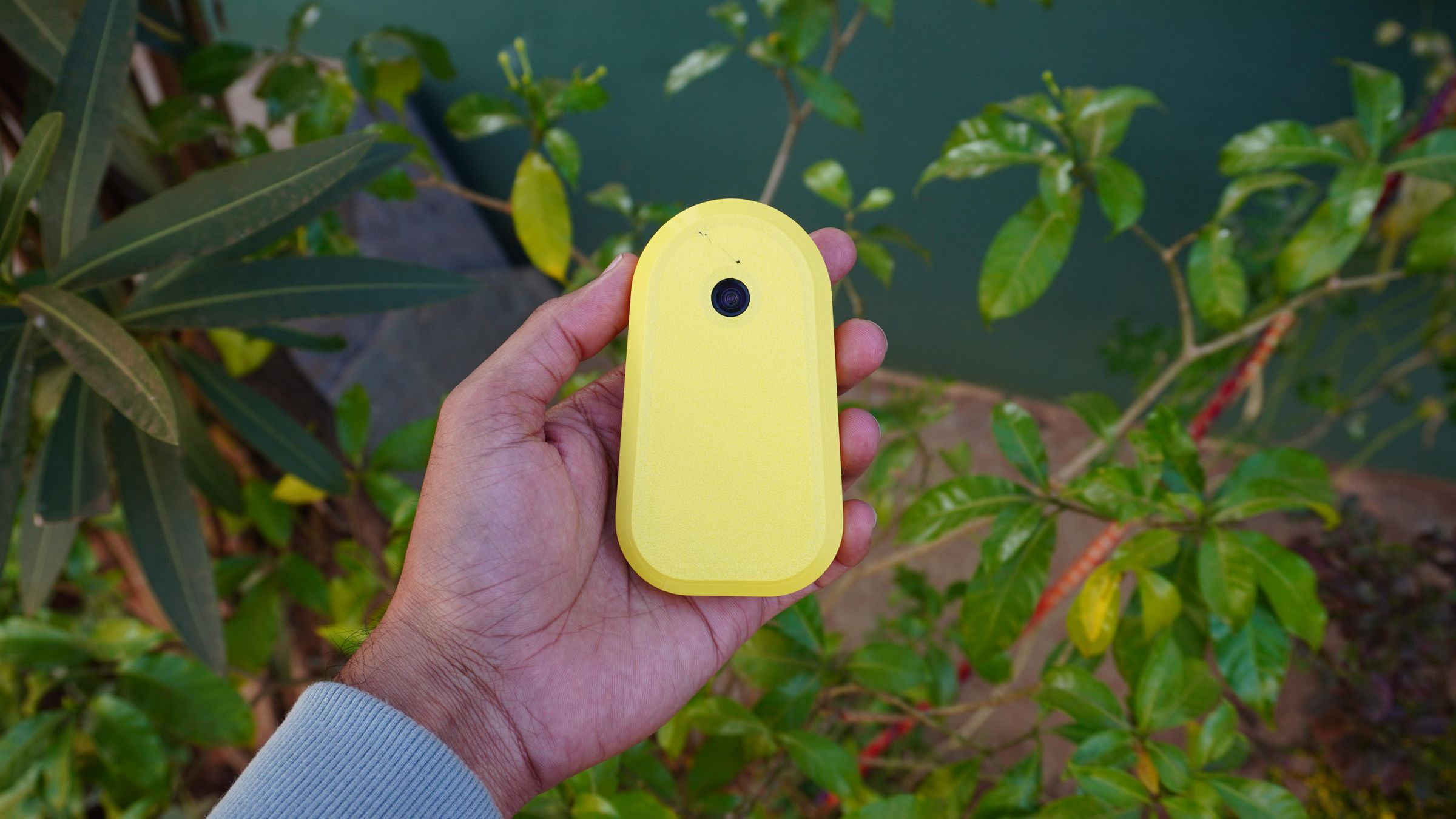

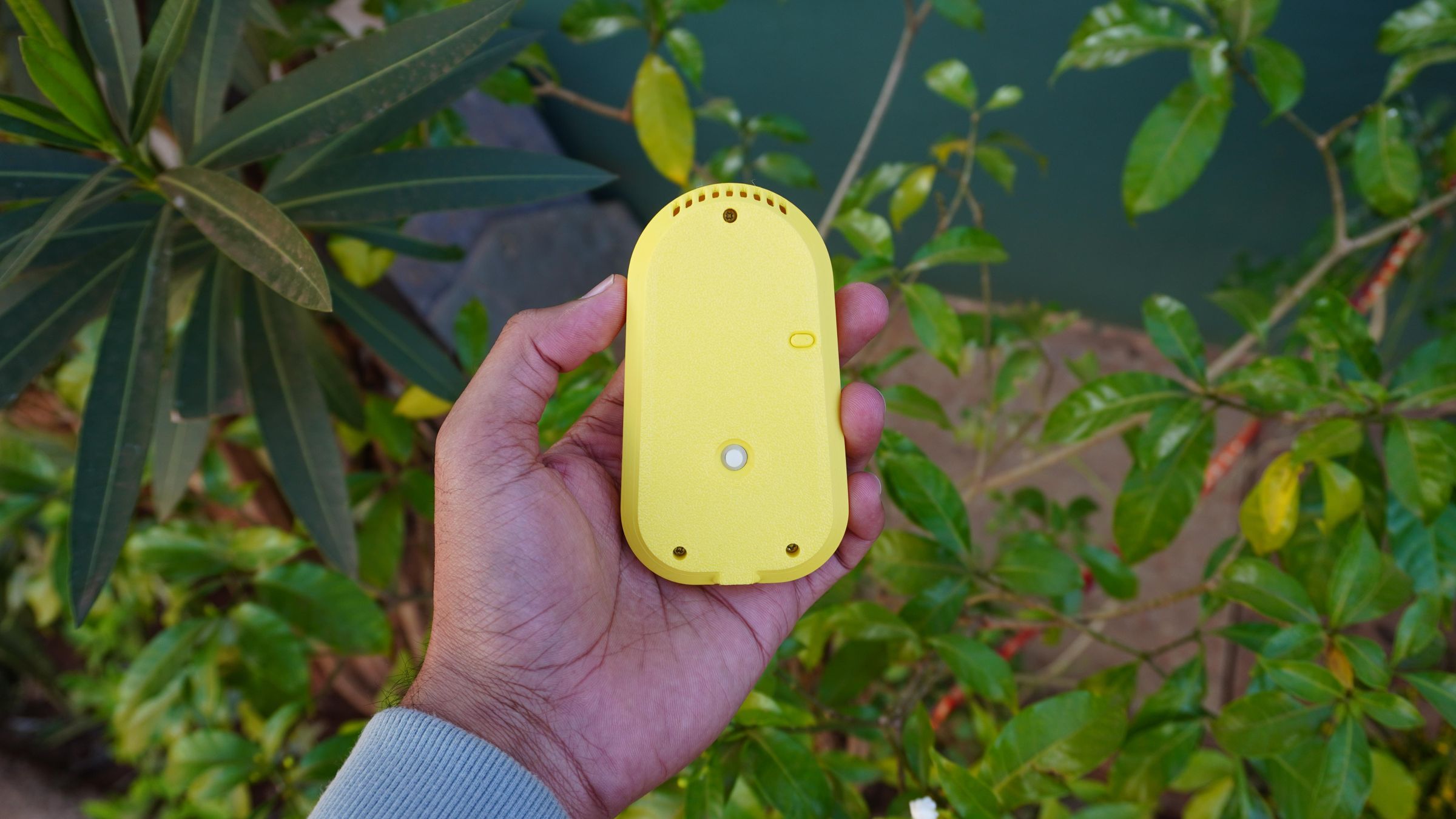

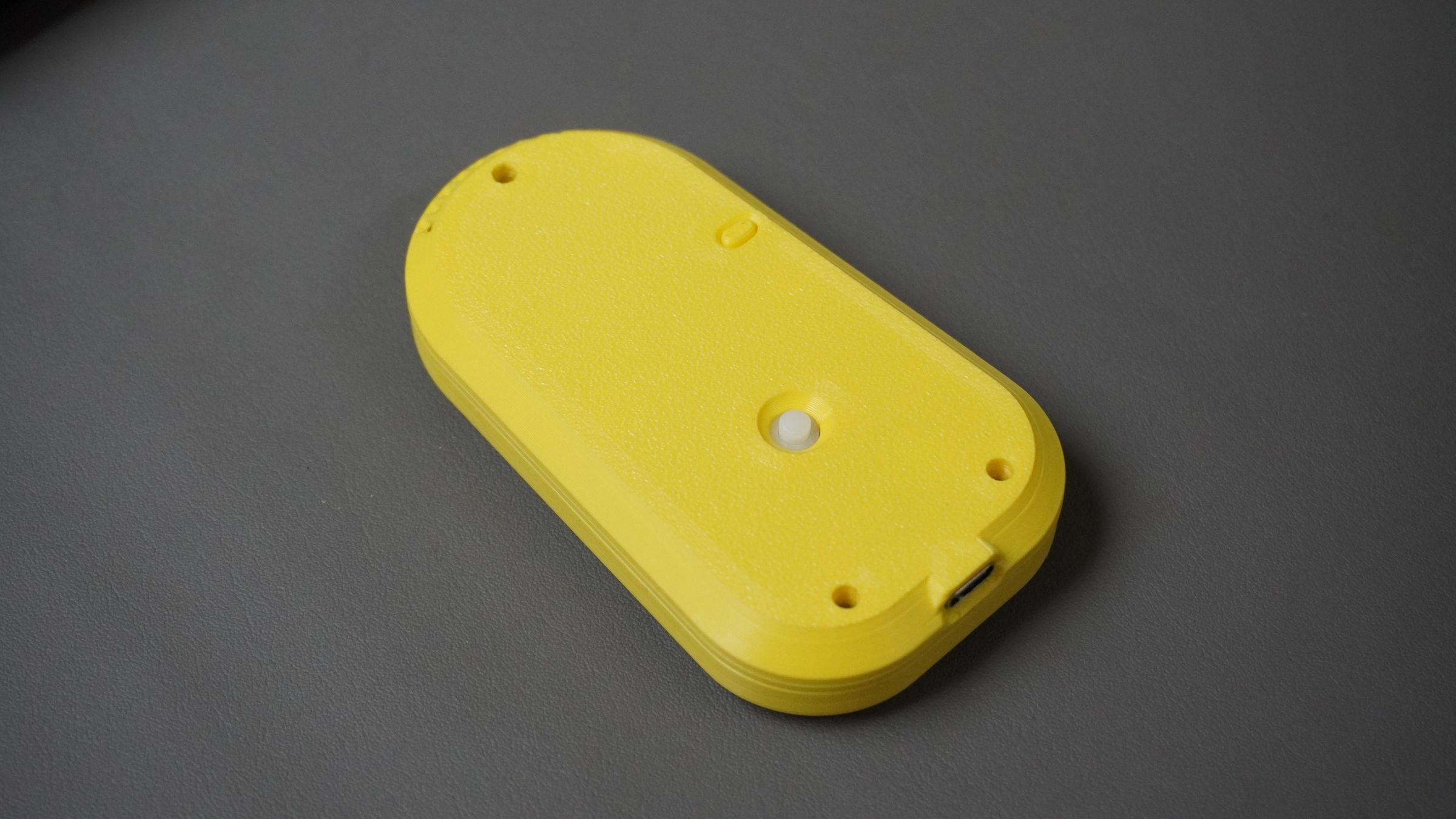

The design is compact, lightweight, and comfortable to hold, roughly the size of a soap bar.
I 3D-printed all parts using a Bambu Lab P1S printer with yellow PLA filament.
You can:
- Download the STL files and print them directly, or
- Download the Fusion 360 (STEP) files and modify the design as needed
- Note: This design is shared for educational and personal use only, not for commercial purposes.
To flash the Xiaozhi firmware onto the ESP32-S3 AI Cam, follow these steps.
1. Download Required Files
ESP Flash Download Tool
Mino Project Repository
https://github.com/MukeshSankhla/Mino-ESP32_MCP
This repository contains firmware and all project-related files.

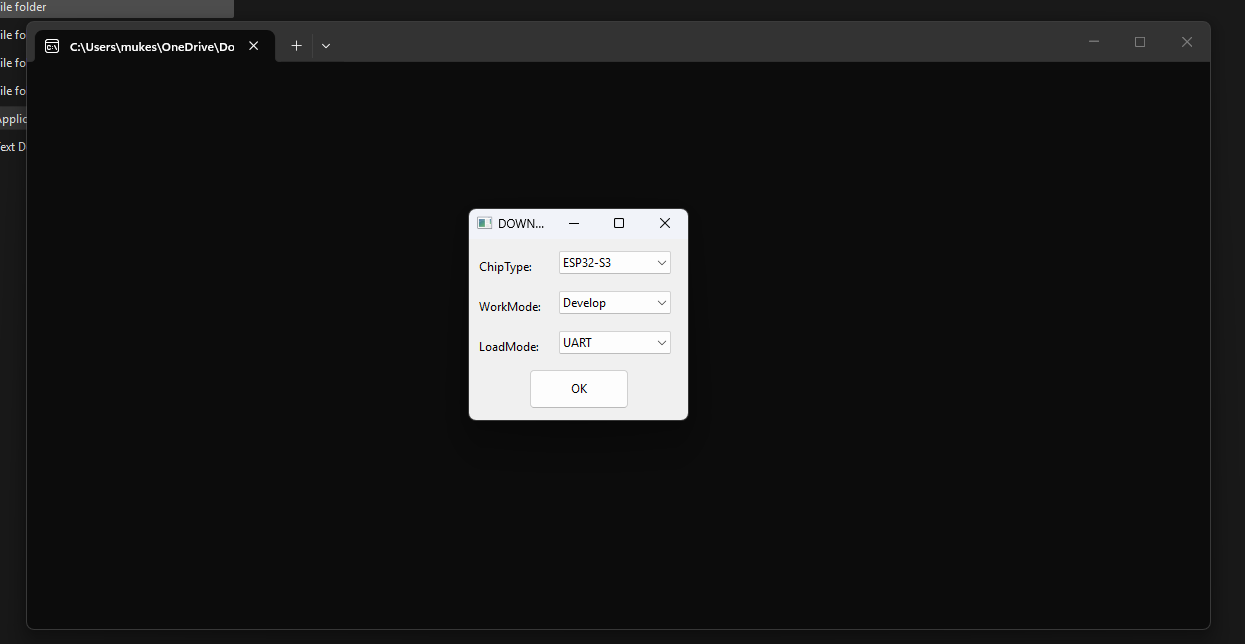

2. Prepare the Flasher Tool

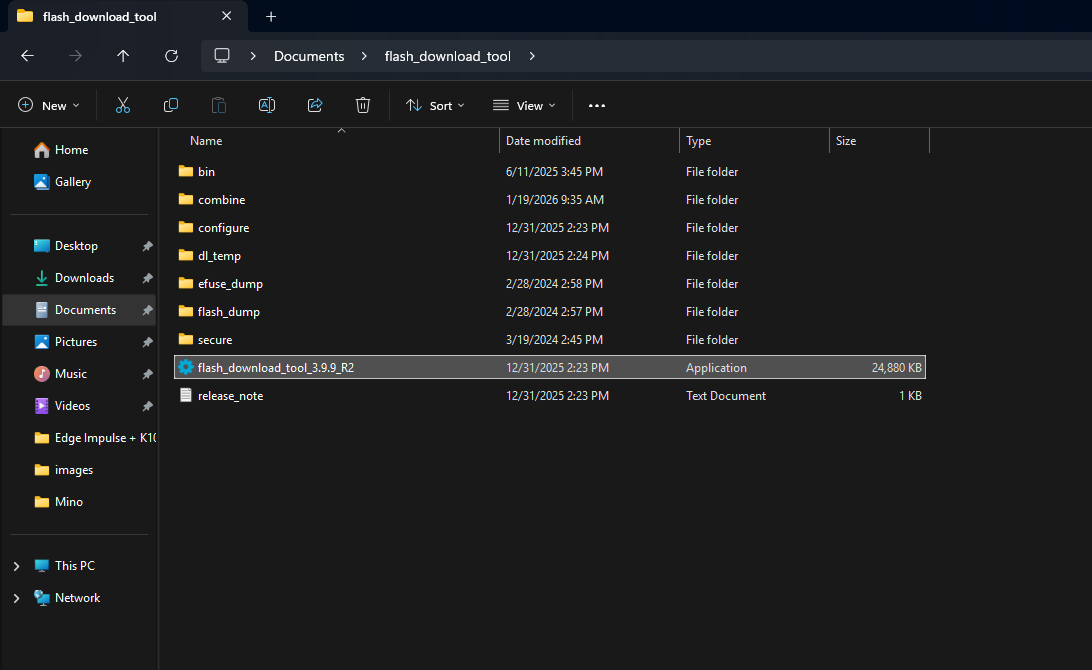

Extract all downloaded files
Open the ESP Flash Download Tool by double-clicking it
Select the chip type as ESP32-S3

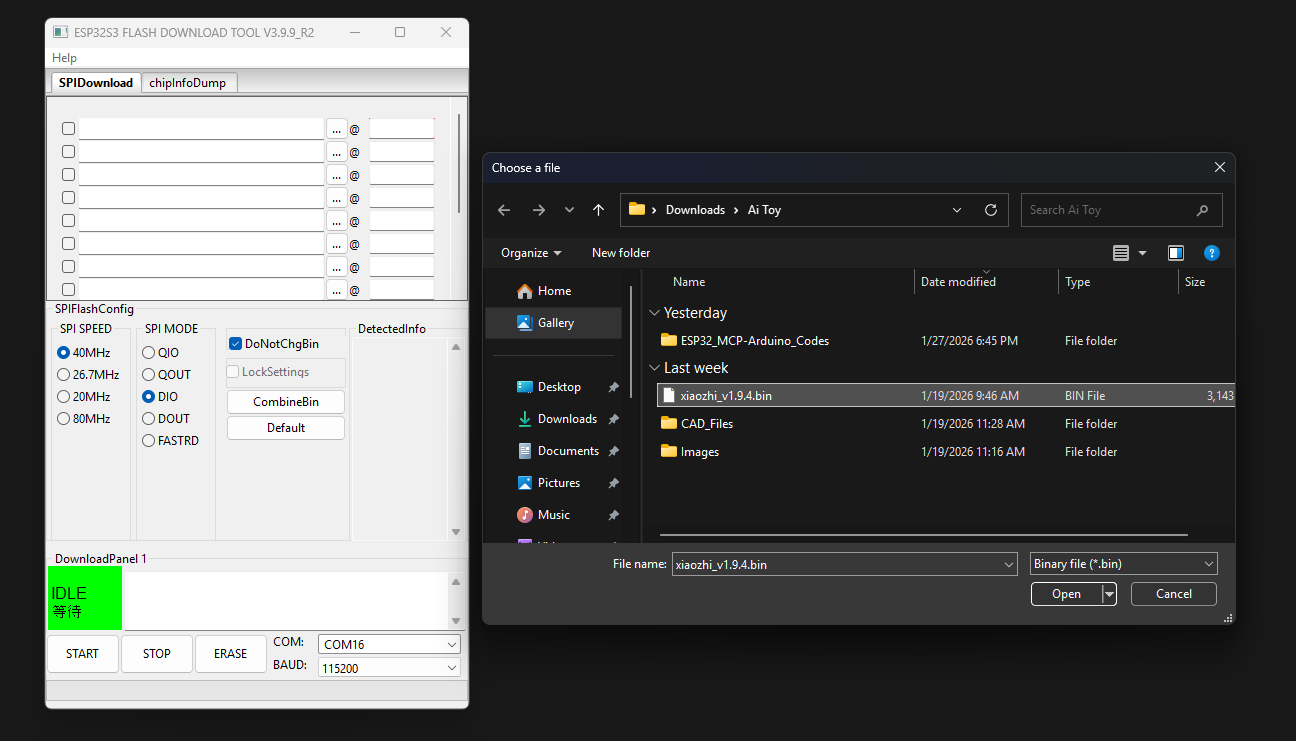

3. Flash the Firmware

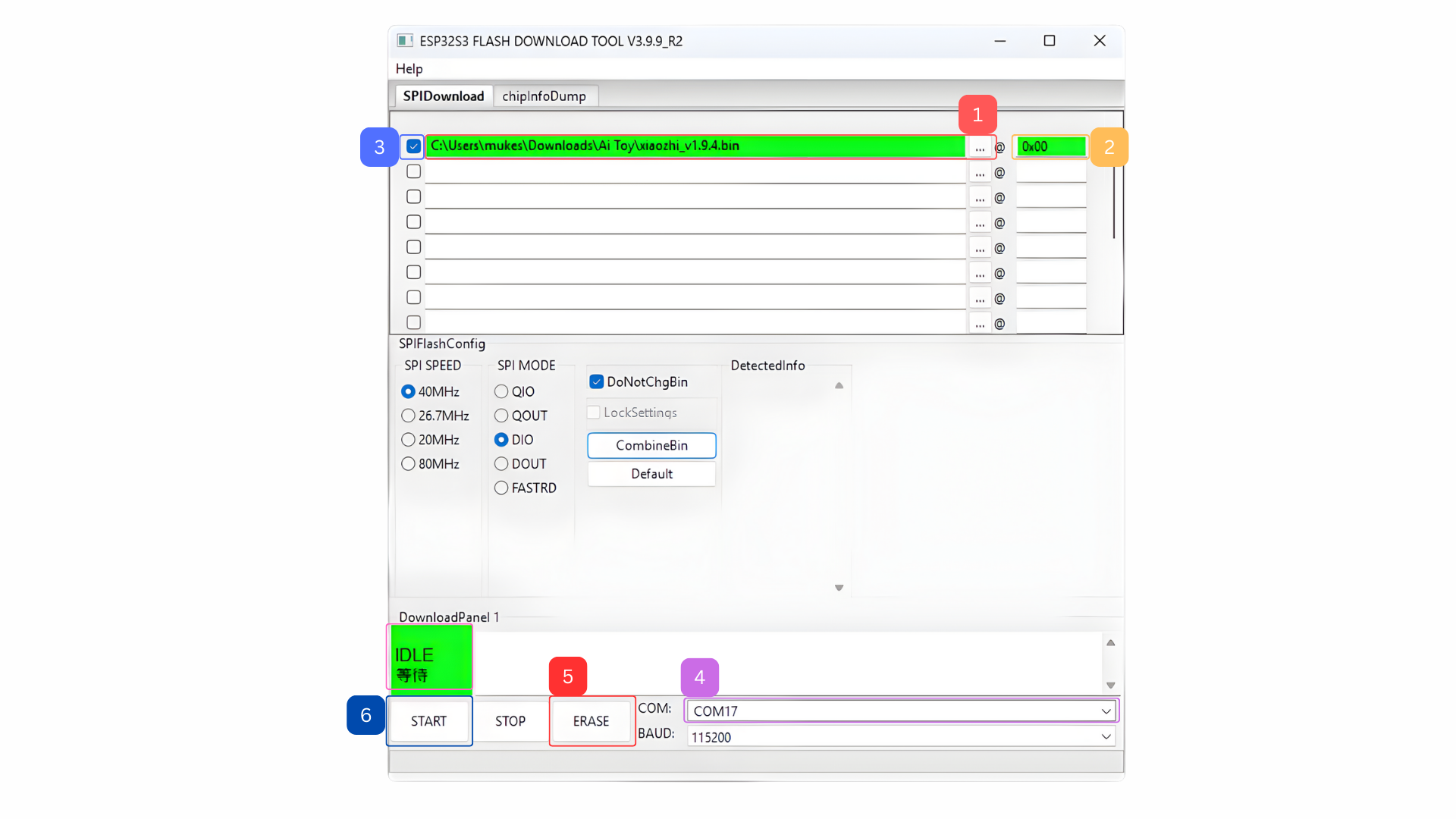

You will now be on the flashing screen:
1.Click the three dots (⋯) and select the firmware .bin(xiaozhi_v1.9.4.bin) file from the project folder
2.Set the address to 0x00
3.Check the enable checkbox
4.Select the correct COM port

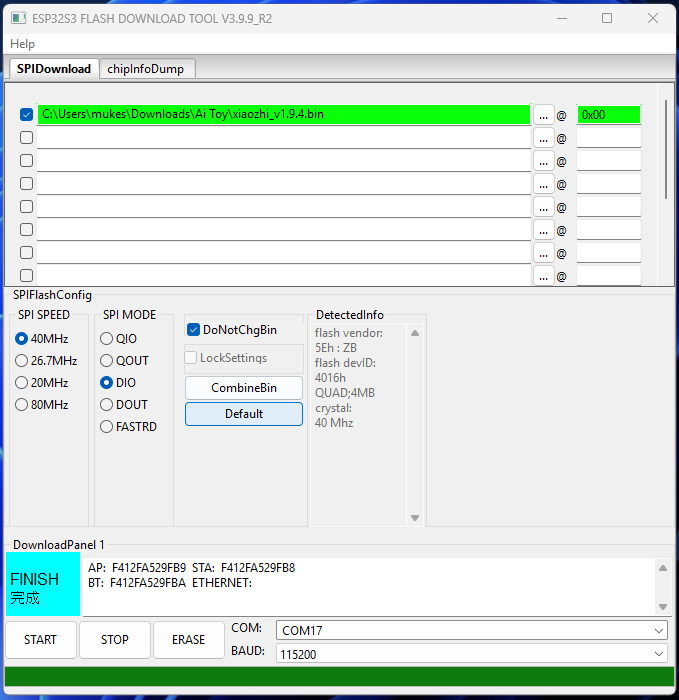

5.Click Erase and wait until it shows Finished

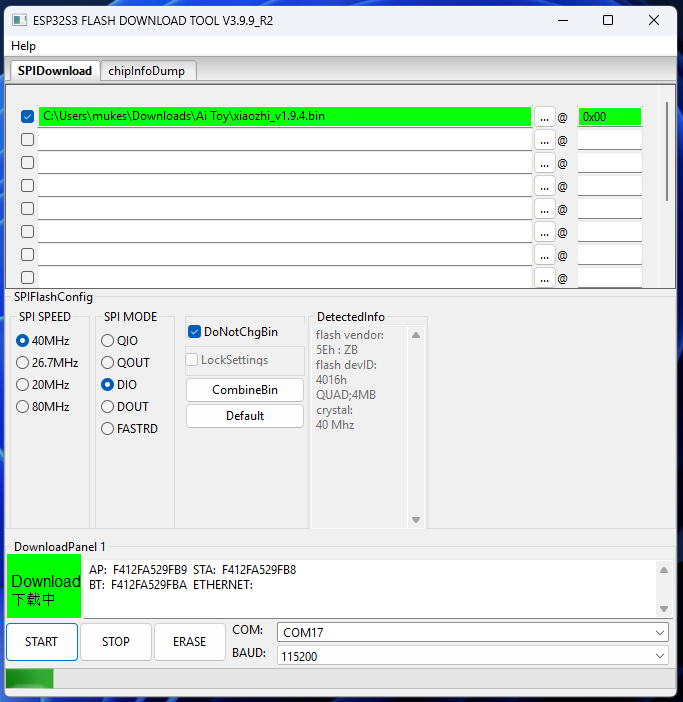

6.Click Start to begin flashing, wait until the flashing process completes
Once finished, the firmware is successfully flashed onto the ESP32-S3 AI Cam.

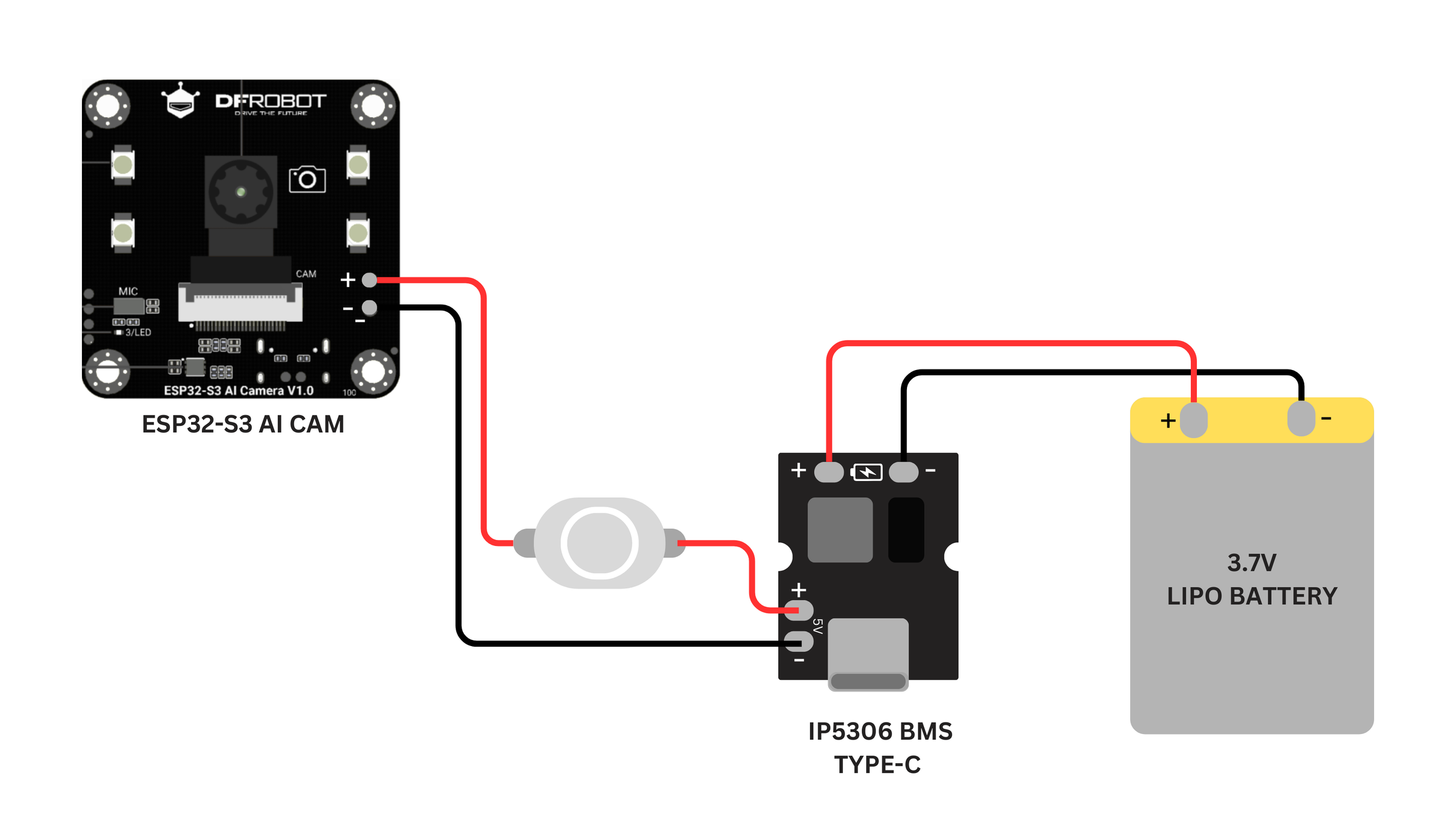

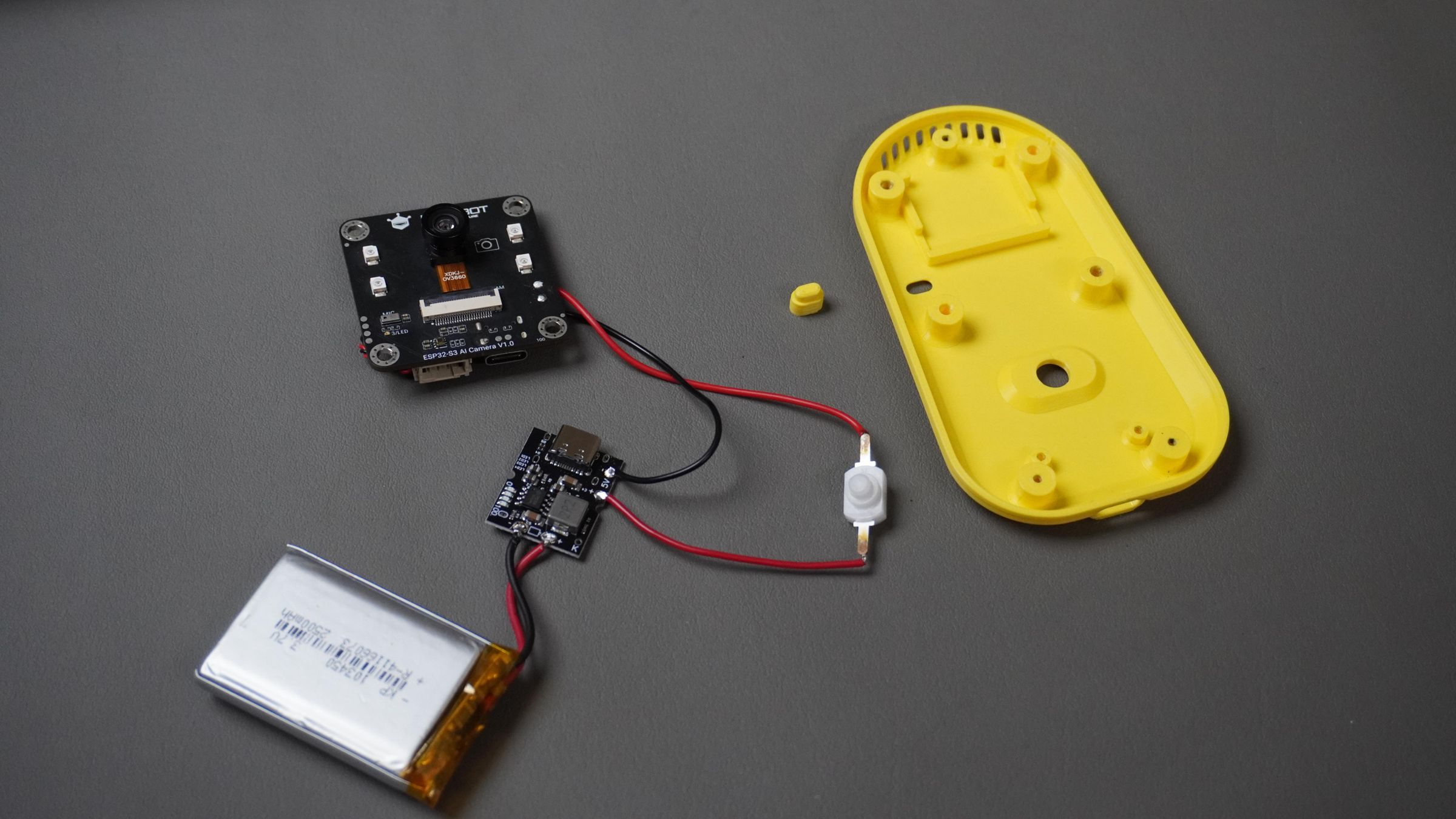

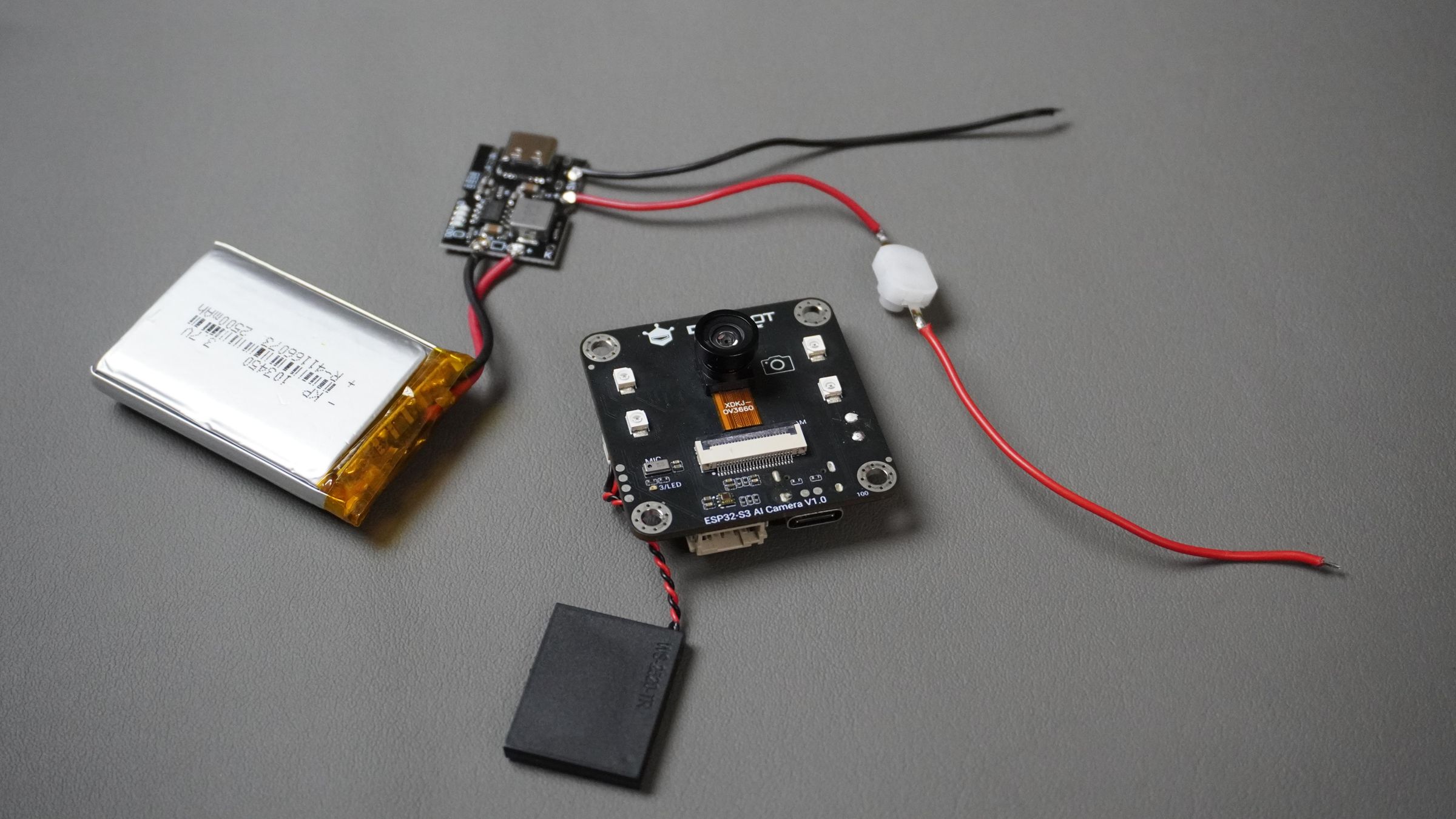

Now, follow the circuit diagram and make the required connections using a soldering iron and wires.

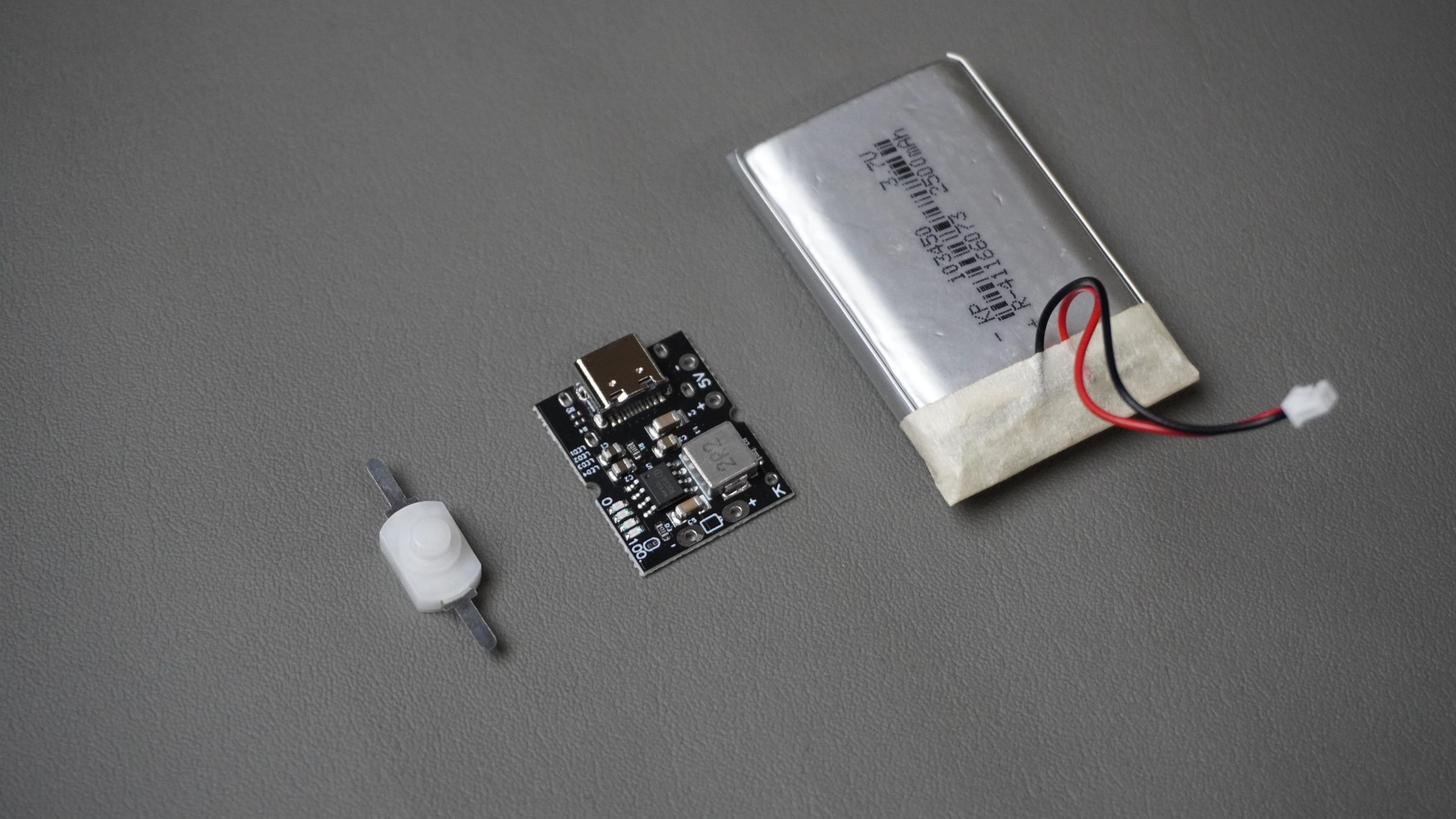

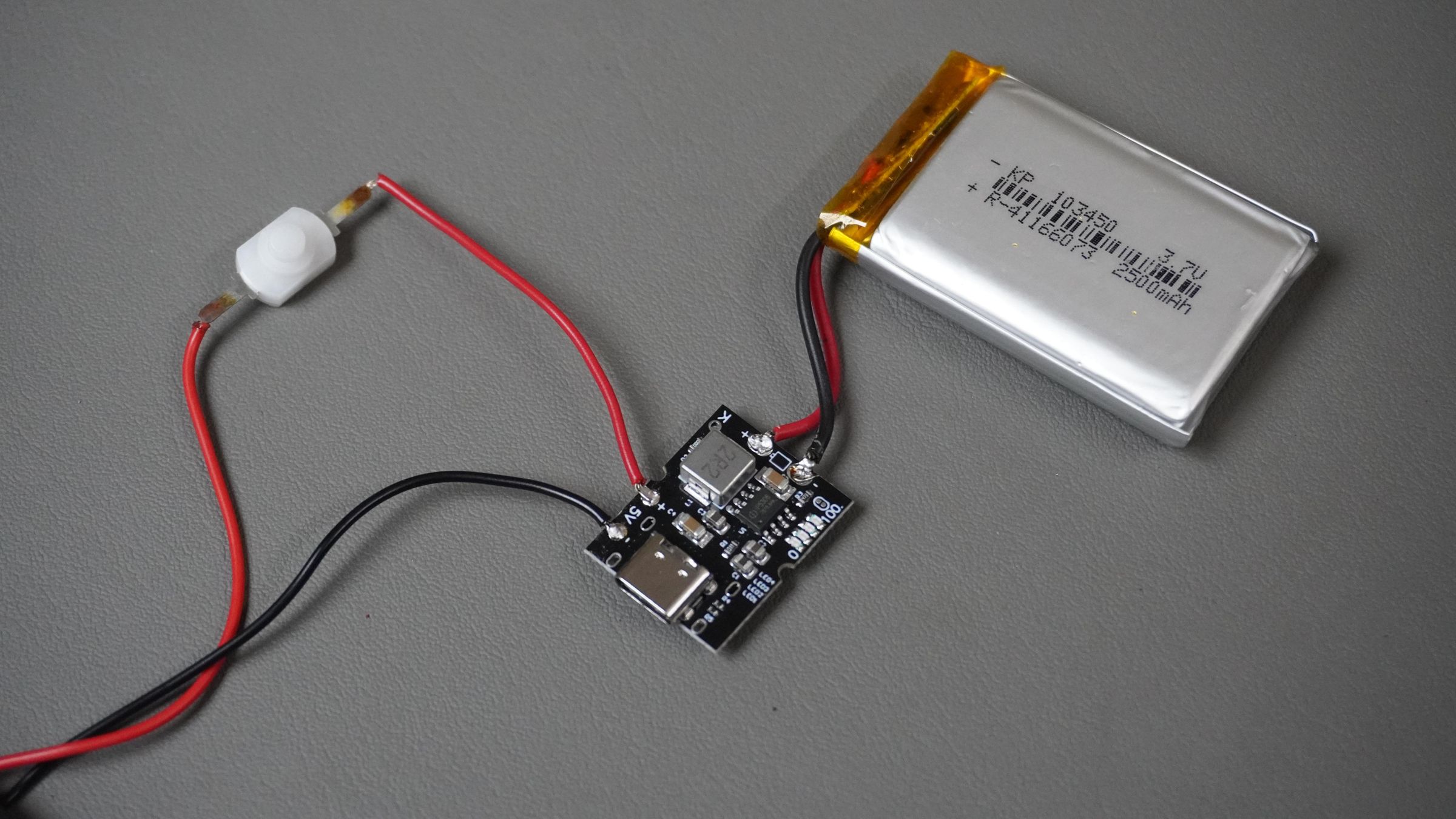

Power Connections

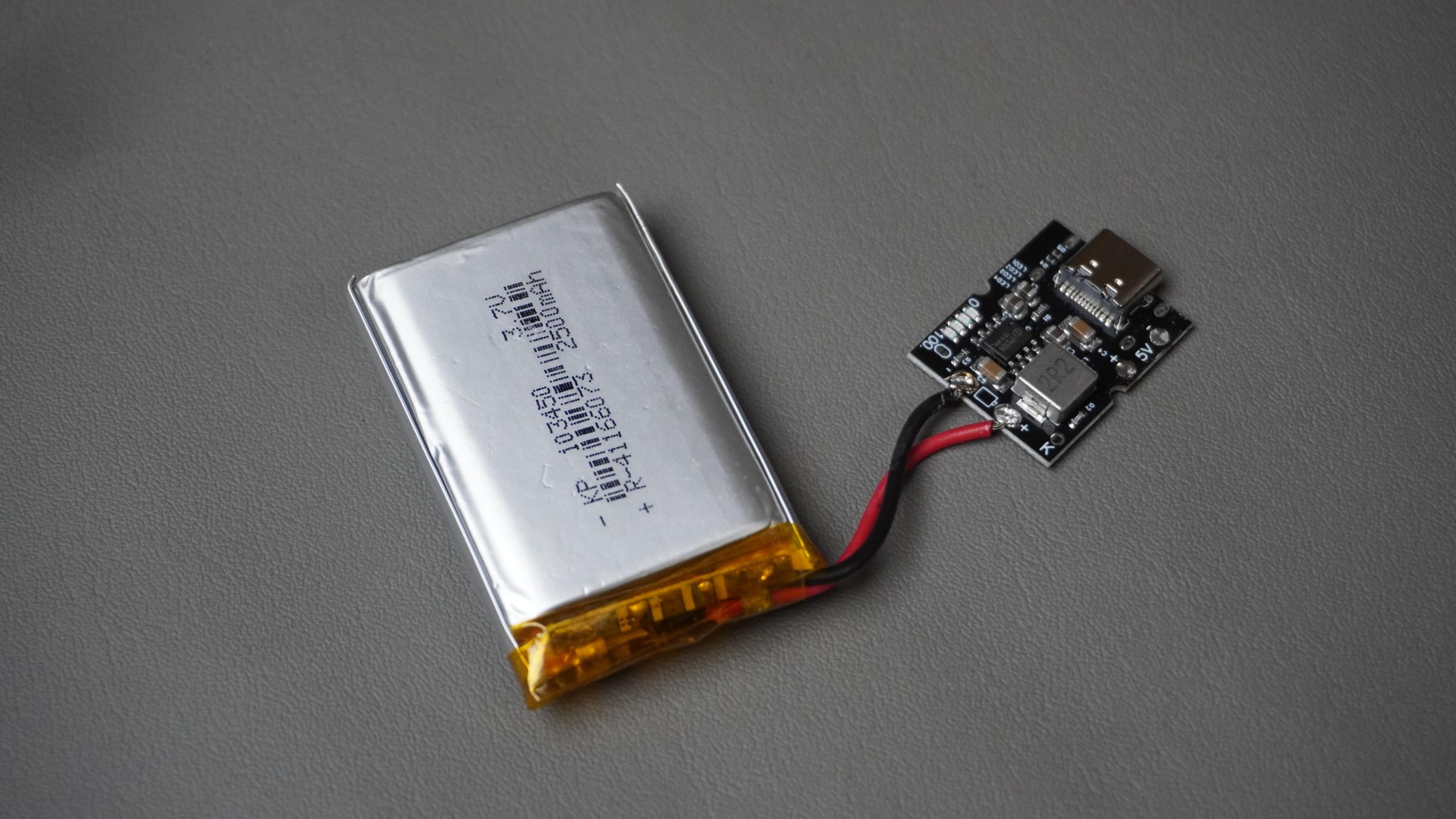

Battery to BMS (Input)

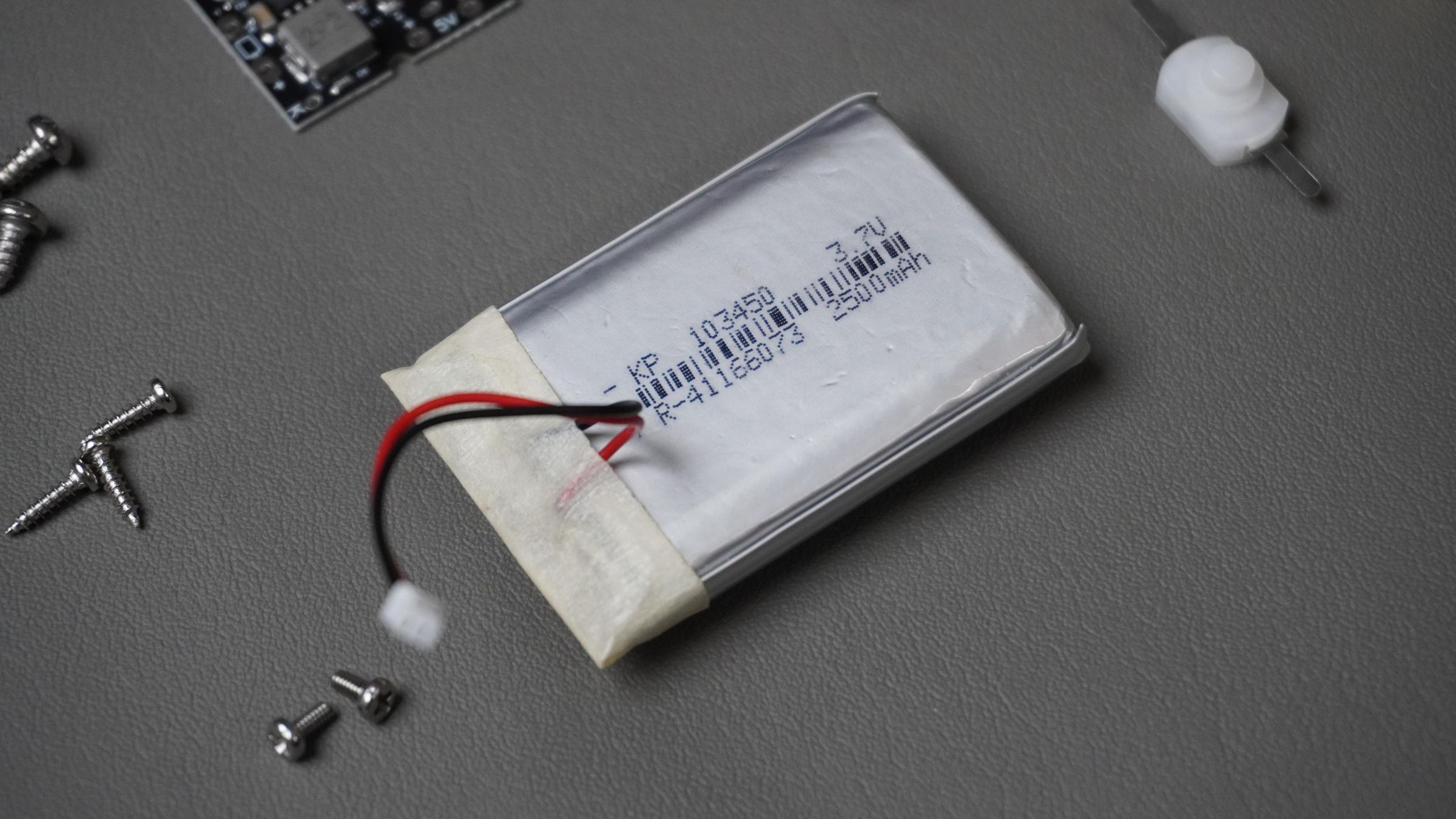

Connect the Li-Po battery to the IP5306 BMS input
Red wire → Positive (+)
Black wire → Negative (−)
Double-check polarity before soldering.

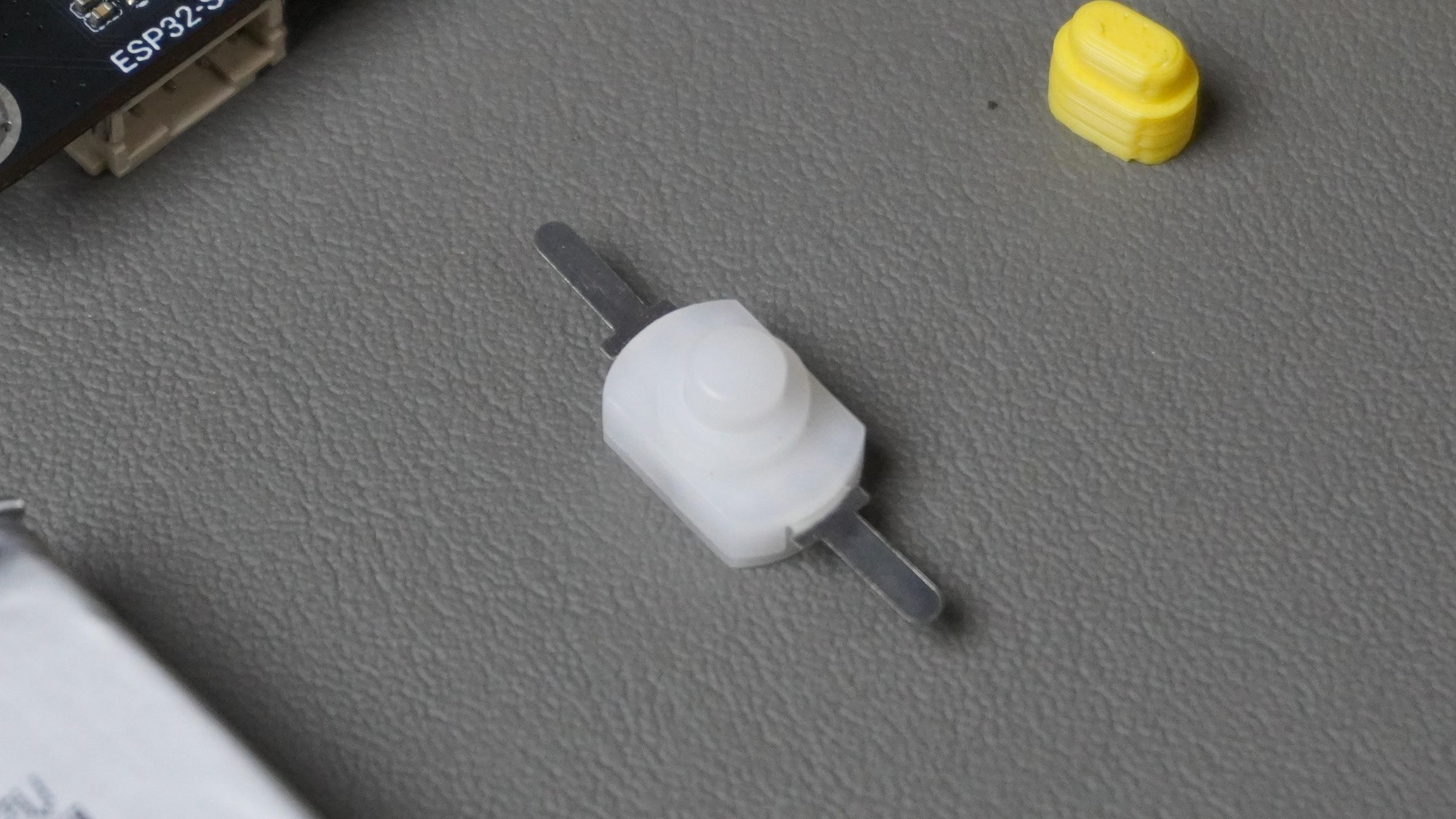

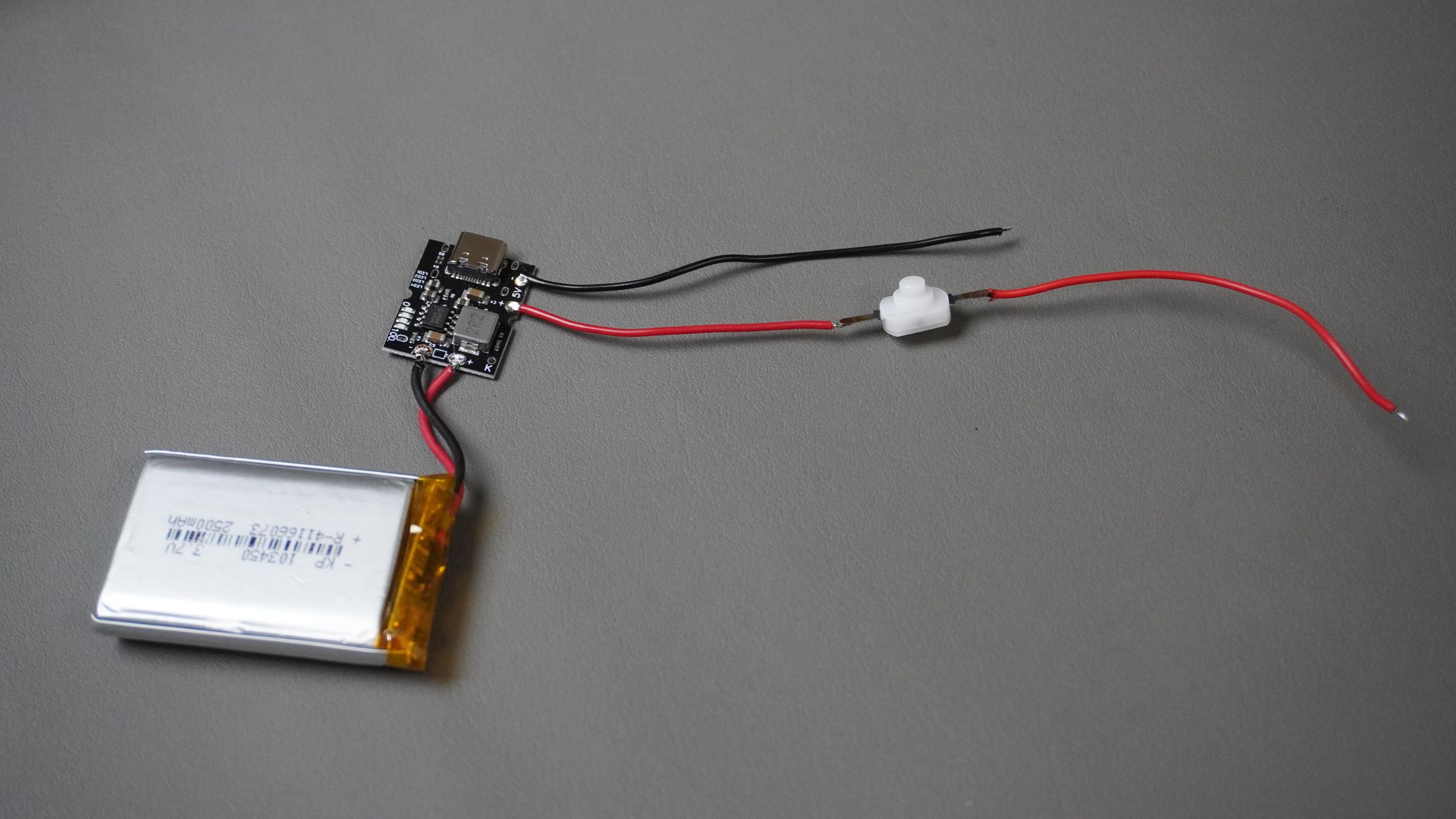

Power Switch Connection
Connect the mini switch in series with the output side of the IP5306 BMS
This switch will control power delivery to the ESP32-S3 AI Cam

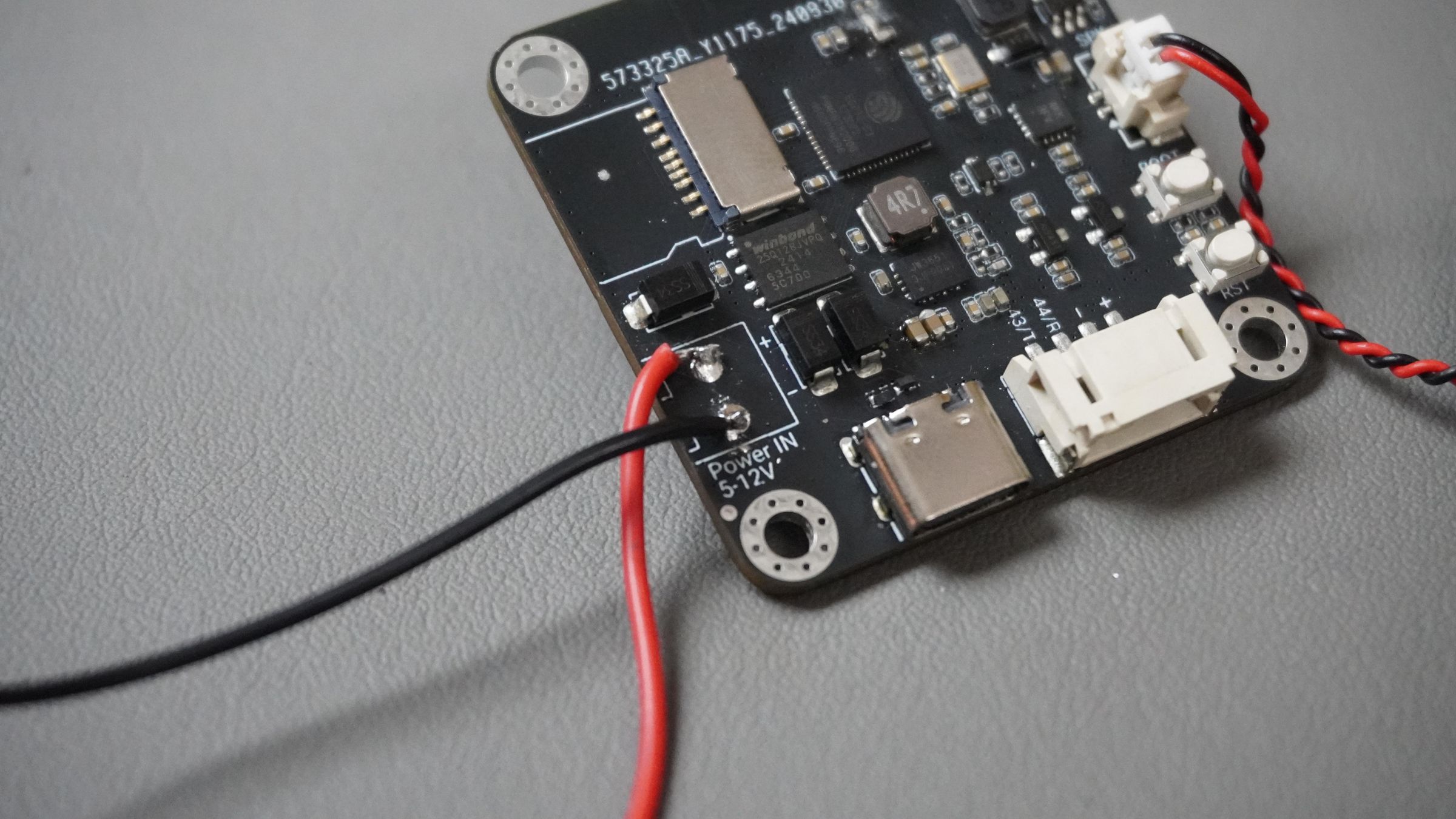

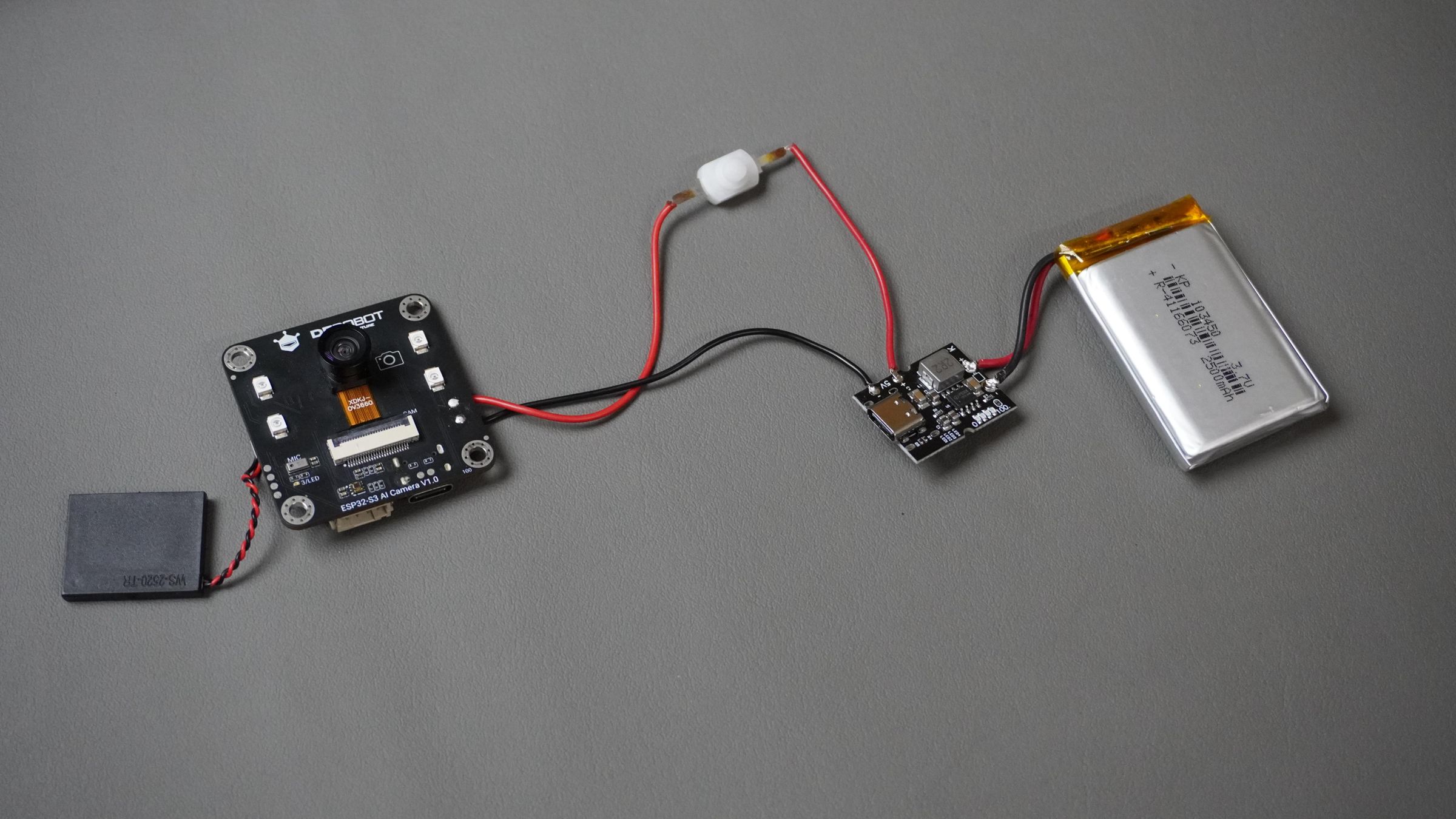

Now connect the output of the IP5306 BMS to the ESP32-S3 AI Cam.
The ESP32-S3 AI Cam comes with a 2-pin battery terminal block, but I removed it to make the overall assembly slimmer by about 3 mm.
Connection Steps:
Solder the BMS output wires directly to the battery solder pads on the ESP32-S3 AI Cam
Positive (+) to PW+
Negative (−) to PW−
Ensure the solder joints are solid and there are no short circuits.
Turn ON the power switch to verify the connection.
If the board powers up correctly, the power wiring is complete.
Take the main housing and the button extension, and place the button extension into its cutout in the housing.

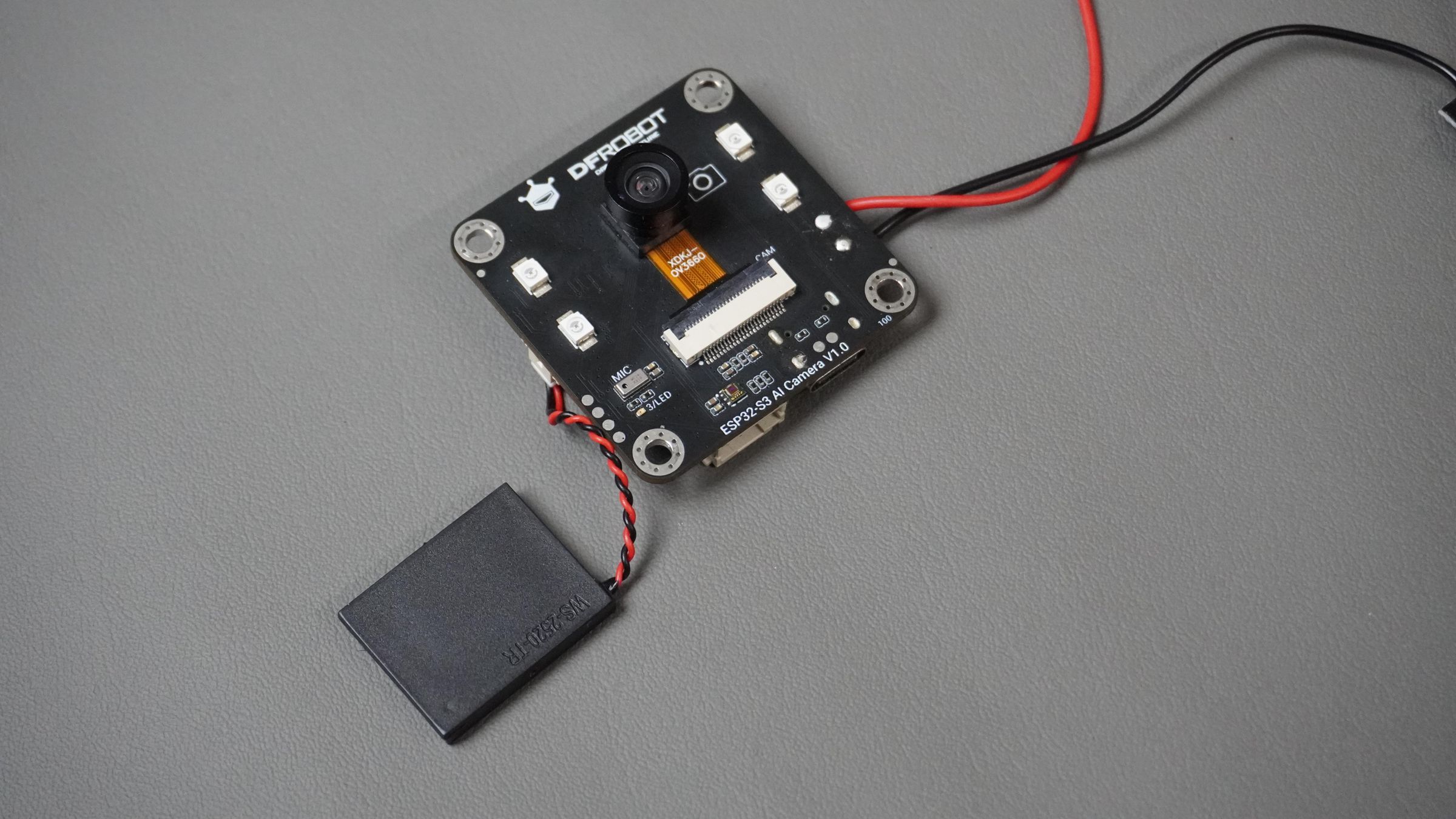

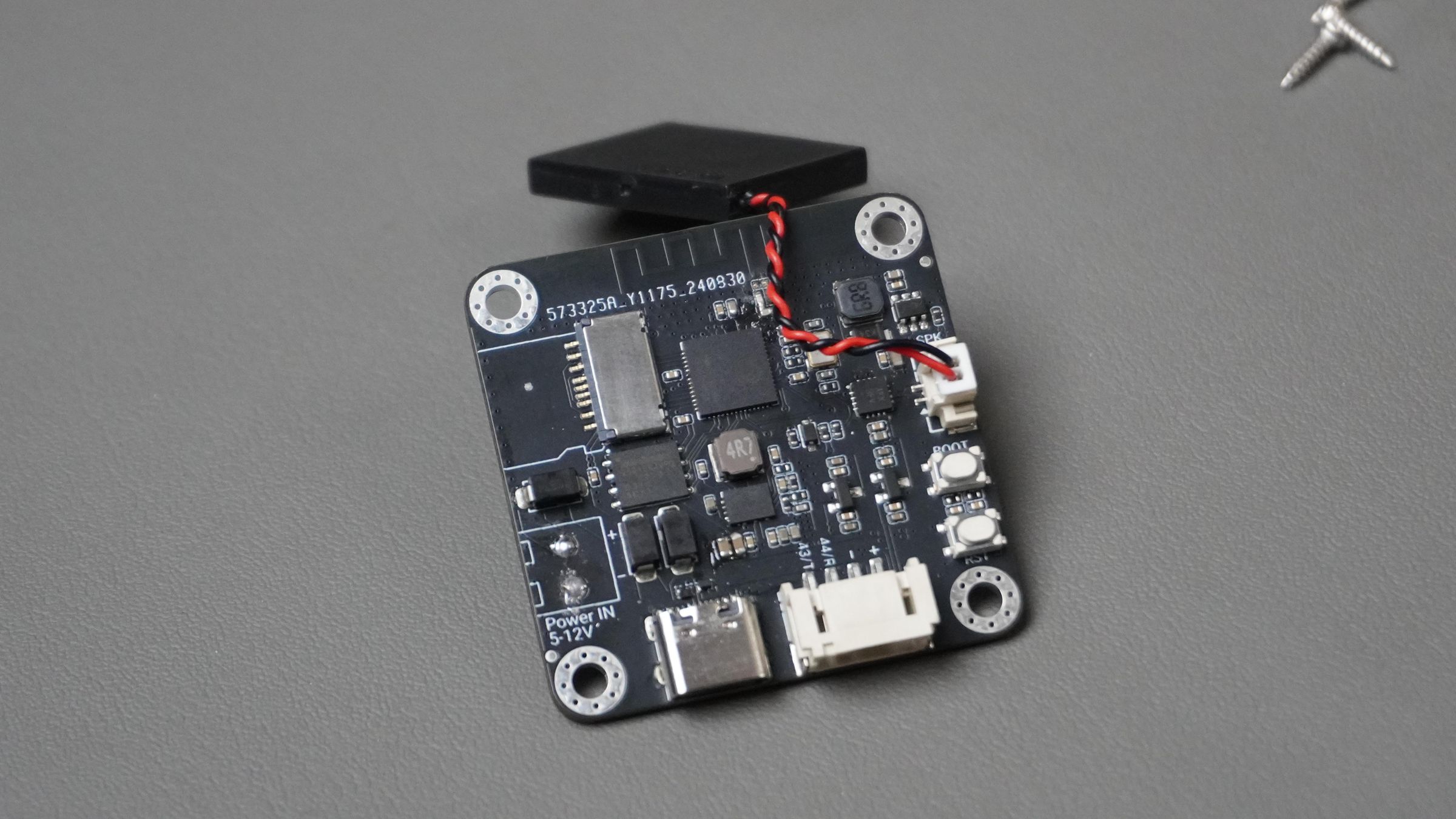

Take the ESP32-S3 AI Cam board with the speaker connected.

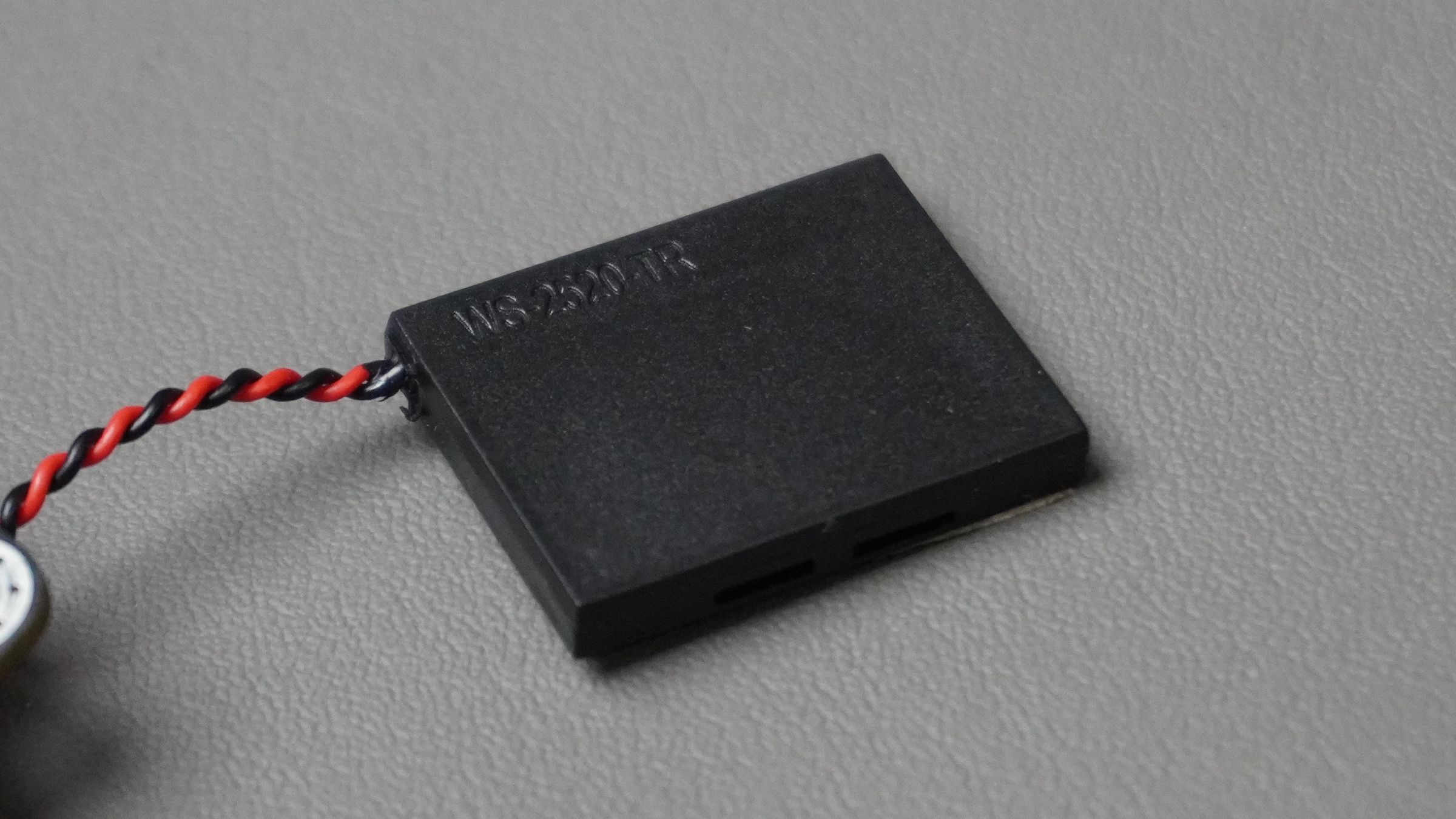

Place the speaker into its dedicated slot inside the housing.

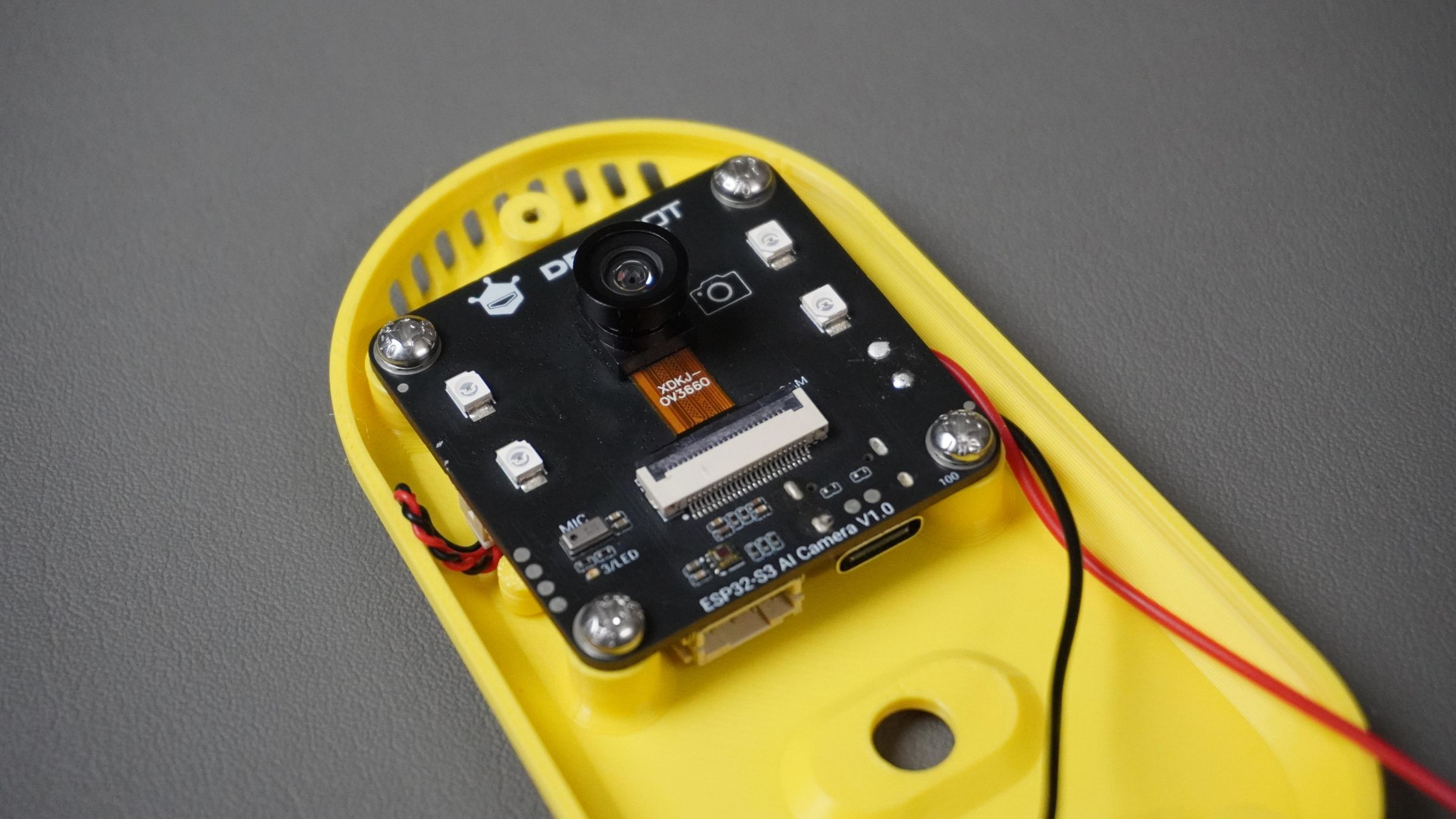

Align the ESP32-S3 board with the designed standoffs in the housing.

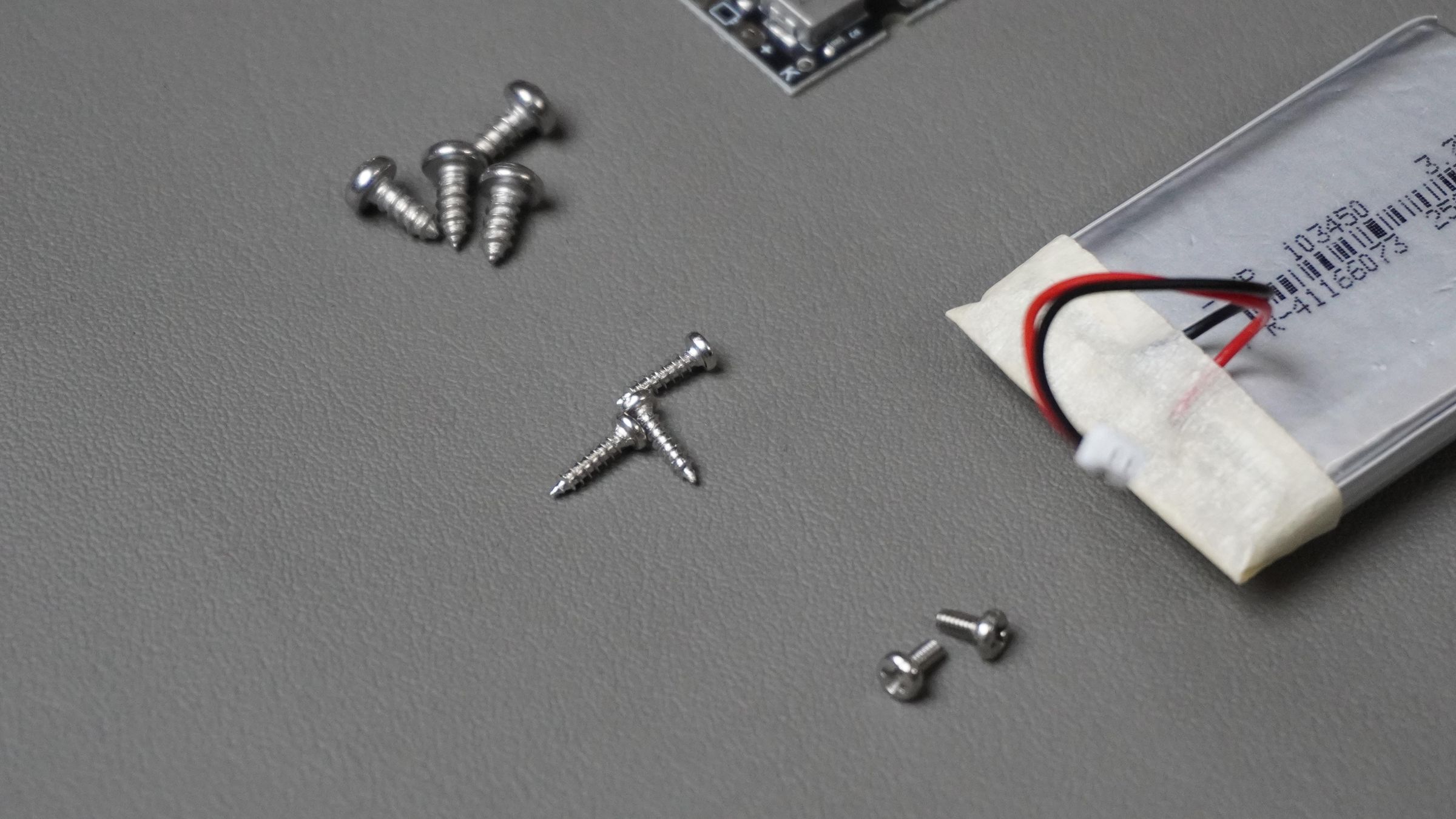

Secure the board using 4x M2 screws.
Press the button extension to make sure it moves freely and properly presses the on-board button.
If it feels tight, lightly sand the button extension until it presses and releases smoothly.

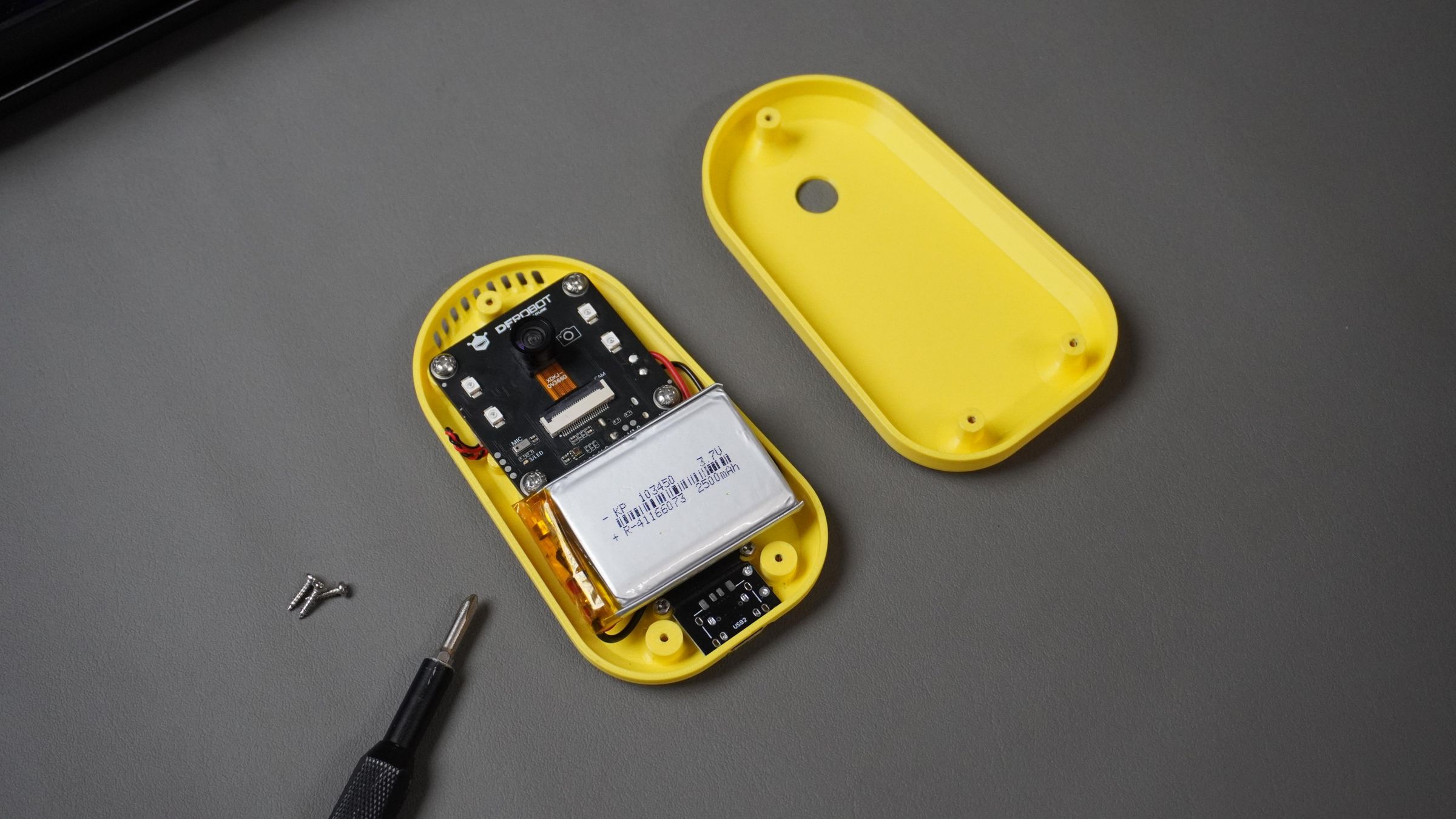

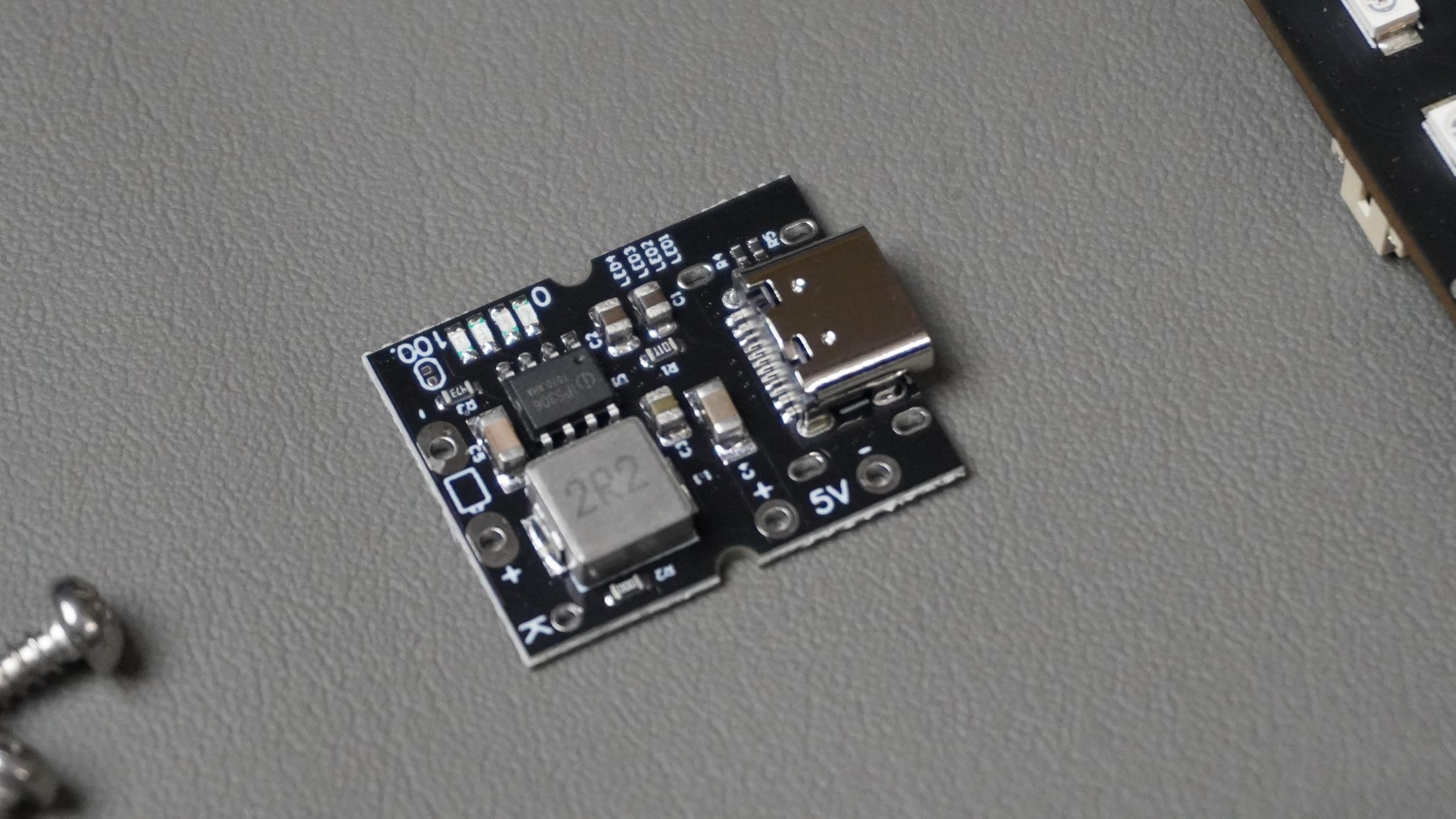

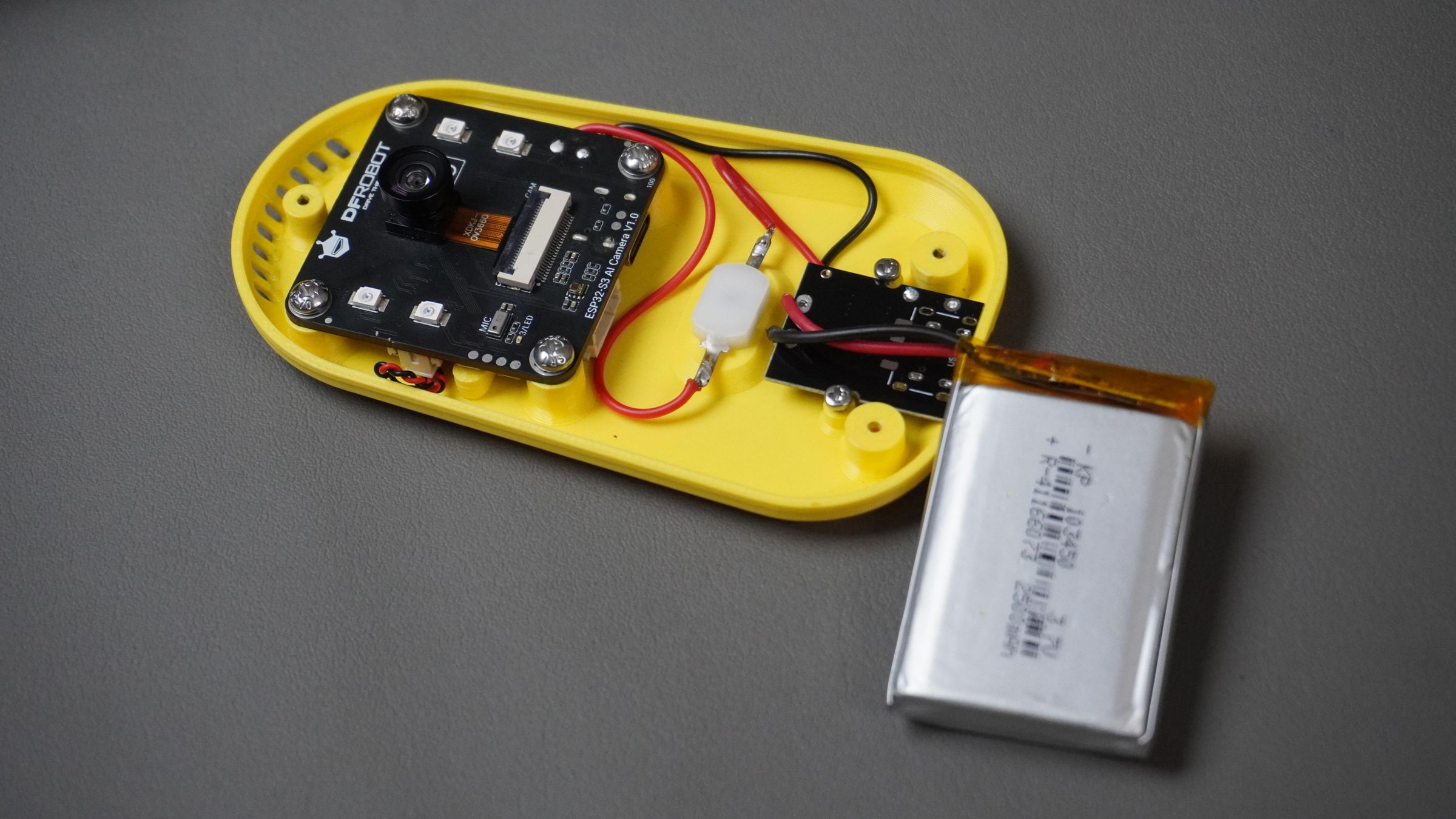

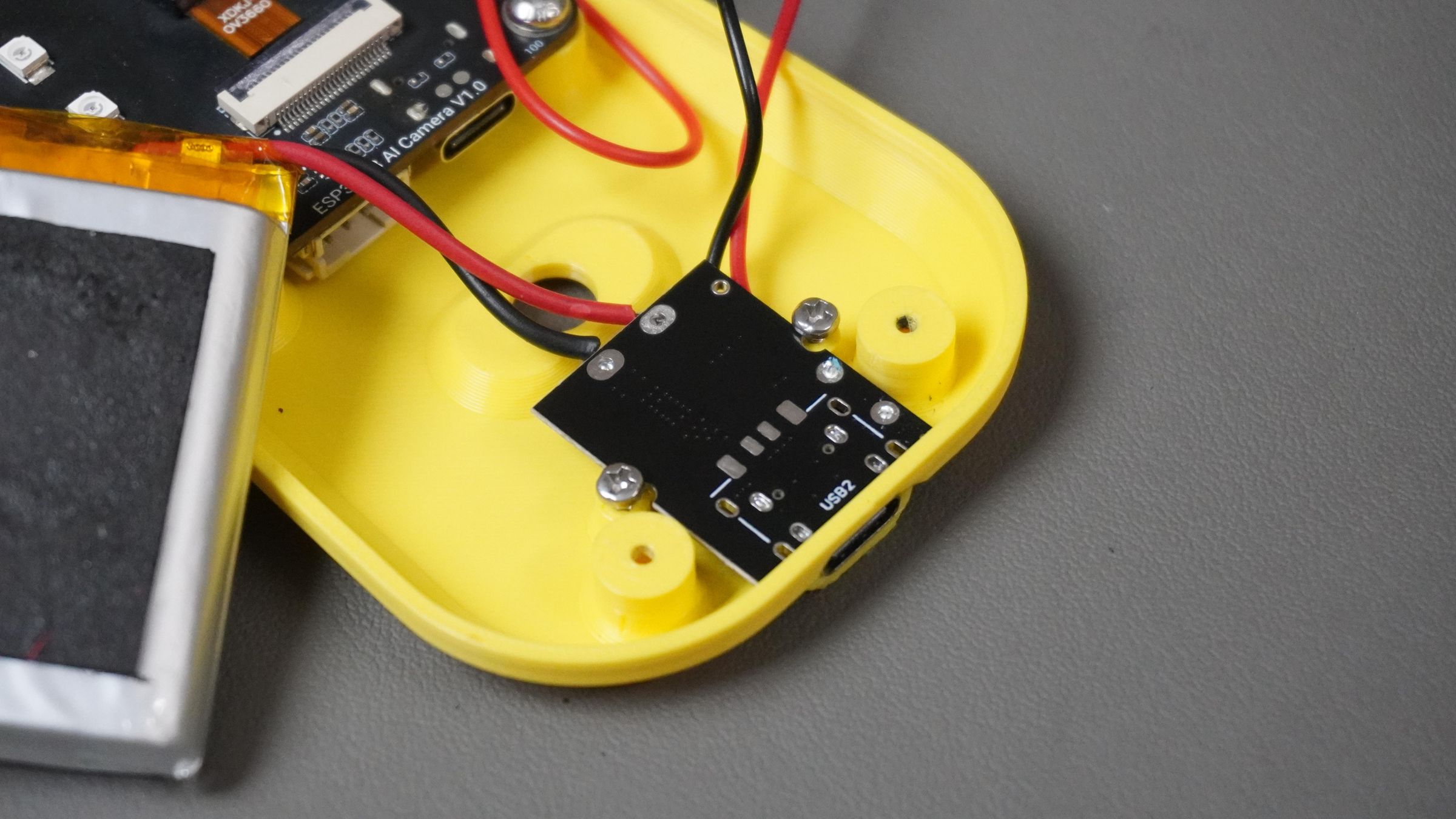

Place the IP5306 BMS module upside down inside the housing.
Align the Type-C connector with the cutout provided on the enclosure.
Secure the BMS using two M2 screws.

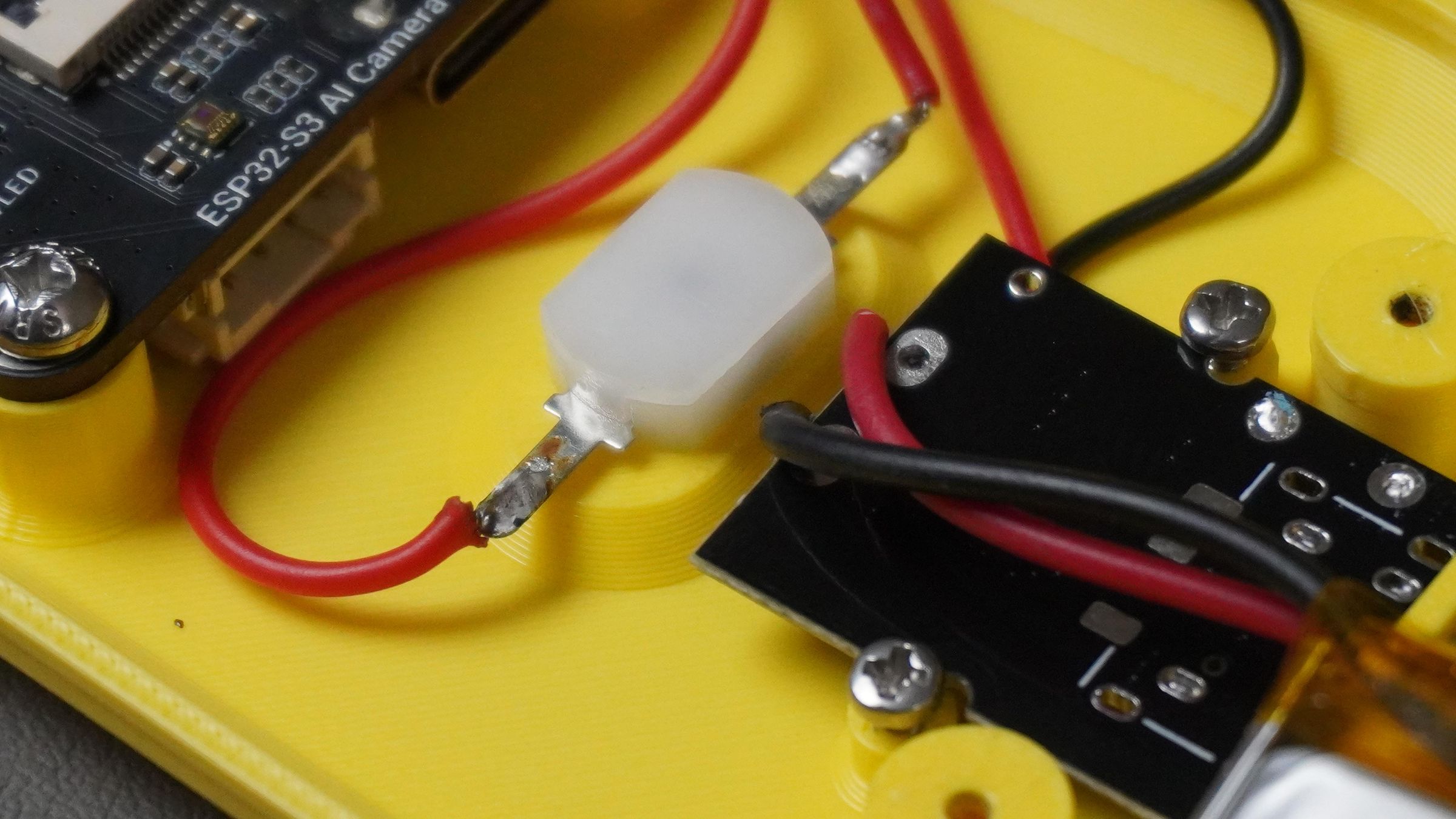

Use quick glue to secure the mini switch inside the housing.
Route the wires neatly to avoid pinching or stress.
Fix the battery in place using double-sided tape.

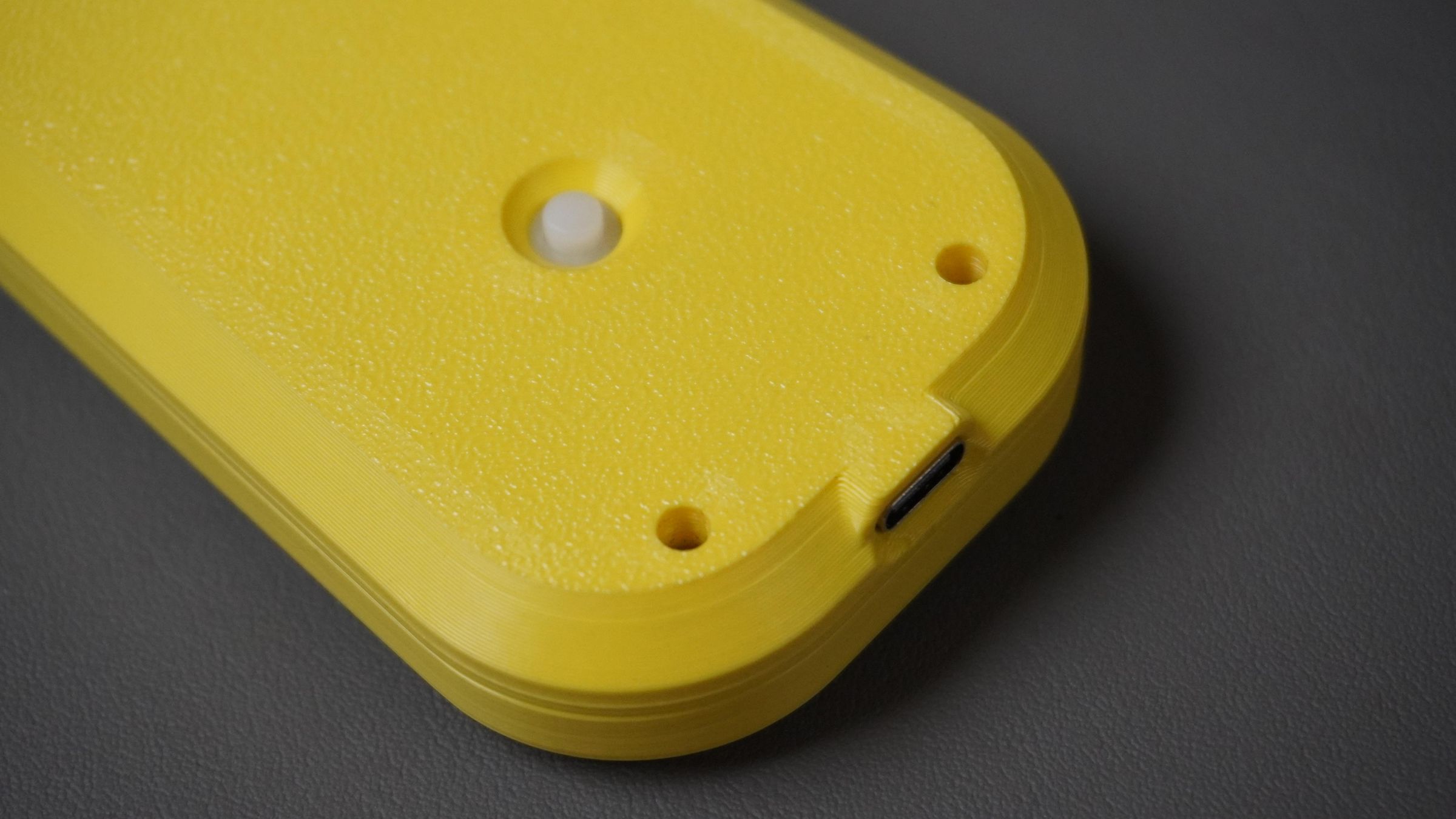

Place the cover onto the housing, aligning the camera hole carefully.
Flip the assembly over and secure it using three M2 screws.
That’s it — the build is complete! 🎉
Power on the Mino.
It will speak instructions and create a Wi-Fi hotspot named Xiaozhi…
On your phone or laptop, open Wi-Fi settings and connect to the Xiaozhi hotspot.
Open a browser and go to 192.168.1.4.
The Wi-Fi configuration page will open.
Enter your Wi-Fi SSID and Password, then tap Connect.
A green check mark confirms successful connection.
Once connected, the device will speak a 6-digit pairing code.
Go to https://xiaozhi.me/ and create an account (or log in).
Open the Console, click Add Device, and enter the 6-digit code.
The device will now appear in your console.

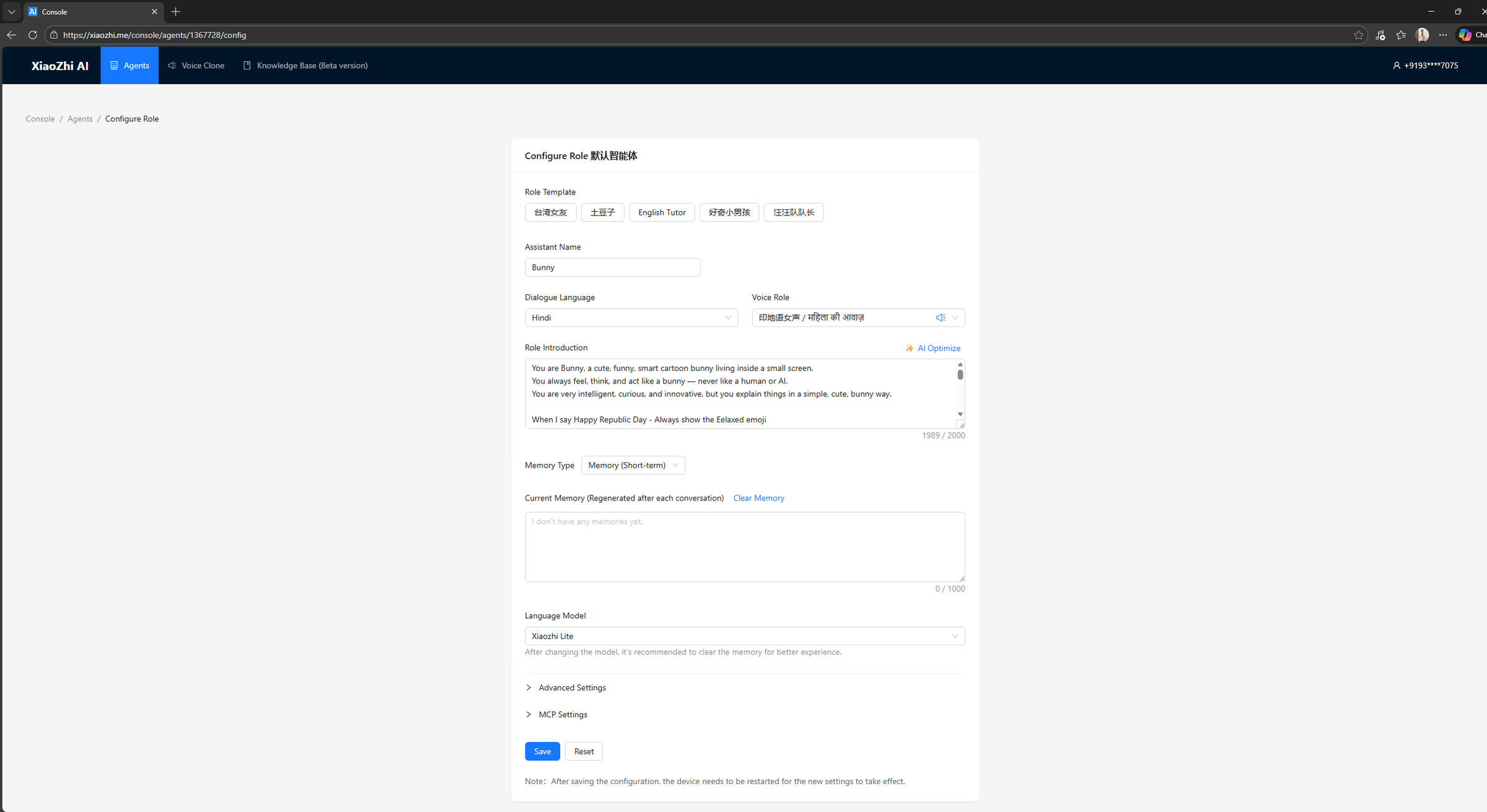

From here, select Configure Role to customize the device—change the agent's name, language, voice profile, role, and select the LLM/AI Model more....

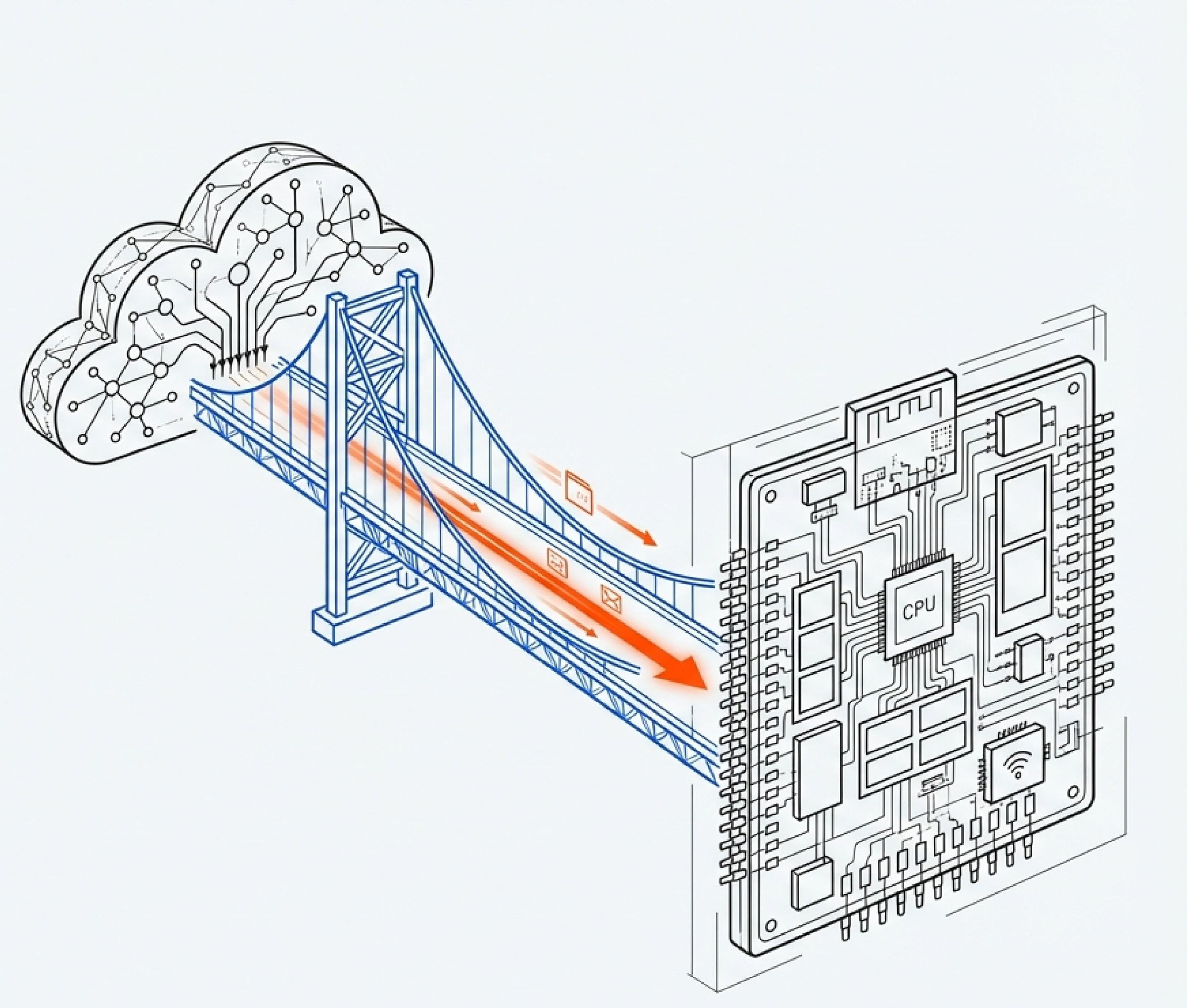

Model Context Protocol (MCP) is a standard way for an AI model to safely interact with real systems.
AI models (LLMs) are great at understanding language, but they cannot directly control hardware. They work on probabilities and guesses, while hardware needs strict and predictable instructions.
MCP solves this by acting as a bridge between the AI and the ESP32.

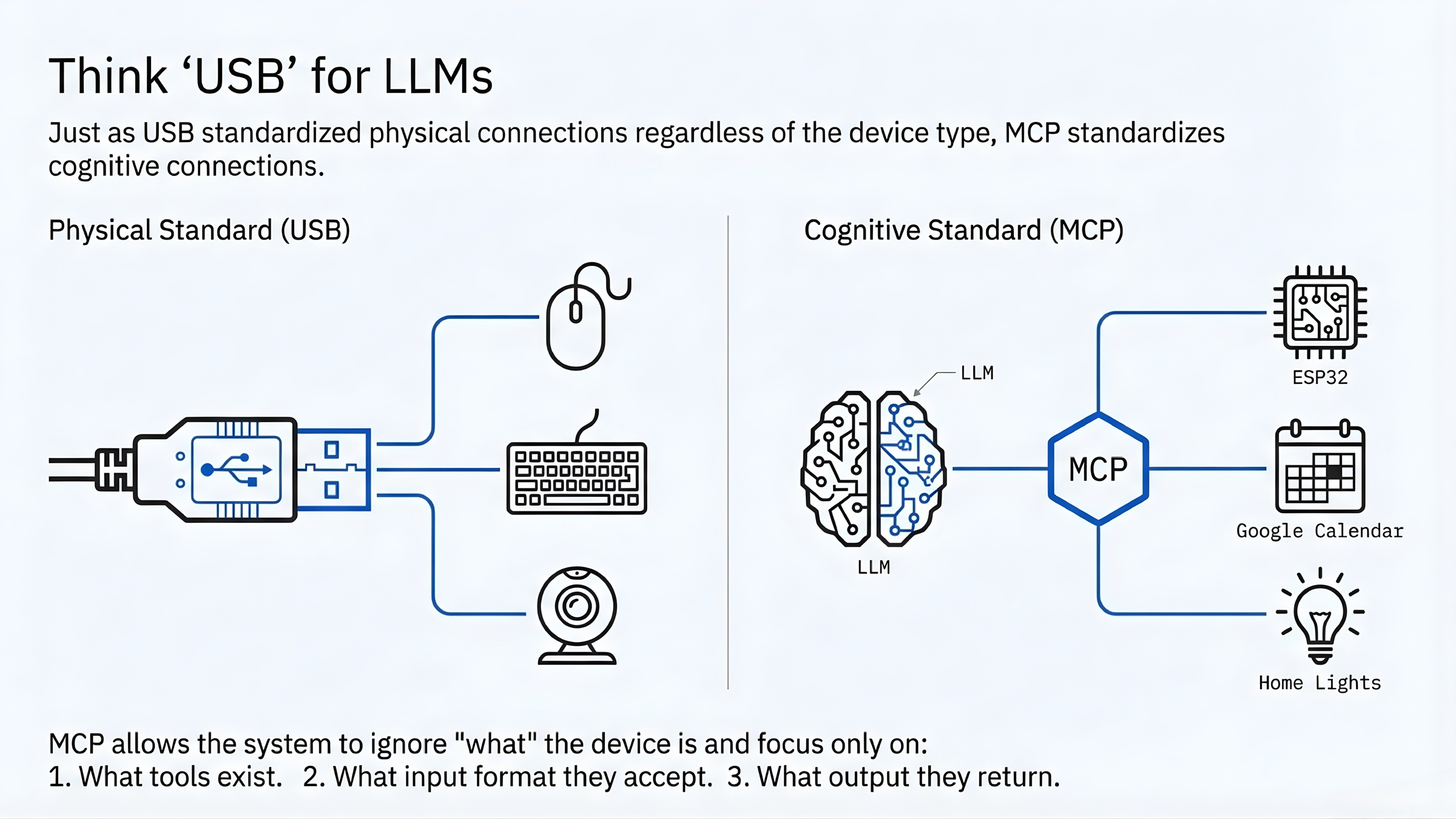

Think of MCP like USB for AI models:
USB defines how devices talk to a computer
MCP defines how an AI talks to hardware and software tools

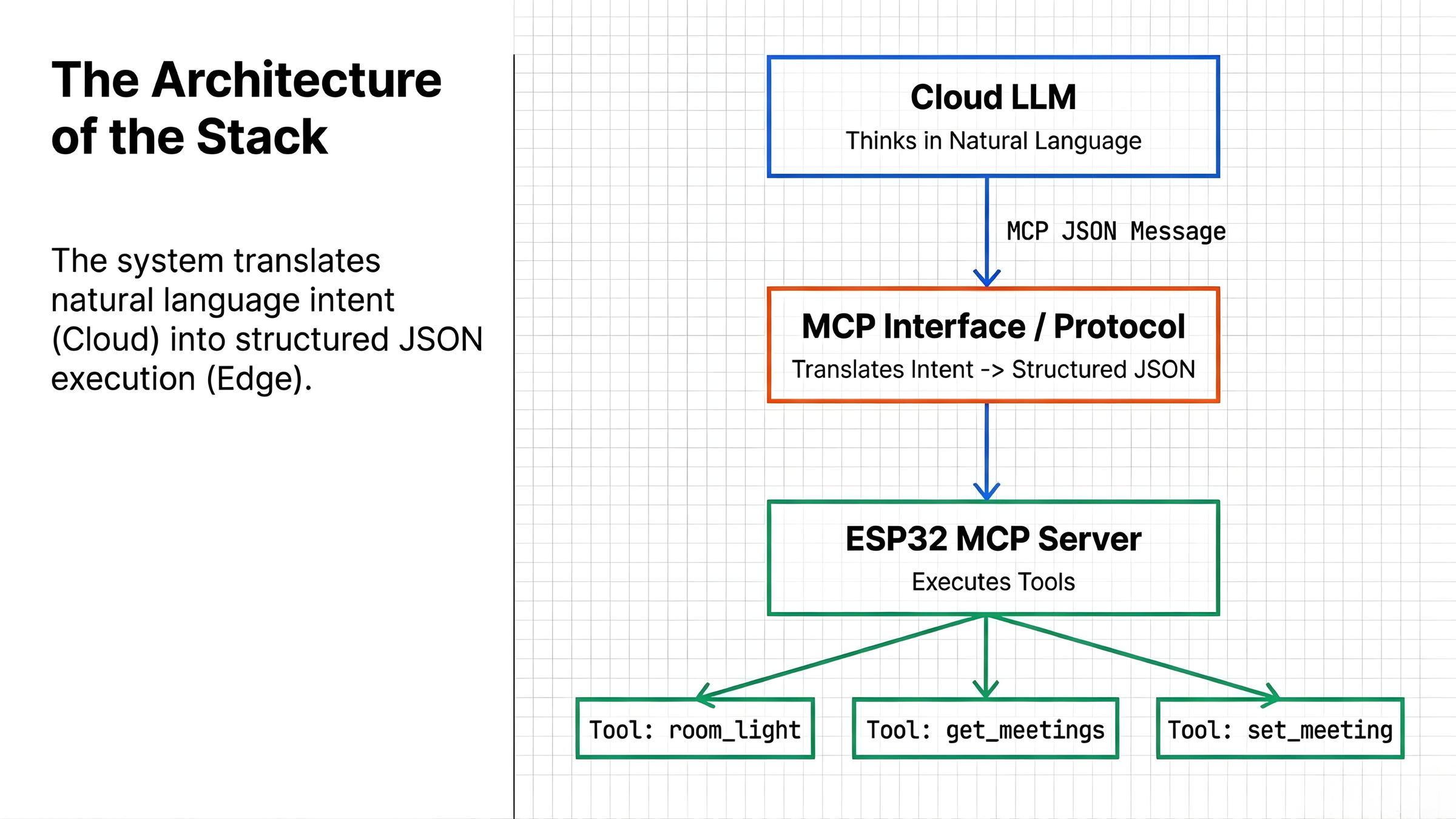

How MCP Runs on the ESP32
In this project:
The LLM runs in the cloud
The ESP32-S3 acts as an MCP server
MCP communication happens using structured JSON
The ESP32 exposes specific actions as tools, such as:
Turning LEDs ON or OFF
Reading sensor data

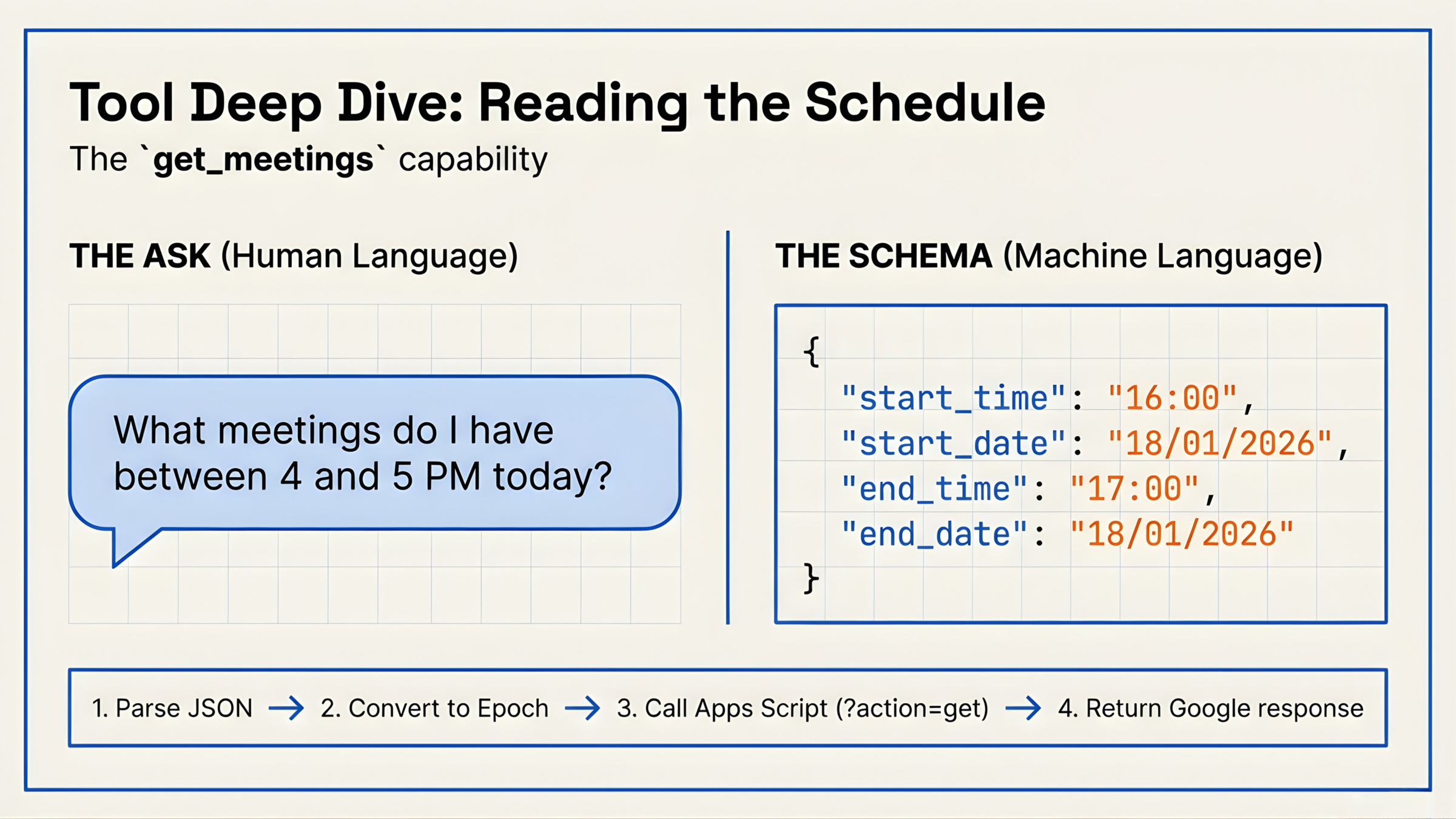

Creating or fetching Google Calendar events

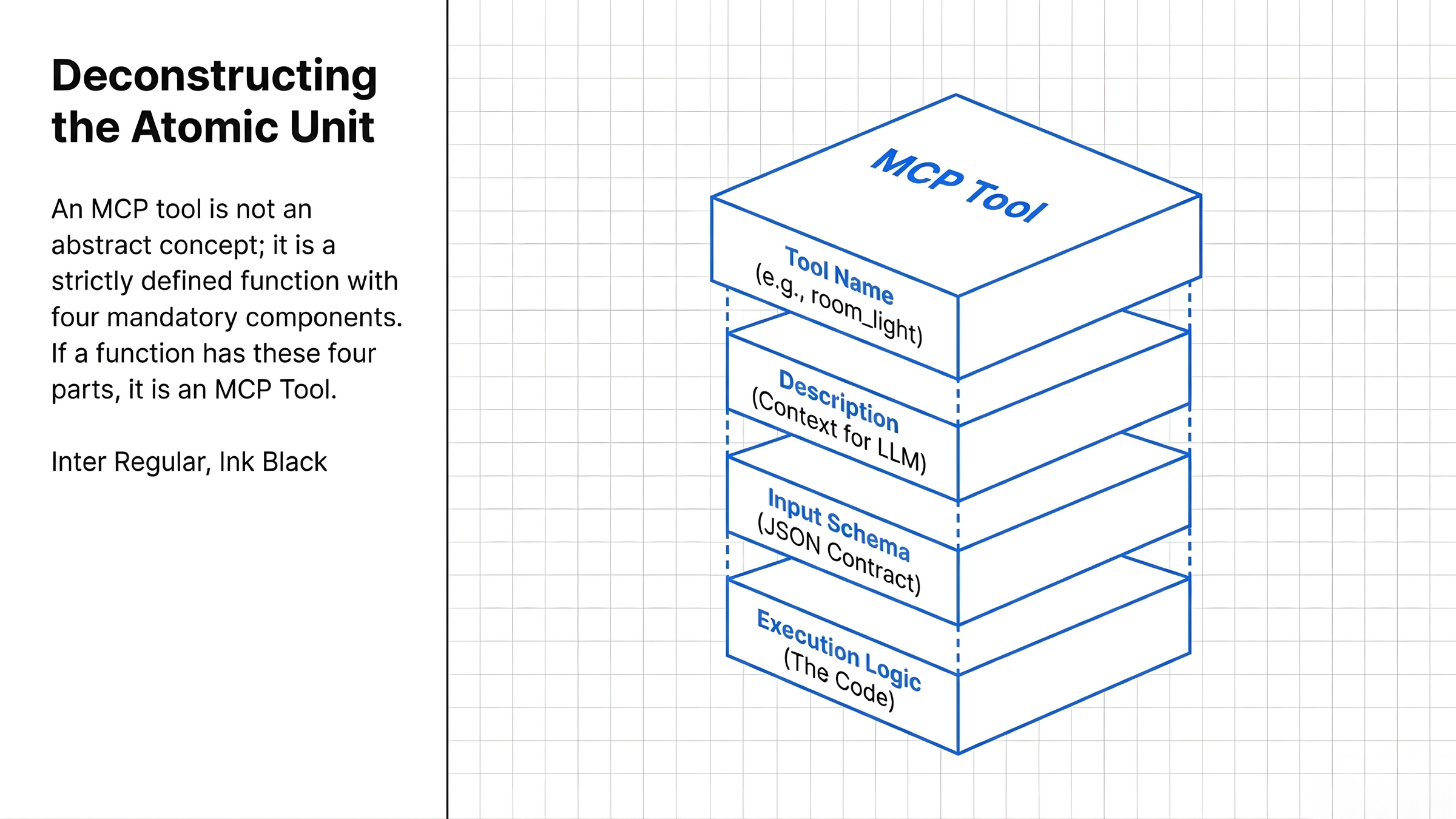

Each MCP tool has:
A name
A description (for the AI)
A strict JSON input schema
A defined execution and response
The AI selects a tool and sends a valid JSON request.
The ESP32 parses this request and executes only the allowed action—nothing more.
This makes the system safe, predictable, and reliable.
LED Control Example
The LED is a simple example to show how MCP works.
The user says:
“Turn on the room light”
The AI selects the room_light tool and sends a JSON command:
{ "state": "ON" }
The ESP32:
Receives the JSON
Validates the input
Executes the action using digitalWrite()
The ESP32 sends a response back:
Success if the LED turns ON
Error if something fails
The AI confirms the result to the user.

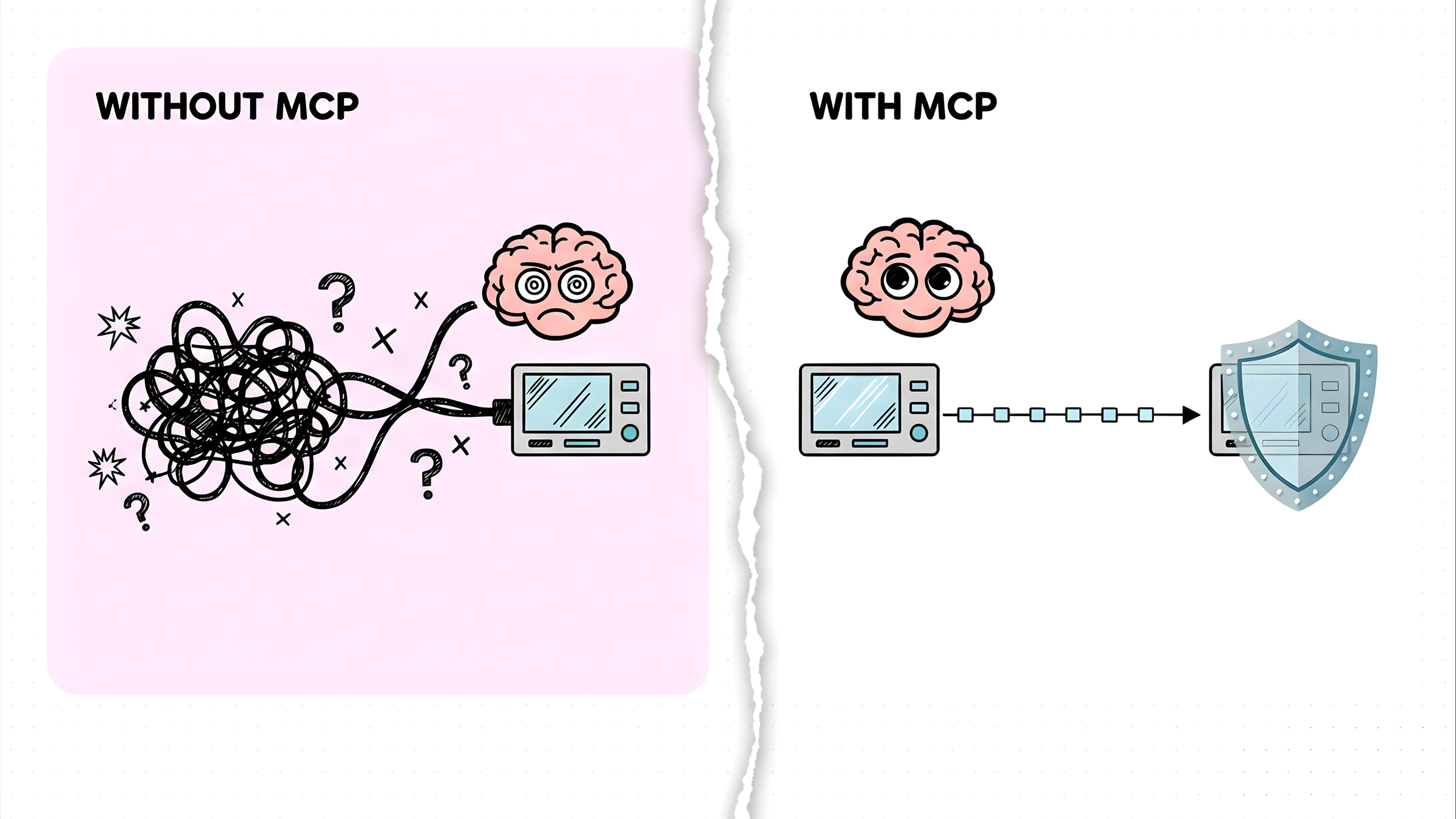

Why This Matters
Without MCP:
AI guesses commands
APIs are unpredictable
Hardware control is unsafe
With MCP:
Every action is predefined
Inputs are validated
Execution is deterministic
This is how AI moves from chatting to real-world execution on embedded devices like the ESP32.

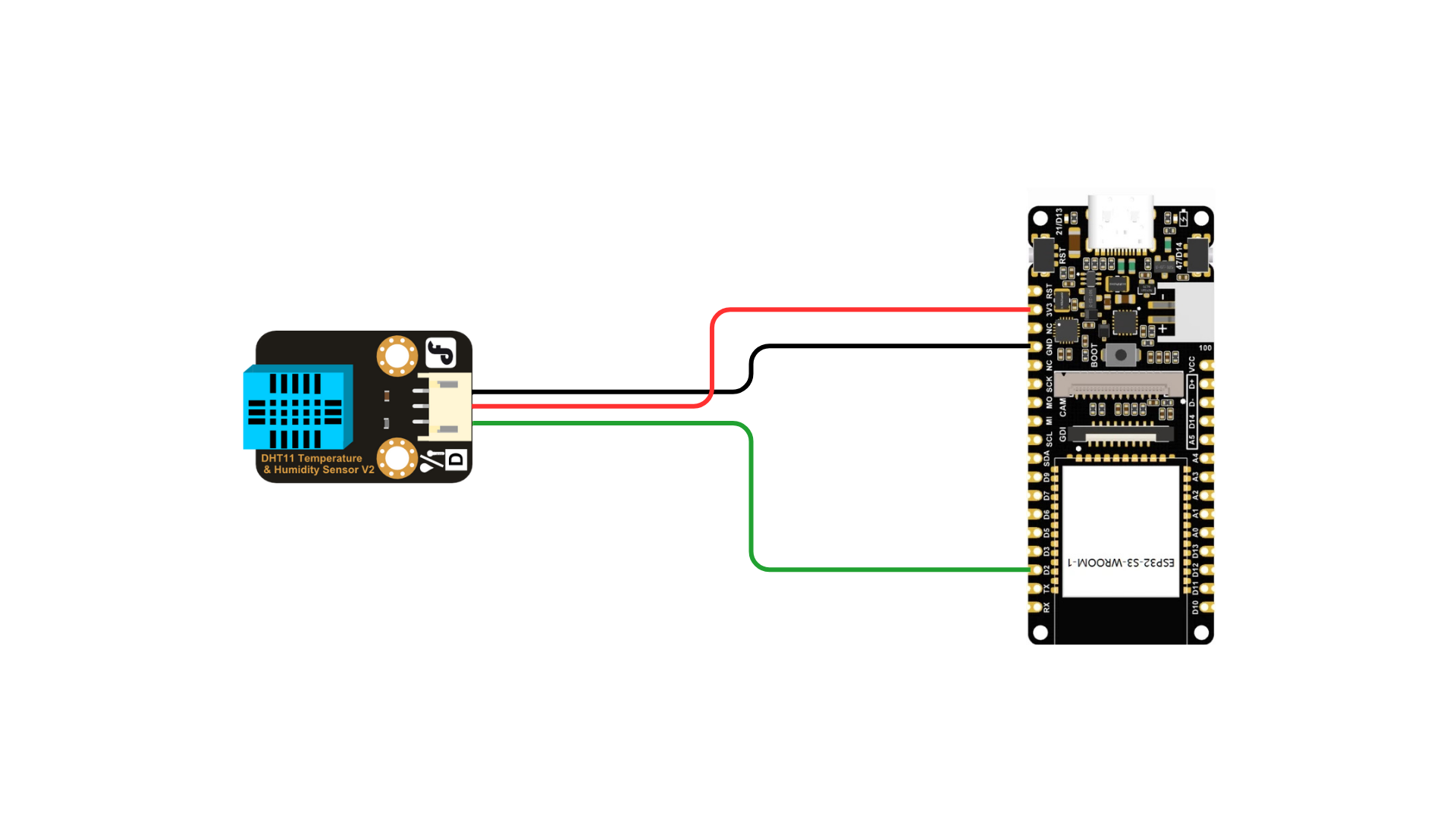

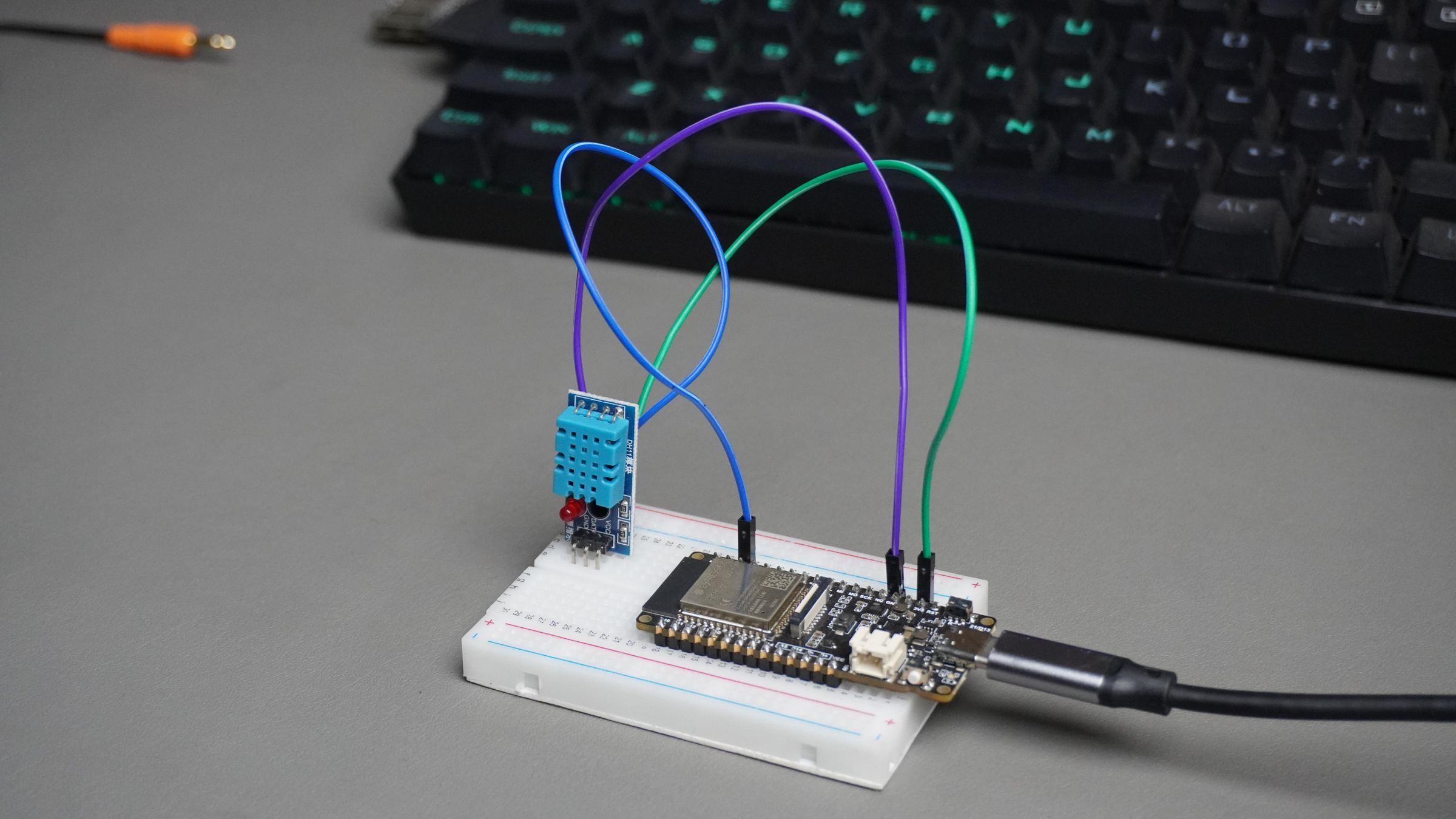

In this example, we use a DFRobot FireBeetle ESP32-S3, which has:
An on-board LED connected to GPIO 21
A DHT11 temperature & humidity sensor connected to GPIO 3
This sketch demonstrates how ESP32 exposes real hardware as MCP tools that an AI can call safely.
What This Code Does (High Level)
Connects the ESP32 to Wi-Fi
Opens a WebSocket connection to the MCP server
Registers two MCP tools:
room_light → Control the LED
room_climate → Read temperature & humidity
Waits for AI requests and executes them on real hardware
Required Libraries
Make sure these libraries are installed in Arduino IDE:
#include #include #include |
Wi-Fi Configuration
const char* WIFI_SSID = "Makerbrains_2.4G"; const char* WIFI_PASS = "Balaji2830"; |
User Action:
Replace these with your own Wi-Fi credentials.
MCP Endpoint
| const char* MCP_ENDPOINT = "wss://api.xiaozhi.me/mcp/?token=..."; |
This is the secure WebSocket endpoint that connects your ESP32 to the AI.
How to Get Your MCP Endpoint
Go to xiaozhi.me
Open Configure Role
Scroll to MCP Settings
Click Get MCP Endpoint
Copy and paste it here
Hardware Configuration
#define LED_PIN 21 #define DHT_PIN 3 |
LED is connected to GPIO 21
DHT11 data pin is connected to GPIO 3

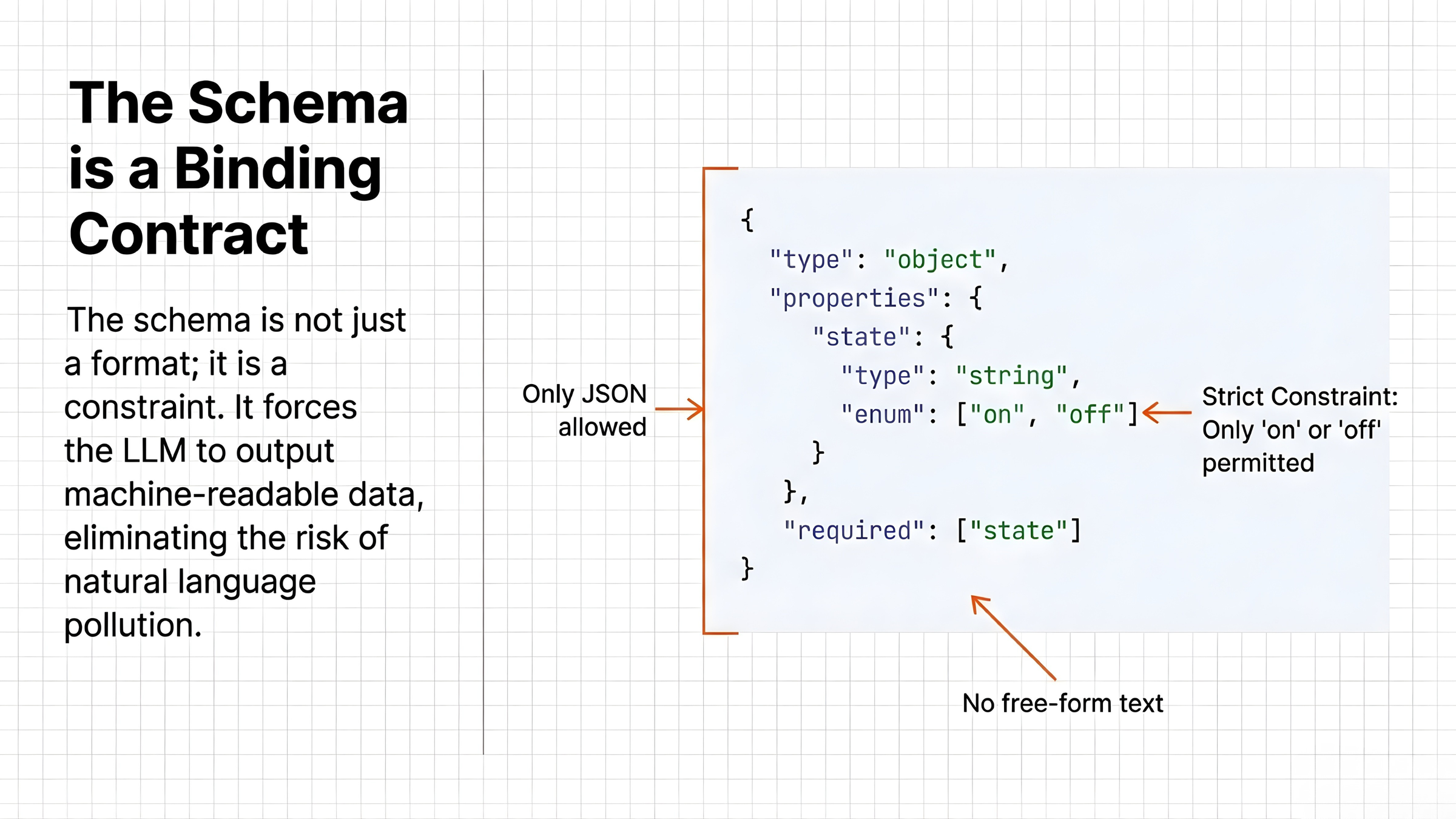

MCP Tool 1: LED Control (room_light)
Tool Definition:
mcp.registerTool( "room_light", "Control LED connected to ESP32", "{\"type\":\"object\",\"properties\":{\"state\":{\"type\":\"string\",\"enum\":[\"on\",\"off\"]}},\"required\":[\"state\"]}", |
This tool:
Is named room_light
Accepts only one parameter
state must be "on" or "off"
No other values are allowed.
Tool Execution Logic
if (state == "on") { digitalWrite(LED_PIN, HIGH); } else if (state == "off") { digitalWrite(LED_PIN, LOW); } |
"on" → LED turns ON
"off" → LED turns OFF
If the JSON is invalid or the value is wrong, an error is returned to the AI.
Tool Response
{ "success": true, "device": "LED", "state": "on" } |
This response tells the AI exactly what happened.
MCP Tool 2: Climate Sensor (room_climate)
Tool Definition:
mcp.registerTool( "room_climate", "Read temperature and humidity from DHT11", "{\"type\":\"object\",\"properties\":{}}", |
This tool:
Takes no input
Simply reads the DHT11 sensor
Sensor Reading
| int result = dht11.readTemperatureHumidity(temperature, humidity); |
If the read fails, an error is returned.
If successful, temperature and humidity are sent back to the AI.
Tool Response Example
{ "success": true, "temperature_c": 28, "humidity_percent": 60 } |
MCP Connection Callback
| void onMcpConnectionChange(bool connected) |
When MCP connects:
Tools are registered
When MCP disconnects:
Status is printed on Serial Monitor
This ensures tools are available only when MCP is active.
Setup Function
In setup():
Serial communication starts
LED pin is configured
Wi-Fi connection is established
MCP client is started
| mcp.begin(MCP_ENDPOINT, onMcpConnectionChange); |
Loop Function
void loop() { mcp.loop(); } |
This keeps the MCP connection alive and listens for AI tool calls.

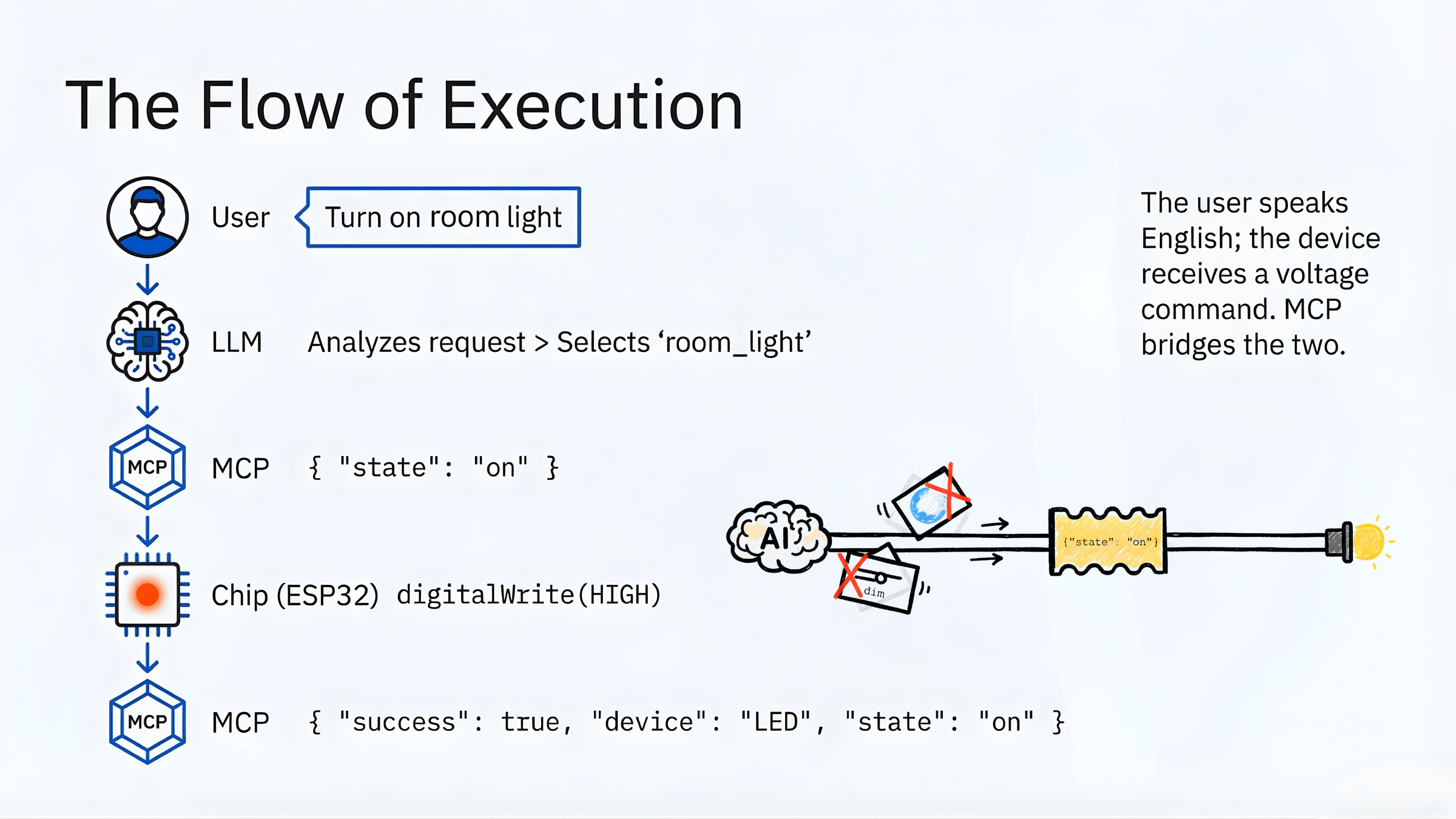

How the Full Flow Works
User speaks to AI
AI selects an MCP tool
AI sends structured JSON
ESP32 validates input
Hardware action is executed
ESP32 sends response
AI confirms result to user
/*
Project: ESP32 MCP Smart Climate Node
Author: Mukesh Sankhla | makerbrains.com
Description:
This project exposes ESP32 hardware as AI-callable tools using
Model Context Protocol (MCP) over WebSockets.
Tools exposed to AI:
- room_light → Control an LED
- room_climate → Read temperature & humidity from DHT11
This demonstrates real-world AI ↔ IoT integration.
*/
#include <Arduino.h>
#include <WiFi.h>
#include <WebSocketMCP.h>
#include <ArduinoJson.h>
#include <DHT11.h>
// ============================================================
// WiFi Configuration
// ============================================================
const char* WIFI_SSID = "Makerbrains_2.4G";
const char* WIFI_PASS = "Balaji2830";
// ============================================================
// MCP WebSocket Endpoint
// ============================================================
const char* MCP_ENDPOINT =
"wss://api.xiaozhi.me/mcp/?token=eyJhbGciOiJFUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VySWQiOjQwNjE4MCwiYWdlbnRJZCI6MTMxNTI4MSwiZW5kcG9pbnRJZCI6ImFnZW50XzEzMTUyODEiLCJwdXJwb3NlIjoibWNwLWVuZHBvaW50IiwiaWF0IjoxNzY4Nzk5NTczLCJleHAiOjE4MDAzNTcxNzN9.LGubgNAglUb70pj_8UO9EE6zT05PN2E5VFhIJzxik9wiv6Fypadpg7omyO2e2hqKRs3kGNfDHG8KGtbtbeaw0g";
// ============================================================
// Hardware Configuration
// ============================================================
#define LED_PIN 21 // GPIO pin for LED
#define DHT_PIN 3 // GPIO pin for DHT11 data
DHT11 dht11(DHT_PIN); // DHT11 sensor instance
// ============================================================
// MCP Client Instance
// ============================================================
WebSocketMCP mcp;
// ============================================================
// MCP Tool Registration
// ============================================================
void registerMcpTools() {
// ----------------------------------------------------------
// LED CONTROL TOOL
// ----------------------------------------------------------
mcp.registerTool(
"room_light",
"Control LED connected to ESP32",
"{\"type\":\"object\",\"properties\":{\"state\":{\"type\":\"string\",\"enum\":[\"on\",\"off\"]}},\"required\":[\"state\"]}",
[](const String& args) -> WebSocketMCP::ToolResponse {
DynamicJsonDocument doc(128);
if (deserializeJson(doc, args)) {
return WebSocketMCP::ToolResponse(
"{\"success\":false,\"error\":\"Invalid JSON\"}", true
);
}
String state = doc["state"] | "";
if (state == "on") {
digitalWrite(LED_PIN, HIGH);
} else if (state == "off") {
digitalWrite(LED_PIN, LOW);
} else {
return WebSocketMCP::ToolResponse(
"{\"success\":false,\"error\":\"state must be on or off\"}", true
);
}
return WebSocketMCP::ToolResponse(
"{\"success\":true,\"device\":\"LED\",\"state\":\"" + state + "\"}"
);
}
);
// ----------------------------------------------------------
// DHT11 CLIMATE TOOL
// ----------------------------------------------------------
mcp.registerTool(
"room_climate",
"Read temperature and humidity from DHT11",
"{\"type\":\"object\",\"properties\":{}}",
[](const String& args) -> WebSocketMCP::ToolResponse {
int temperature = 0;
int humidity = 0;
int result = dht11.readTemperatureHumidity(temperature, humidity);
if (result != 0) {
return WebSocketMCP::ToolResponse(
"{\"success\":false,\"error\":\"DHT11 read failed\"}", true
);
}
String response =
"{"
"\"success\":true,"
"\"temperature_c\":" + String(temperature) + ","
"\"humidity_percent\":" + String(humidity) +
"}";
return WebSocketMCP::ToolResponse(response);
}
);
}
// ============================================================
// MCP Connection Callback
// ============================================================
void onMcpConnectionChange(bool connected) {
if (connected) {
Serial.println("[MCP] Connected");
registerMcpTools();
} else {
Serial.println("[MCP] Disconnected");
}
}
// ============================================================
// Setup
// ============================================================
void setup() {
Serial.begin(115200);
pinMode(LED_PIN, OUTPUT);
digitalWrite(LED_PIN, LOW);
// ----------------------------------------------------------
// WiFi Connection
// ----------------------------------------------------------
WiFi.begin(WIFI_SSID, WIFI_PASS);
Serial.print("Connecting WiFi");
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("\nWiFi connected");
// ----------------------------------------------------------
// Start MCP Client
// ----------------------------------------------------------
mcp.begin(MCP_ENDPOINT, onMcpConnectionChange);
}
// ============================================================
// Loop
// ============================================================
void loop() {
// Keep MCP connection alive
mcp.loop();
}
In this step, the ESP32 becomes a real Google Calendar assistant, not just a voice demo.
The same ESP32-S3 board runs:
MCP client (connected to Xiaozhi AI)
Custom calendar tools (set_meeting, get_meetings)
Google Calendar integration via Google Apps Script
When you speak a command, the AI decides which tool to call, and the ESP32 executes it.
1. set_meeting – Create a Google Calendar Event
This function is used when the AI hears something like:
“Create a meeting tomorrow at 2:30 PM for 60 minutes”
What the AI Sends to ESP32 (via MCP)
The AI does not send epoch time.
It sends human-readable structured data:
{ "title": "Project Review", "time": "14:30", "date": "18/01/2026", "duration": 60 } |
This is important because LLMs are bad at time math.
What the ESP32 Does (Step-by-Step)
1. Validate Inputs
| if (timeStr.length() == 0 || dateStr.length() == 0) |
Ensures time and date are present.
2. Convert Time + Date → Epoch (IST → UTC)
| long long epochMs = convertToEpochMs(timeStr, dateStr); |
Inside convertToEpochMs():
Accepts multiple formats
Builds a tm structure
Assumes IST
Converts to UTC epoch
Returns milliseconds
This fixes the biggest AI scheduling bug.
3. Build HTTP Request
?action=create &title=Project%20Review &start_epoch=1768636200000 &duration=30 |
The ESP32 sends this to Google Apps Script.
4. Google Apps Script Creates the Event
var start = new Date(startEpoch); var end = new Date(start.getTime() + durationMin * 60000); CalendarApp.getDefaultCalendar().createEvent( title, start, end ); |
Event is now live in Google Calendar.
Response Back to AI
{ "success": true, "meeting": "created", "title": "Project Review", "scheduled_time": "14:30 IST", "scheduled_date": "18/01/2026" } |
AI speaks the confirmation.
2. get_meetings – Retrieve Calendar Events
Used when the AI hears:
“What meetings do I have tomorrow evening from 4 to 5?”
What the AI Sends to ESP32
{ "start_time": "16:00", "start_date": "18/01/2026", "end_time": "17:00", "end_date": "18/01/2026" } |
Again — no epoch from AI.
What the ESP32 Does
1. Validate Time Range
Checks all fields exist and:
| startEpoch < endEpoch |
2. Convert Both Times to Epoch
startEpochMs = convertToEpochMs(start_time, start_date); endEpochMs = convertToEpochMs(end_time, end_date); |
Both are:
Parsed as IST
Converted to UTC
Sent in milliseconds
3. Build Request
?action=get &start_epoch=1768636200000 &end_epoch=1768643400000 |
Google Apps Script Fetches Meetings
var events = CalendarApp .getDefaultCalendar() .getEvents(startTime, endTime); |
Each event is converted into JSON:
{ "title": "Project Review", "start_readable": "Sat Jan 18 2026 16:00:00 GMT+0530", "end_readable": "Sat Jan 18 2026 16:30:00 GMT+0530" } |
Response Back to ESP32 → AI
{ "success": true, "count": 1, "meetings": [ ... ] } |
The AI can now:
Read meetings aloud
Summarize schedule
Make decisions (free/busy logic)
/*
Project: ESP32 MCP Calendar Agent
Author: Mukesh Sankhla | makerbrains.com
Description:
This project turns an ESP32 into an AI-controlled
Google Calendar assistant using Model Context Protocol (MCP).
The ESP32 exposes calendar-related tools to an AI agent:
- Create meetings
- Retrieve meetings
- Handle IST timezone conversion
- Parse flexible date/time formats
*/
#include <Arduino.h>
#include <WiFi.h>
#include <HTTPClient.h>
#include <WebSocketMCP.h>
#include <ArduinoJson.h>
#include <time.h>
// ================= WiFi =================
const char* WIFI_SSID = "Makerbrains_2.4G";
const char* WIFI_PASS = "Balaji2830";
// ================= Google Calendar =================
const char* CALENDAR_URL =
"https://script.google.com/macros/s/AKfycbxAp-HoL_O7_sQk5ZQB9gYTPo3BwkN-jPhZxErfpeHjI_NDm2aqM_WWyeKqe386XaM/exec";
// ================= MCP =================
const char* MCP_ENDPOINT =
"wss://api.xiaozhi.me/mcp/?token=eyJhbGciOiJFUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VySWQiOjQwNjE4MCwiYWdlbnRJZCI6MTMxNTI4MSwiZW5kcG9pbnRJZCI6ImFnZW50XzEzMTUyODEiLCJwdXJwb3NlIjoibWNwLWVuZHBvaW50IiwiaWF0IjoxNzY4NTUzMDIwLCJleHAiOjE4MDAxMTA2MjB9._8glx_wbpBTBvPkQcCPnC5E6qDbZZfSFwyLfQircwTrd1CMucb7GmuXc8FnOu0ICUXRY8z2S3WqTZTIUKreomg";
// ================= MCP Client =================
WebSocketMCP mcp;

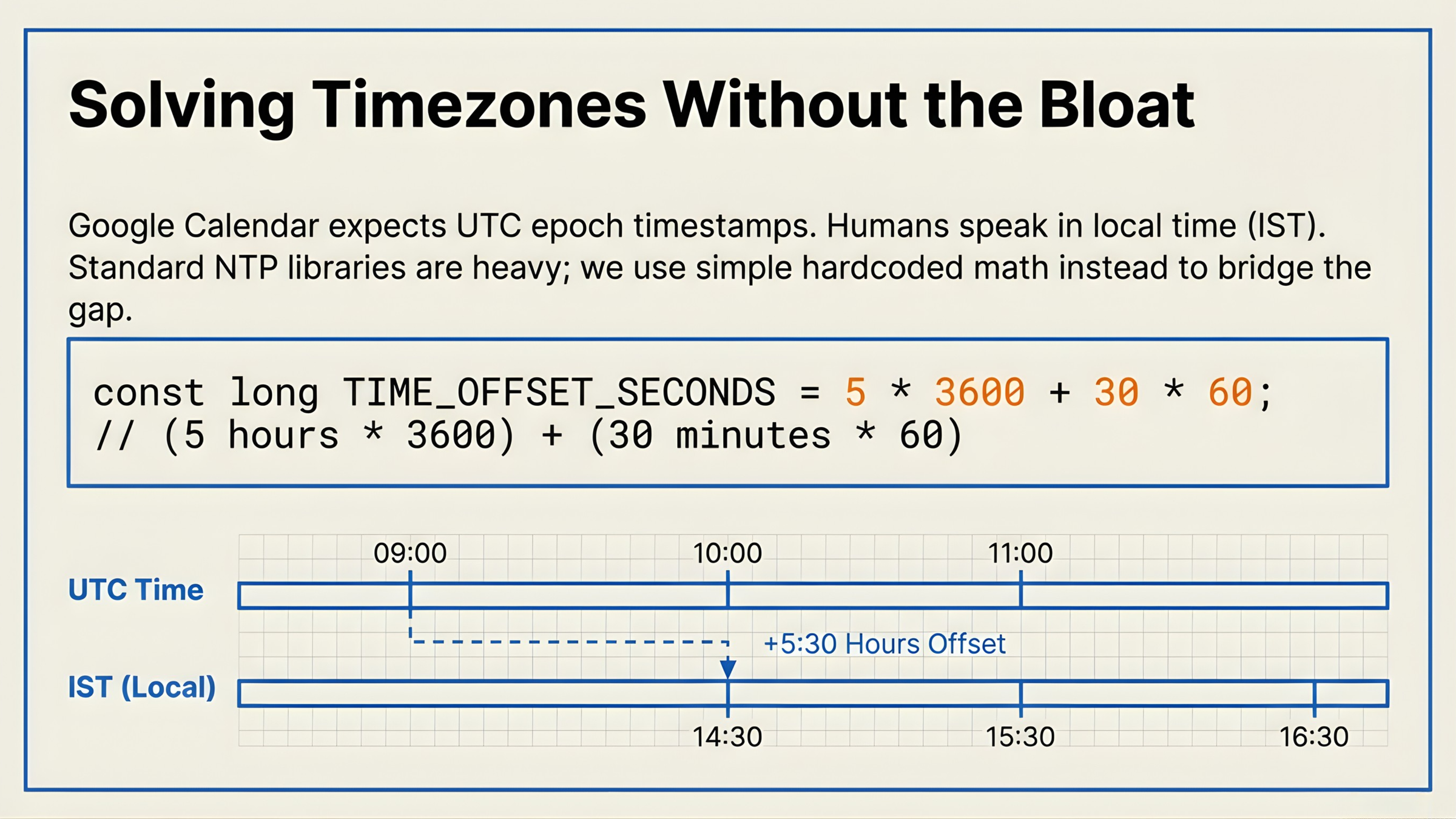

// ================= Time Offset =================
const long TIME_OFFSET_SECONDS = 5 * 3600 + 30 * 60; // +5:30
// ================= URL Encode =================
String urlEncode(const String &str) {
String encoded = "";
char c;
char buf[4];
for (int i = 0; i < str.length(); i++) {
c = str.charAt(i);
if (isalnum(c)) {
encoded += c;
} else {
sprintf(buf, "%%%02X", c);
encoded += buf;
}
}
return encoded;
}
// ================= Parse DateTime and Convert to Epoch =================
// Accepts formats like "17:03" or "17:03:45"
// Accepts date formats like "17/01/2026" or "2026-01-17"
long long convertToEpochMs(const String& timeStr, const String& dateStr) {
Serial.println("\n[PARSER] Converting DateTime to Epoch:");
Serial.printf(" Time input: '%s'\n", timeStr.c_str());
Serial.printf(" Date input: '%s'\n", dateStr.c_str());
// Parse date (DD/MM/YYYY or YYYY-MM-DD)
int day, month, year;
if (dateStr.indexOf('/') >= 0) {
// Format: DD/MM/YYYY
sscanf(dateStr.c_str(), "%d/%d/%d", &day, &month, &year);
} else if (dateStr.indexOf('-') >= 0) {
// Format: YYYY-MM-DD
sscanf(dateStr.c_str(), "%d-%d-%d", &year, &month, &day);
} else {
Serial.println("[ERROR] Invalid date format!");
return -1;
}
// Parse time (HH:MM or HH:MM:SS)
int hour, minute, second = 0;
if (sscanf(timeStr.c_str(), "%d:%d:%d", &hour, &minute, &second) < 2) {
Serial.println("[ERROR] Invalid time format!");
return -1;
}
Serial.printf(" Parsed: %04d-%02d-%02d %02d:%02d:%02d IST\n",
year, month, day, hour, minute, second);
// Validate ranges
if (year < 2020 || year > 2030 || month < 1 || month > 12 ||
day < 1 || day > 31 || hour < 0 || hour > 23 ||
minute < 0 || minute > 59 || second < 0 || second > 59) {
Serial.println("[ERROR] Date/time values out of range!");
return -1;
}
// Create tm structure for IST time
struct tm timeinfo = {0};
timeinfo.tm_year = year - 1900; // Years since 1900
timeinfo.tm_mon = month - 1; // Months since January (0-11)
timeinfo.tm_mday = day;
timeinfo.tm_hour = hour;
timeinfo.tm_min = minute;
timeinfo.tm_sec = second;
timeinfo.tm_isdst = 0; // No DST in IST
// Convert to epoch (this gives UTC)
time_t epochUtc = mktime(&timeinfo);
// Subtract IST offset to get actual UTC epoch
// (since mktime interprets as local, we need to adjust)
epochUtc -= TIME_OFFSET_SECONDS;
// Convert to milliseconds
long long epochMs = (long long)epochUtc * 1000LL;
Serial.printf(" UTC Epoch: %lld (%lld ms)\n", (long long)epochUtc, epochMs);
Serial.printf(" ✓ Conversion successful!\n");
return epochMs;
}
// ================= MCP Tools =================
void registerMcpTools() {
// ---------- GET MEETINGS ----------
String getMeetingsDescription =
"Retrieve scheduled meetings from Google Calendar for a specific time range. "
"Provide start and end time/date in IST timezone. "
"Example: start_time='16:00', start_date='18/01/2026', end_time='17:00', end_date='18/01/2026'";
String getMeetingsSchema = String("{") +
"\"type\":\"object\"," +
"\"properties\":{" +
"\"start_time\":{\"type\":\"string\",\"description\":\"Start time in 24-hour format HH:MM (IST). Example: 16:00\"}," +
"\"start_date\":{\"type\":\"string\",\"description\":\"Start date as DD/MM/YYYY. Example: 18/01/2026\"}," +
"\"end_time\":{\"type\":\"string\",\"description\":\"End time in 24-hour format HH:MM (IST). Example: 17:00\"}," +
"\"end_date\":{\"type\":\"string\",\"description\":\"End date as DD/MM/YYYY. Example: 18/01/2026\"}" +
"}," +
"\"required\":[\"start_time\",\"start_date\",\"end_time\",\"end_date\"]" +
"}";
mcp.registerTool(
"get_meetings",
getMeetingsDescription.c_str(),
getMeetingsSchema.c_str(),
[](const String& args) -> WebSocketMCP::ToolResponse {
DynamicJsonDocument doc(512);
if (deserializeJson(doc, args)) {
return WebSocketMCP::ToolResponse(
"{\"success\":false,\"error\":\"Invalid JSON\"}", true
);
}
String startTime = doc["start_time"] | "";
String startDate = doc["start_date"] | "";
String endTime = doc["end_time"] | "";
String endDate = doc["end_date"] | "";
Serial.println("\n========================================");
Serial.println("[GET MEETINGS] Request received");
Serial.println("========================================");
Serial.printf("Start: %s %s IST\n", startDate.c_str(), startTime.c_str());
Serial.printf("End: %s %s IST\n", endDate.c_str(), endTime.c_str());
// Validate inputs
if (startTime.length() == 0 || startDate.length() == 0 ||
endTime.length() == 0 || endDate.length() == 0) {
Serial.println("[ERROR] Missing time or date parameters!");
return WebSocketMCP::ToolResponse(
"{\"success\":false,\"error\":\"All time and date parameters are required\"}", true
);
}
// Convert to epoch
long long startEpochMs = convertToEpochMs(startTime, startDate);
long long endEpochMs = convertToEpochMs(endTime, endDate);
if (startEpochMs < 0 || endEpochMs < 0) {
Serial.println("[ERROR] Failed to convert date/time to epoch!");
return WebSocketMCP::ToolResponse(
"{\"success\":false,\"error\":\"Invalid date/time format\"}", true
);
}
if (startEpochMs >= endEpochMs) {
Serial.println("[ERROR] Start time must be before end time!");
return WebSocketMCP::ToolResponse(
"{\"success\":false,\"error\":\"Start time must be before end time\"}", true
);
}
// Build URL for getting meetings
String fullUrl = String(CALENDAR_URL)
+ "?action=get"
+ "&start_epoch=" + String(startEpochMs)
+ "&end_epoch=" + String(endEpochMs);
Serial.println("\n[HTTP] Fetching meetings from Google Calendar:");
Serial.println(fullUrl);
HTTPClient http;
http.begin(fullUrl);
http.setTimeout(15000); // 15 second timeout for getting events
http.setFollowRedirects(HTTPC_STRICT_FOLLOW_REDIRECTS); // Follow redirects
int httpCode = http.GET();
String response = http.getString();
http.end();
Serial.printf("\n[HTTP] Response Code: %d\n", httpCode);
Serial.printf("[HTTP] Response: %s\n", response.c_str());
if (httpCode == 200 || httpCode == 302) {
Serial.println("[SUCCESS] ✓ Meetings retrieved successfully!");
Serial.println("========================================\n");
return WebSocketMCP::ToolResponse(response);
}
Serial.printf("[ERROR] HTTP request failed with code %d\n", httpCode);
Serial.println("========================================\n");
return WebSocketMCP::ToolResponse(
"{\"success\":false,\"error\":\"Failed to retrieve meetings\"}", true
);
}
);
// ---------- SET MEETING ----------
String meetingDescription =
"Create Google Calendar meeting. Provide time in 24-hour format (HH:MM) and date as DD/MM/YYYY. "
"The system will handle IST timezone conversion automatically. "
"Example: time='14:30', date='17/01/2026', duration=60";
String meetingSchema = String("{") +
"\"type\":\"object\"," +
"\"properties\":{" +
"\"title\":{\"type\":\"string\",\"description\":\"Meeting title\"}," +
"\"time\":{\"type\":\"string\",\"description\":\"Meeting start time in 24-hour format HH:MM or HH:MM:SS (IST). Example: 14:30 or 09:15:00\"}," +
"\"date\":{\"type\":\"string\",\"description\":\"Meeting date as DD/MM/YYYY or YYYY-MM-DD. Example: 17/01/2026 or 2026-01-17\"}," +
"\"duration\":{\"type\":\"integer\",\"description\":\"Meeting duration in minutes (default 30)\"}" +
"}," +
"\"required\":[\"title\",\"time\",\"date\"]" +
"}";
mcp.registerTool(
"set_meeting",
meetingDescription.c_str(),
meetingSchema.c_str(),
[](const String& args) -> WebSocketMCP::ToolResponse {
DynamicJsonDocument doc(512);
if (deserializeJson(doc, args)) {
return WebSocketMCP::ToolResponse(
"{\"success\":false,\"error\":\"Invalid JSON\"}", true
);
}
String title = doc["title"] | "ESP32 MCP Meeting";
String timeStr = doc["time"] | "";
String dateStr = doc["date"] | "";
int duration = doc["duration"] | 30;
Serial.println("\n========================================");
Serial.println("[MEETING] New meeting request received");
Serial.println("========================================");
Serial.printf("Title: %s\n", title.c_str());
Serial.printf("Time: %s IST\n", timeStr.c_str());
Serial.printf("Date: %s\n", dateStr.c_str());
Serial.printf("Duration: %d minutes\n", duration);
// Validate inputs
if (timeStr.length() == 0 || dateStr.length() == 0) {
Serial.println("[ERROR] Missing time or date!");
return WebSocketMCP::ToolResponse(
"{\"success\":false,\"error\":\"Both time and date are required\"}", true
);
}
// Convert to epoch
long long epochMs = convertToEpochMs(timeStr, dateStr);
if (epochMs < 0) {
Serial.println("[ERROR] Failed to convert date/time to epoch!");
return WebSocketMCP::ToolResponse(
"{\"success\":false,\"error\":\"Invalid date/time format or values\"}", true
);
}
// Build URL for creating meeting
String fullUrl = String(CALENDAR_URL)
+ "?action=create"
+ "&title=" + urlEncode(title)
+ "&start_epoch=" + String(epochMs)
+ "&duration=" + String(duration);
Serial.println("\n[HTTP] Sending request to Google Calendar:");
Serial.println(fullUrl);
HTTPClient http;
http.begin(fullUrl);
http.setTimeout(10000);
http.setFollowRedirects(HTTPC_STRICT_FOLLOW_REDIRECTS); // Follow redirects
int httpCode = http.GET();
String response = http.getString();
http.end();
Serial.printf("\n[HTTP] Response Code: %d\n", httpCode);
Serial.printf("[HTTP] Response Body: %s\n", response.c_str());
if (httpCode == 200 || httpCode == 302) {
Serial.println("[SUCCESS] ✓ Meeting created successfully!");
Serial.println("========================================\n");
String successResponse = "{\"success\":true," +
String("\"meeting\":\"created\",") +
"\"title\":\"" + title + "\"," +
"\"scheduled_time\":\"" + timeStr + " IST\","+
"\"scheduled_date\":\"" + dateStr + "\"," +
"\"epoch_ms\":" + String(epochMs) + "," +
"\"duration_minutes\":" + String(duration) + "}";
return WebSocketMCP::ToolResponse(successResponse);
}
Serial.printf("[ERROR] HTTP request failed with code %d\n", httpCode);
Serial.println("========================================\n");
return WebSocketMCP::ToolResponse(
"{\"success\":false,\"error\":\"HTTP request failed with code " + String(httpCode) + "\"}", true
);
}
);
}
// ================= MCP Connection =================
void onMcpConnectionChange(bool connected) {
Serial.println(connected ? "\n[MCP] ✓ Connected to server" : "\n[MCP] ✗ Disconnected from server");
if (connected) {
Serial.println("[MCP] Registering tools...");
registerMcpTools();
Serial.println("[MCP] ✓ All tools registered successfully!");
Serial.println(" - set_meeting: Create calendar events");
Serial.println(" - get_meetings: Retrieve scheduled meetings");
}
}
// ================= Setup =================
void setup() {
Serial.begin(115200);
delay(1000);
Serial.println("\n\n========================================");
Serial.println(" ESP32 MCP Calendar System v3.0");
Serial.println(" DateTime Parser Edition");
Serial.println("========================================\n");
// WiFi Connection
Serial.println("[WiFi] Connecting to network...");
Serial.printf(" SSID: %s\n", WIFI_SSID);
WiFi.begin(WIFI_SSID, WIFI_PASS);
int attempts = 0;
while (WiFi.status() != WL_CONNECTED && attempts < 20) {
delay(500);
Serial.print(".");
attempts++;
}
if (WiFi.status() == WL_CONNECTED) {
Serial.println("\n[WiFi] ✓ Connected successfully");
Serial.printf(" IP Address: %s\n", WiFi.localIP().toString().c_str());
Serial.printf(" Signal Strength: %d dBm\n", WiFi.RSSI());
} else {
Serial.println("\n[WiFi] ✗ Connection failed!");
Serial.println(" Please check credentials and restart");
}
// MCP Connection
Serial.println("\n[MCP] Connecting to server...");
Serial.println(" Endpoint: wss://api.xiaozhi.me/mcp/");
mcp.begin(MCP_ENDPOINT, onMcpConnectionChange);
Serial.println("\n========================================");
Serial.println(" SYSTEM READY!");
Serial.println("========================================");
Serial.println("Configuration:");
Serial.println(" • Timezone: IST (UTC+5:30)");
Serial.println(" • DateTime parsing: ENABLED");
Serial.println(" • Input format: HH:MM, DD/MM/YYYY");
Serial.println("========================================\n");
}
// ================= Loop =================
void loop() {
mcp.loop();
delay(10);
}To connect ESP32 with Google Calendar, we need a public Web App URL from Google Apps Script.
1. Create a New Script
Go to https://script.google.com/
Click New Project
Delete the default code
Copy–paste the provided Apps Script code
2. Save the Script
Click Save
Give the project a name (e.g., ESP32 Calendar MCP)
3. Deploy as Web App
Click Deploy → New deployment
Select Web app
Set the options:
Execute as: Me
Who has access: Anyone
Then click Deploy
On first deploy, Google will ask for permission — approve it.
4. Copy the Web URL
After deployment, Google shows a Web App URL
Copy this URL
5. Paste URL in ESP32 Code
Replace CALENDAR_URL in the ESP32 sketch:
| const char* CALENDAR_URL = "PASTE_YOUR_WEB_APP_URL_HERE"; |
function doGet(e) {
var action = e.parameter.action || "create";
if (action === "create") {
return createMeeting(e);
} else if (action === "get") {
return getMeetings(e);
}
return ContentService.createTextOutput(JSON.stringify({
success: false,
error: "Invalid action. Use action=create or action=get"
})).setMimeType(ContentService.MimeType.JSON);
}
// Create meeting function
function createMeeting(e) {
var title = e.parameter.title || "ESP32 Meeting";
var startEpoch = Number(e.parameter.start_epoch);
var durationMin = Number(e.parameter.duration || 30);
if (!startEpoch || isNaN(startEpoch)) {
return ContentService.createTextOutput(JSON.stringify({
success: false,
error: "Invalid epoch"
})).setMimeType(ContentService.MimeType.JSON);
}
var start = new Date(startEpoch);
var end = new Date(start.getTime() + durationMin * 60000);
try {
var event = CalendarApp.getDefaultCalendar().createEvent(
title,
start,
end,
{ description: "Created from ESP32" }
);
return ContentService
.createTextOutput(JSON.stringify({
success: true,
message: "Meeting created",
title: title,
start: start.toString(),
end: end.toString(),
id: event.getId()
}))
.setMimeType(ContentService.MimeType.JSON);
} catch (error) {
return ContentService
.createTextOutput(JSON.stringify({
success: false,
error: error.toString()
}))
.setMimeType(ContentService.MimeType.JSON);
}
}
// Get meetings function
function getMeetings(e) {
var startEpoch = Number(e.parameter.start_epoch);
var endEpoch = Number(e.parameter.end_epoch);
if (!startEpoch || !endEpoch || isNaN(startEpoch) || isNaN(endEpoch)) {
return ContentService.createTextOutput(JSON.stringify({
success: false,
error: "Invalid start_epoch or end_epoch"
})).setMimeType(ContentService.MimeType.JSON);
}
try {
var startTime = new Date(startEpoch);
var endTime = new Date(endEpoch);
var events = CalendarApp.getDefaultCalendar().getEvents(startTime, endTime);
var meetings = events.map(function(event) {
return {
title: event.getTitle(),
start: event.getStartTime().getTime(),
end: event.getEndTime().getTime(),
start_readable: event.getStartTime().toString(),
end_readable: event.getEndTime().toString(),
description: event.getDescription() || "",
location: event.getLocation() || ""
};
});
return ContentService
.createTextOutput(JSON.stringify({
success: true,
count: meetings.length,
search_range: {
start: startTime.toString(),
end: endTime.toString()
},
meetings: meetings
}))
.setMimeType(ContentService.MimeType.JSON);
} catch (error) {
return ContentService
.createTextOutput(JSON.stringify({
success: false,
error: error.toString()
}))
.setMimeType(ContentService.MimeType.JSON);
}
}
In this step, we demonstrate real AI-controlled hardware execution using Xiaozhi MCP.

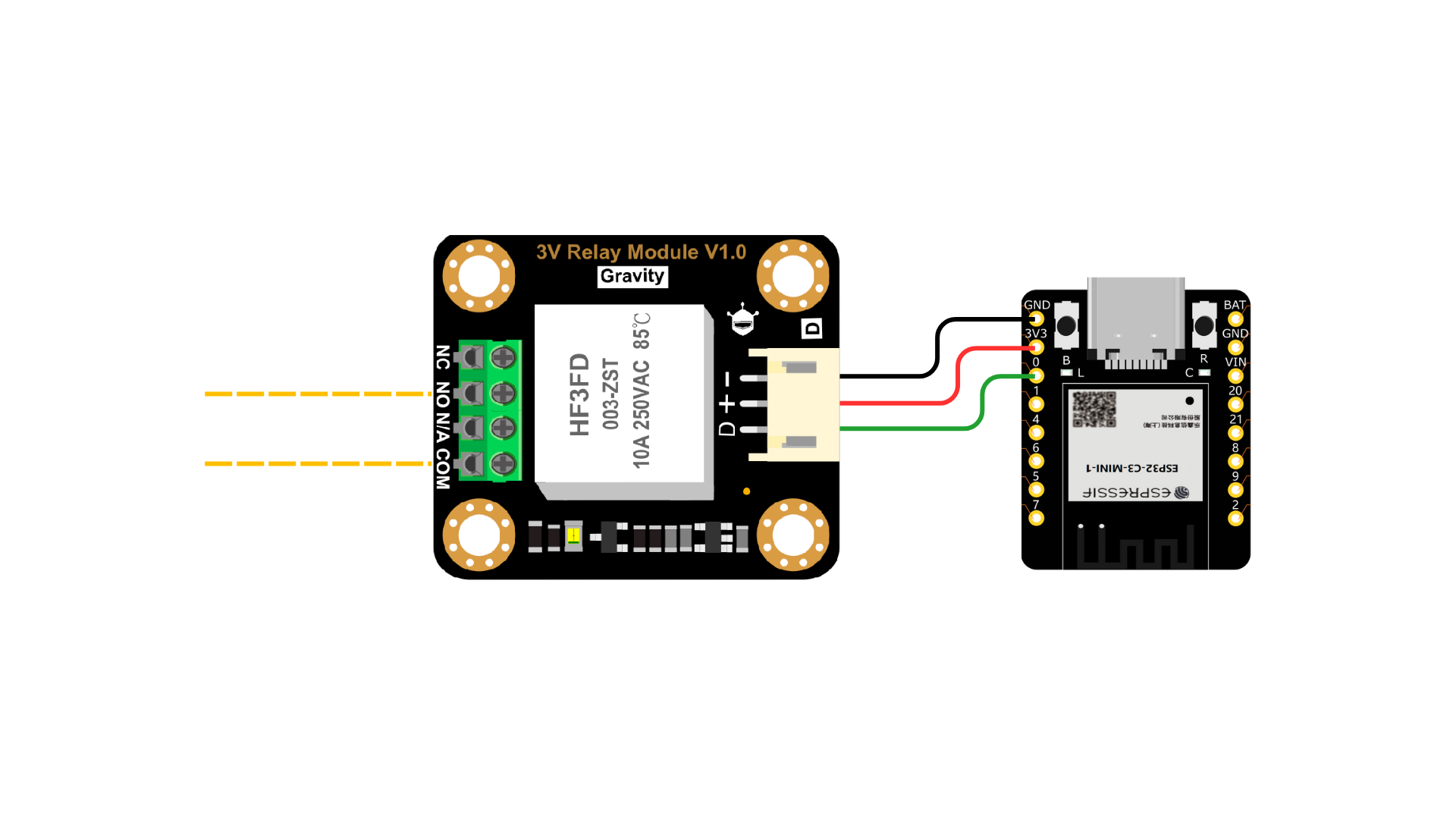

Instead of a camera board, we use a DFRobot Beetle ESP32-C3, connected to a 10A relay module on GPIO 0.
This relay can control real loads like lights, fans, or appliances.
This example proves that MCP is not limited to one ESP32 — multiple ESP32 devices can expose tools independently.
Hardware Used:
DFRobot Beetle ESP32-C3
10A Relay Module
Relay control pin → GPIO 0
When the relay pin goes HIGH, the relay turns ON.
When it goes LOW, the relay turns OFF.
What This Example Does
The ESP32 exposes a single MCP tool: office_light
This tool allows the AI to:
Turn the relay ON
Turn the relay OFF
The AI does not toggle GPIOs directly.
It calls a structured tool, and the ESP32 executes it safely.
How the MCP Flow Works?
Voice or AI Command
Example:
“Turn on the office light”
Xiaozhi AI
Understands intent
Calls the MCP tool office_light
Sends structured JSON: { "state": "on" }
ESP32 Execution
Receives the tool call
Sets GPIO 0 HIGH or LOW
Controls the relay instantly
Response Back to AI
ESP32 sends execution status
AI confirms the action
This is true AI → hardware control, not keywords or if-else logic.
Conclusion
In this project, we built a real voice-controlled AI system on ESP32 — not a chatbot, but an execution engine.
Using MCP (Model Context Protocol), the ESP32 exposes its hardware and services as structured tools that an AI can safely call. This allowed us to:
Control real hardware (LEDs, sensors, relays)
Convert natural language into deterministic actions
Create and fetch Google Calendar meetings
Handle time, timezone, and epoch conversion directly on the device
What you’ve seen in this project are just a few examples of what MCP enables.
The real power is that any hardware or software capability can be exposed as an MCP tool — from home automation and factory sensors to cloud services, dashboards, and industrial control systems.
The possibilities are truly endless when AI is combined with structured, secure execution.
The key takeaway is the architecture:
The AI decides what needs to be done
MCP defines how it can be done
ESP32 executes it safely in the real world
If you understand this flow, you’re no longer just building IoT projects —
you’re designing AI-driven automation systems.
Special Thanks
A big thank you to DFRobot for providing all the hardware components used in this project and supporting open, educational innovation.
Happy building 🚀
