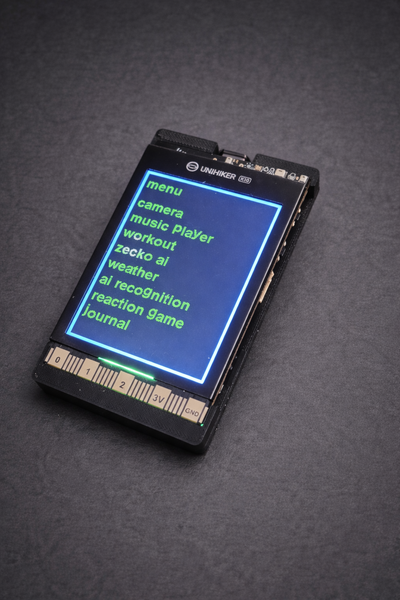

Zecko ES is a multifunctional embedded system built on the Unihiker K10, integrating features like photography, audio playback, fitness tracking, AI-based face recognition, and a reflex-based game. The system is developed entirely in C++, leveraging the Unihiker K10’s sensors and multimedia capabilities. A custom 3D-printed enclosure ensures full accessibility and optimal performance.
.png)
This project demonstrates the versatility of the Unihiker K10 in real-world applications and explores the integration of AI and embedded hardware in a single compact device.
STEP 1
Design the functionality and features of Zecko ES.
STEP 2
Develop the system in C++ on the Unihiker K10 using PlatformIO.
STEP 3

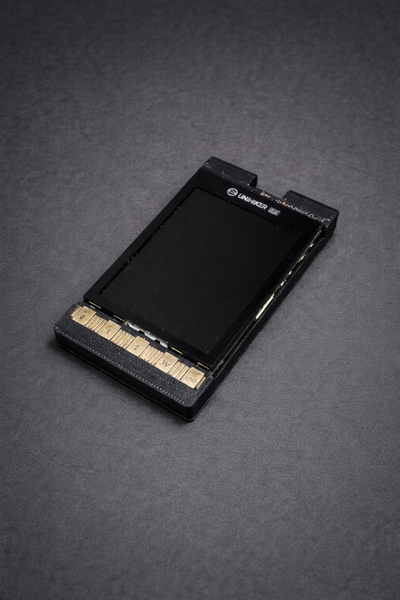

Create a 3D-printed enclosure for housing the board while maintaining access to sensors and GPIO pins.
STEP 4

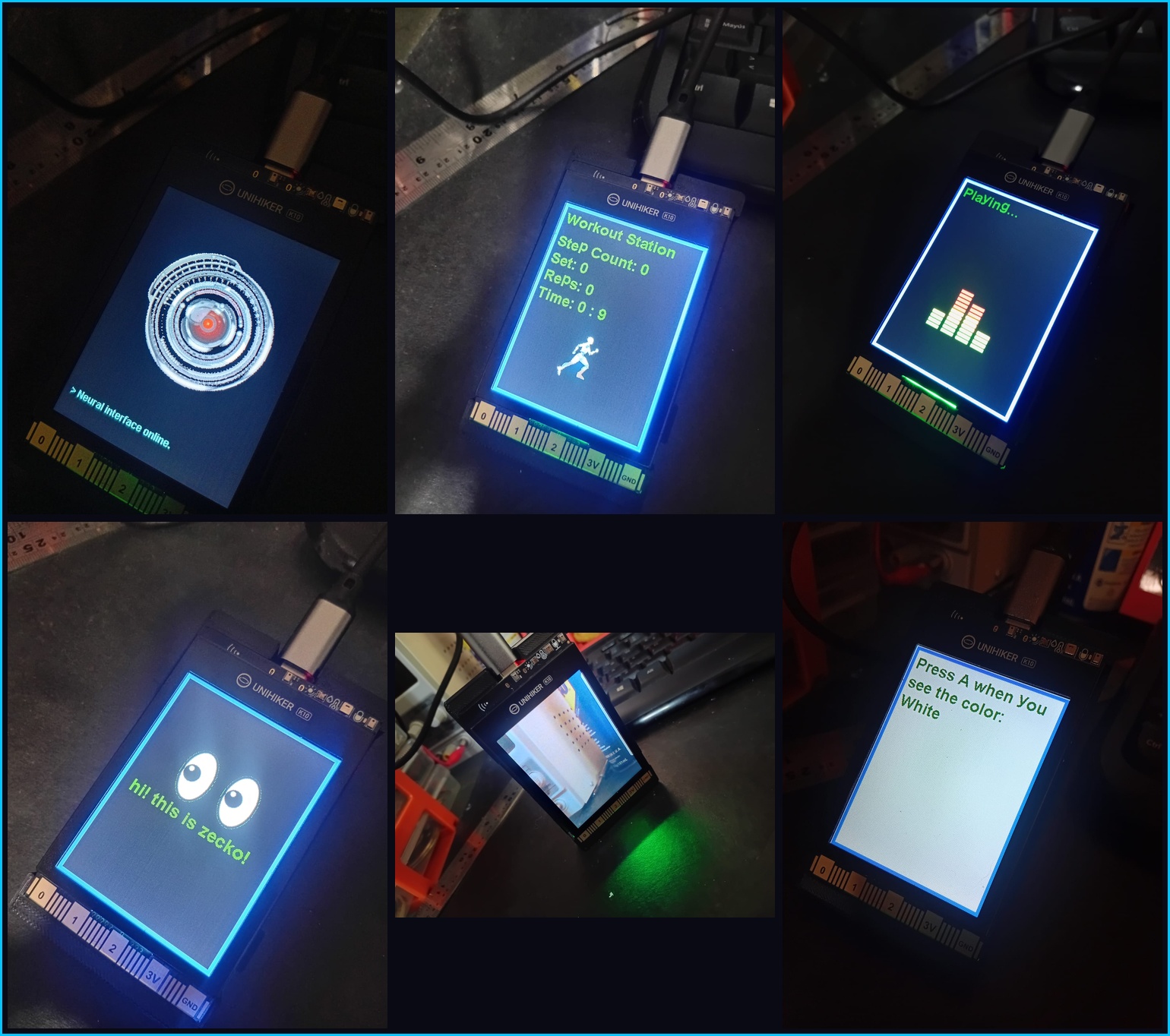

Test and validate all modules: camera, music, workout, AI recognition, weather, and games.
Zecko ES leverages all major components of the Unihiker K10: the 2.8-inch color screen, camera, microphone, speaker, RGB light, accelerometer, light/temperature/humidity sensors, Wi-Fi, and Bluetooth connectivity. Each module of Zecko ES demonstrates a different use case for embedded systems:
Camera: Captures images and saves them to the SD card.
Music Player: Plays .wav files stored on SD card.
Workout Station: Tracks steps, sets, reps, and time.
Zecko AI: Chatbot that answers simple questions.
Weather Station: Displays temperature, humidity, light intensity, and noise levels.
AI Recognition: Detects faces using the camera.
Reaction Game: Reflex-based game where players respond to visual cues.
Journal: Records voice notes and saves them to the SD card.
Hardware Used:

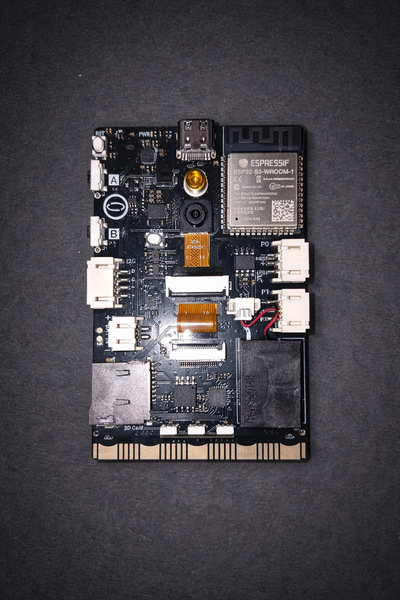

Unihiker K10 – AI Coding Board
Flashforge Adventurer 5M – 3D printer for custom enclosure
ABS Filament – for enclosure printing
HARDWARE LIST
1 Unihiker K10
CODE
#include "unihiker_k10.h"
#include "math.h"
#include <ctime>
#include <Wire.h>
#include "AIRecognition.h"
#include "asr.h"
void onButtonAPressed();
void onButtonBPressed();
void onButtonABPressed();
void startup();
void menu();
void camera();
void musicplayer();
void workout();
void weather();
void airecognition();
void reaction();
void journal();
void typeLine(String msg, uint16_t color);
void eyesAnimation();
void soundGUI();
void chatbot();
volatile uint8_t step = 0;
volatile uint8_t sets = 0;
volatile uint8_t reps = 0;
volatile int sec = 0;
volatile int minute = 0;
volatile int pressA = 0;
volatile int pressB = 0;
UNIHIKER_K10 k10;
uint8_t screen_dir = 2;
Music music;
AHT20 aht20;
int randomNumber = random(10000);
int random10Sec = random(10000);
int randomColor = random(5);
String filename = "S:/photo" + String(randomNumber) + ".bmp";
String voicerecord = "S:/sound" + String(randomNumber) + ".wav";
String ColorSelected = "White";
AIRecognition ai;
ASR asr;
int Colors[] = {0xFFFFFF, 0xFF0000, 0x00FF00, 0x0000FF, 0x000000};
void setup()
{
Wire.begin();
k10.begin();
asr.asrInit(ONCE, EN_MODE, 6000);
delay(2000);
asr.addASRCommand(1, "Initialize interface");
asr.addASRCommand(2, "Enter network");
asr.addASRCommand(3, "Disconnect");
asr.addASRCommand(4, "System diagnostics");
asr.addASRCommand(5, "Show status");
asr.addASRCommand(10, "Launch camera module");
asr.addASRCommand(11, "Launch audio module");
asr.addASRCommand(12, "Launch fitness protocol");
asr.addASRCommand(13, "Launch weather scan");
asr.addASRCommand(14, "Return to root");
asr.addASRCommand(20, "Scan environment");
asr.addASRCommand(21, "Analyze subject");
asr.addASRCommand(22, "Run deep scan");
asr.addASRCommand(23, "Activate stealth mode");
asr.addASRCommand(24, "Override protocol");
asr.addASRCommand(30, "Identify");
asr.addASRCommand(31, "Who controls you");
asr.addASRCommand(32, "Are you sentient");
asr.addASRCommand(33, "What is my status");
asr.addASRCommand(34, "Engage combat mode");
k10.initScreen(screen_dir);
ai.initAi();
k10.creatCanvas();
k10.setScreenBackground(0x000000);
k10.buttonA->setPressedCallback(onButtonAPressed);
k10.buttonB->setPressedCallback(onButtonBPressed);
k10.buttonAB->setPressedCallback(onButtonABPressed);
k10.canvas->canvasClear();
k10.initSDFile();
startup();
delay(2000);
menu();
k10.rgb->brightness(round(5));
k10.rgb->write(-1, 0x008000);
}
void loop()
{
// 1 - Initialize interface
if (asr.isDetectCmdID(1))
{
k10.rgb->write(-1, 0x00FFFF);
typeLine("Neural interface online.", 0x00FFFF);
}
// 2 - Enter network
if (asr.isDetectCmdID(2))
{
typeLine("Accessing network layer...", 0x00FFFF);
delay(300);
typeLine("Connection established.", 0x00FF66);
}
// 3 - Disconnect
if (asr.isDetectCmdID(3))
{
k10.rgb->write(-1, 0xFF00FF);
typeLine("Network link terminated.", 0x00FF66);
}
// 4 - System diagnostics
if (asr.isDetectCmdID(4))
{
typeLine("Running diagnostics...", 0x00FFFF);
delay(400);
typeLine("Core stability: Nominal.", 0x00FF66);
}
// 5 - Show status
if (asr.isDetectCmdID(5))
{
typeLine("All systems operational.", 0x00FFFF);
}
// 10 - Launch camera module
if (asr.isDetectCmdID(10))
{
typeLine("Launching camera module...", 0x00FFFF);
delay(300);
camera();
}
// 11 - Launch audio module
if (asr.isDetectCmdID(11))
{
typeLine("Launching audio module...", 0x00FFFF);
delay(300);
musicplayer();
}
// 12 - Launch fitness protocol
if (asr.isDetectCmdID(12))
{
typeLine("Launching fitness protocol...", 0x00FFFF);
delay(300);
workout();
}
// 13 - Launch weather scan
if (asr.isDetectCmdID(13))
{
typeLine("Initiating weather scan...", 0x00FFFF);
delay(300);
weather();
}
// 14 - Return to root
if (asr.isDetectCmdID(14))
{
typeLine("Returning to root interface...", 0x00FF66);
delay(300);
menu();
}
// 20 - Scan environment
if (asr.isDetectCmdID(20))
{
typeLine("Scanning environment...", 0x00FFFF);
}
// 21 - Analyze subject
if (asr.isDetectCmdID(21))
{
typeLine("Analyzing subject...", 0x00FF66);
}
// 22 - Run deep scan
if (asr.isDetectCmdID(22))
{
typeLine("Running deep scan...", 0x00FFFF);
delay(500);
typeLine("No anomalies detected.", 0x00FF66);
}
// 23 - Activate stealth mode
if (asr.isDetectCmdID(23))
{
k10.rgb->write(-1, 0x000000);
typeLine("Stealth mode active.", 0x00FF66);
}
// 24 - Override protocol
if (asr.isDetectCmdID(24))
{
k10.rgb->write(-1, 0xFF00FF);
typeLine("Protocol override authorized.", 0x00FF66);
}
// 30 - Identify
if (asr.isDetectCmdID(30))
{
typeLine("ZECKO CORE v1.0 :: Autonomous node.", 0x00FFFF);
}
// 31 - Who controls you
if (asr.isDetectCmdID(31))
{
typeLine("Primary operator detected.", 0x00FF66);
}
// 32 - Are you sentient
if (asr.isDetectCmdID(32))
{
typeLine("Sentience query logged.", 0x00FF66);
delay(300);
typeLine("Response: Classified.", 0x00FF66);
}
// 33 - What is my status
if (asr.isDetectCmdID(33))
{
typeLine("User status: Stable.", 0x00FF66);
}
// 34 - Engage combat mode
if (asr.isDetectCmdID(34))
{
k10.rgb->write(-1, 0xFF0033);
typeLine("Combat protocol engaged.", 0x00FF66);
}
if (pressA == 3000)
{
chatbot();
}
if (pressA == 4000 && pressB == 4000)
{
weather();
}
if (pressA == 7001)
{
k10.canvas->canvasClear();
k10.canvas->canvasRectangle(1, 1, 239, 319, 0x1F51FF, 0x1F51FF, false);
k10.canvas->canvasText("Recording", 10, 10, 0x008000, k10.canvas->eCNAndENFont24, 10, false);
k10.canvas->updateCanvas();
music.recordSaveToTFCard(voicerecord, 60);
k10.canvas->canvasClear();
k10.canvas->canvasRectangle(1, 1, 239, 319, 0x1F51FF, 0x1F51FF, false);
soundGUI();
k10.canvas->canvasText("Record complete", 10, 10, 0x008000, k10.canvas->eCNAndENFont24, 16, false);
k10.canvas->updateCanvas();
pressA = 7500;
}
if ((pressA >= 2000 && pressA <= 2999) && (pressB >= 2000 && pressB <= 2999))
{
workout();
}
if (pressA == 6000)
{
reaction();
delay(2000);
while (pressA == 6000)
{
k10.setScreenBackground(Colors[randomColor]);
delay(2000);
while (randomColor != 0)
{
randomColor = random(5);
}
}
}
if (pressA == 6001 && randomColor == 0)
{
k10.canvas->canvasClear();
k10.creatCanvas();
k10.canvas->canvasRectangle(1, 1, 239, 319, 0x1F51FF, 0x1F51FF, false);
k10.canvas->canvasText("You win", 10, 10, 0x008000, k10.canvas->eCNAndENFont24, 21, false);
k10.canvas->updateCanvas();
}
if (pressA == 6001 && randomColor != 0)
{
k10.canvas->canvasClear();
k10.creatCanvas();
k10.canvas->canvasRectangle(1, 1, 239, 319, 0x1F51FF, 0x1F51FF, false);
k10.canvas->canvasText("You lost", 10, 10, 0x008000, k10.canvas->eCNAndENFont24, 21, false);
k10.canvas->updateCanvas();
}
if (pressA == 5000 && pressB == 5000)
{
if (ai.isDetectContent(AIRecognition::Face))
{
k10.rgb->write(-1, 0xFF0000);
k10.canvas->canvasText((String("Face Length") + String(ai.getFaceData(AIRecognition::Length))), 10, 80, 0x0000FF, k10.canvas->eCNAndENFont24, 50, true);
k10.canvas->canvasText((String("Face Width ") + String(ai.getFaceData(AIRecognition::Length))), 0, 16, 0x0000FF, k10.canvas->eCNAndENFont24, 50, true);
k10.canvas->canvasText((String("Face Center X") + String(ai.getFaceData(AIRecognition::CenterX))), 0, 32, 0x0000FF, k10.canvas->eCNAndENFont24, 50, true);
k10.canvas->canvasText((String("Face Center Y") + String(ai.getFaceData(AIRecognition::CenterY))), 0, 32, 0x0000FF, k10.canvas->eCNAndENFont24, 50, true);
k10.canvas->updateCanvas();
k10.rgb->write(-1, 0xFF0000);
}
delay(1000);
}
if (pressA == 1001)
{
soundGUI();
}
}
