Gear Shift Indicator Using Visuino

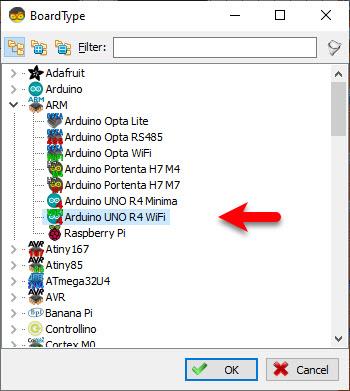

Arduino UNO R4 (or any other Arduino or ESP)

Note: the board should have enough memory, that is why I choose to use Arduino R4, if you want to use a board with less memory such as Arduino R3 then skip the part where lines change color, you will find the Visuino files at the bottom including project that requires less memory.

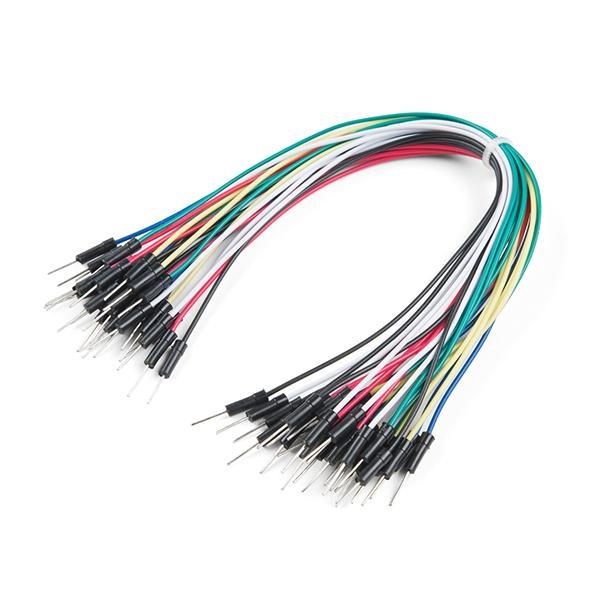

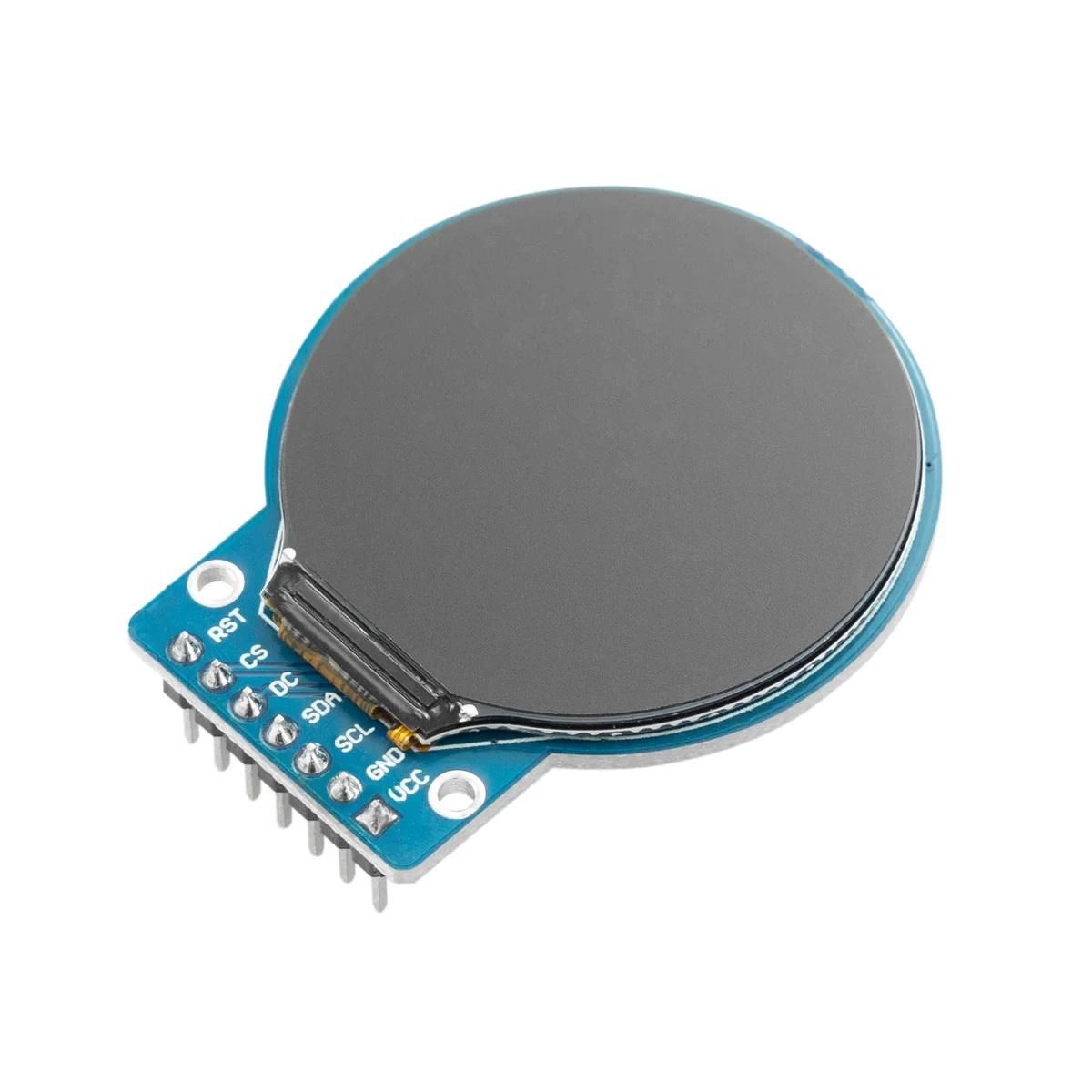

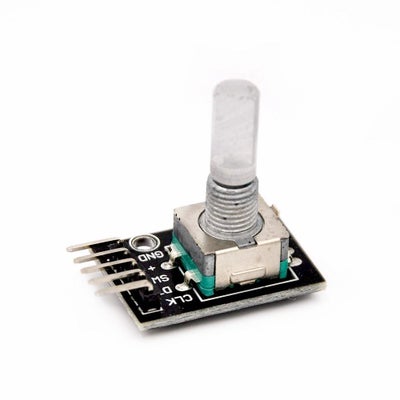

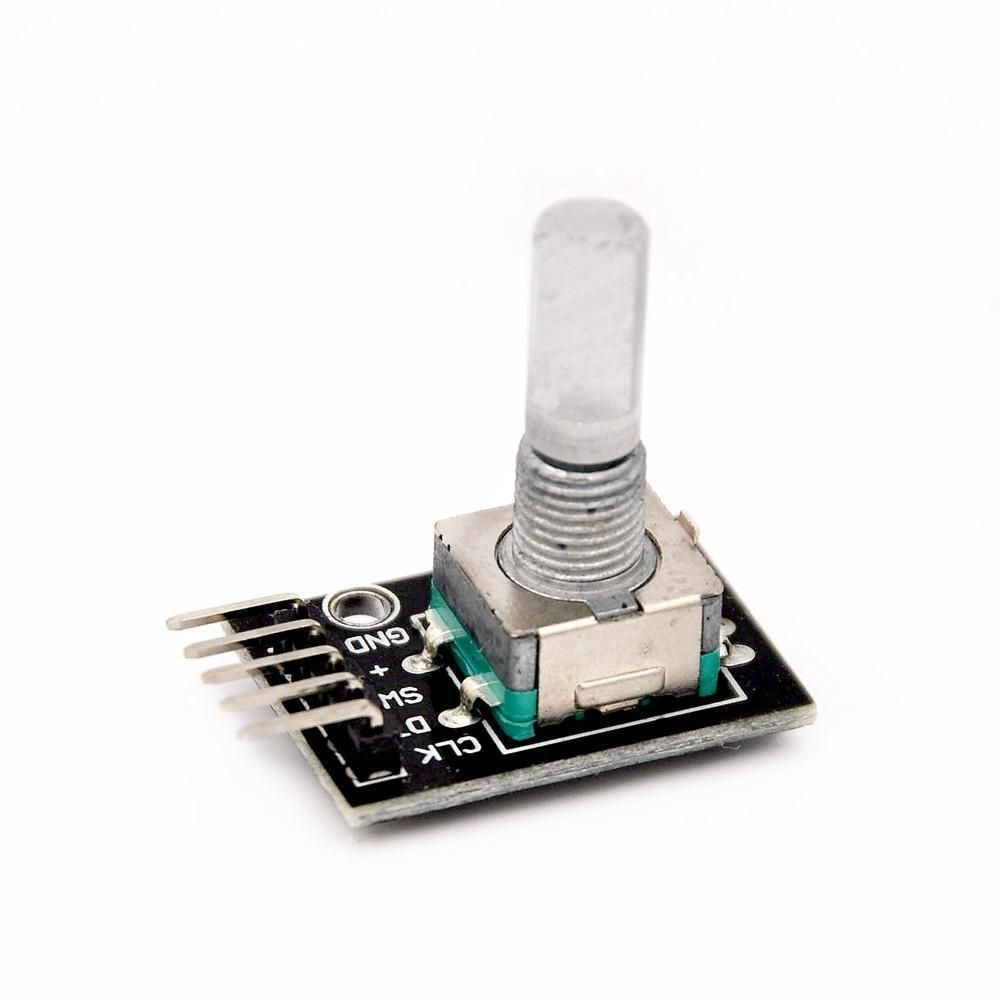

GC9A01 SPI DisplayRotary Encoder (optional)Jumper wiresBreadboardVisuino program: Download Visuino

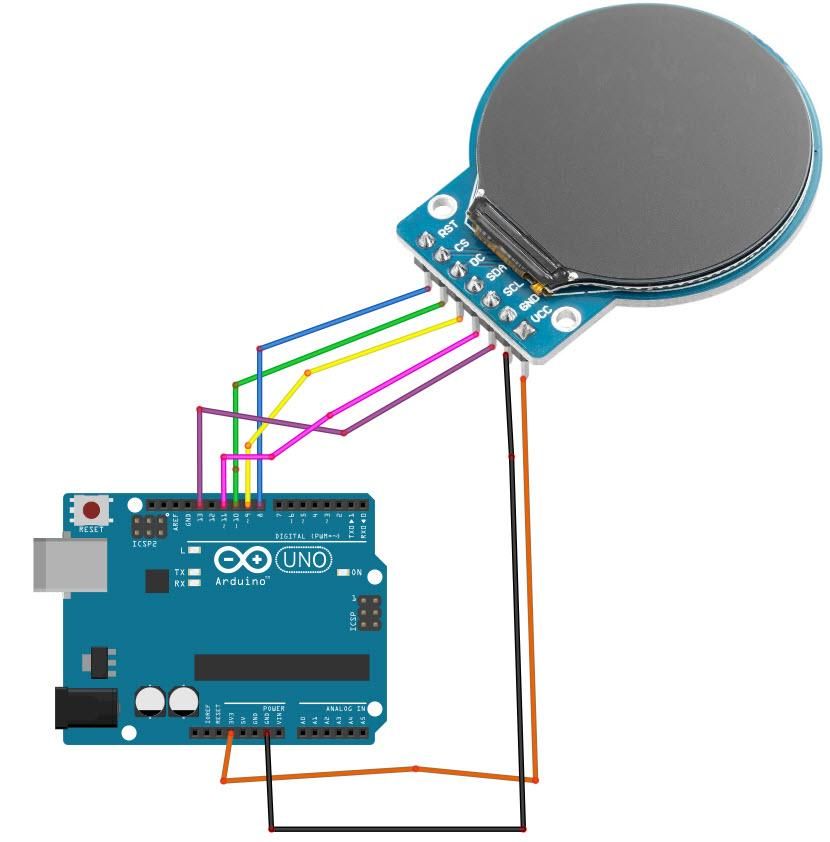

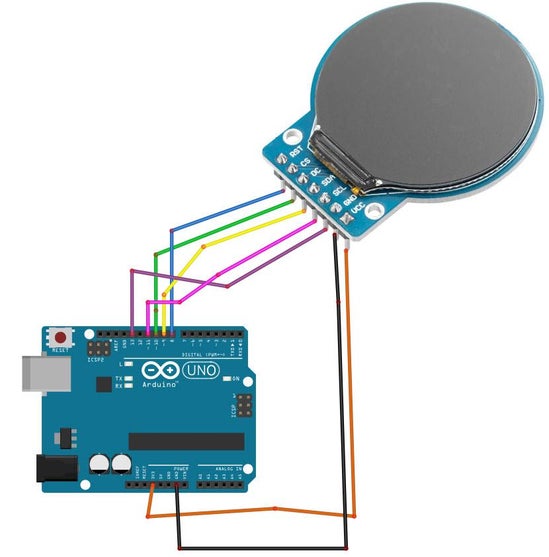

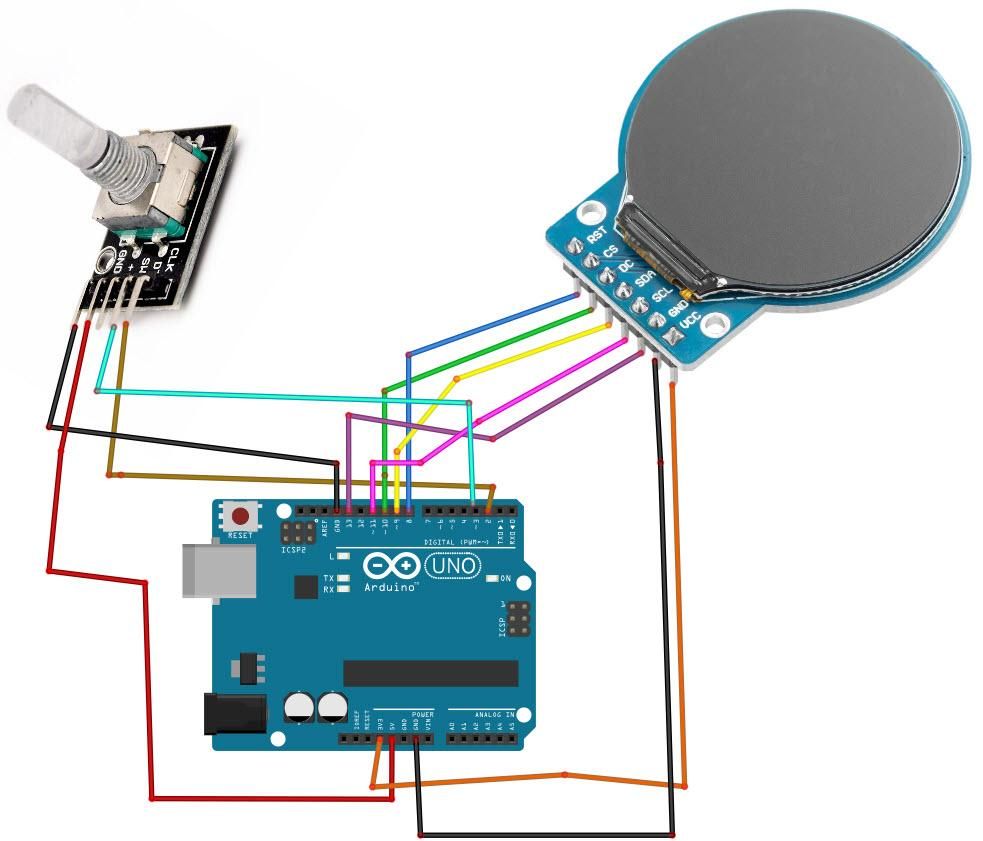

Connect GC9A01 Display pin [VCC] to Arduino pin [3.3V]Connect GC9A01 Display pin [GND] to Arduino pin [GND]Connect GC9A01 Display pin [SCL] to Arduino pin [13]Connect GC9A01 Display pin [SDA] to Arduino pin [11]Connect GC9A01 Display pin [DC] to Arduino pin [9]Connect GC9A01 Display pin [CS] to Arduino pin [10]Connect GC9A01 Display pin [RST ] to Arduino pin [8]Connect DHT11 Sensor pin [VCC] to Arduino pin [5V]Connect DHT11 Sensor pin [GND] to Arduino pin [GND]Connect DHT11 Sensor pin [S] to Arduino digital pin [2]



Connecting Encoder module:

Connect Encoder module pin [CLK] to Arduino digital pin [2]Connect Encoder module pin [DT] to Arduino digital pin [3]Connect Encoder module pin [SW] to Arduino digital pin [4]

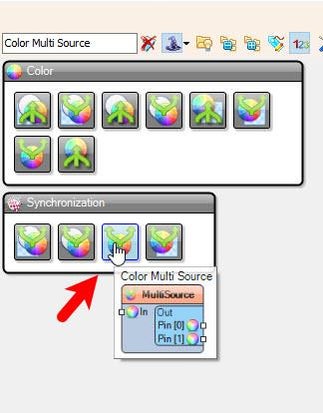

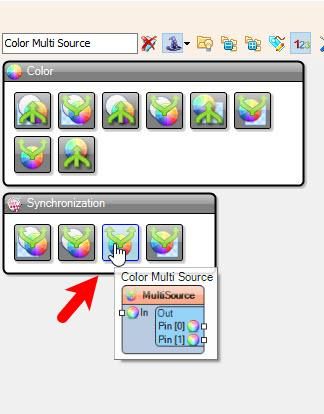

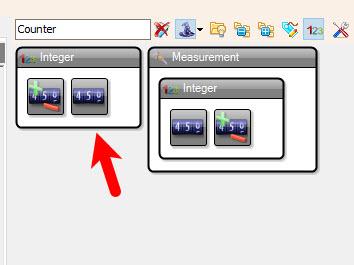

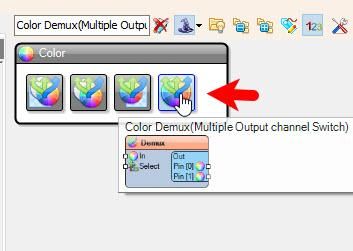

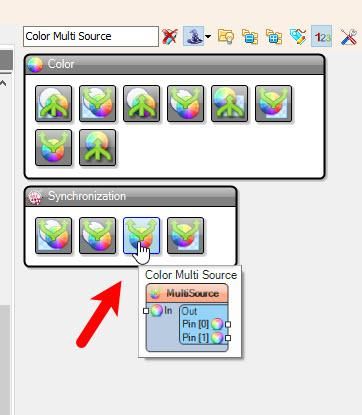

Add "Clock Generator" componentAdd "Clock Multi Source" componentAdd "Counter" componentAdd "Integer Multi Source" componentAdd 2X "Color Value" componentAdd "Color Multi Source" componentAdd 7X "Color Multi-Source Merger" componentAdd 7X "Color Multi Source" componentAdd "Color Demux(Multiple Output channel Switch)" componentAdd "TFT Color Display Galaxycore GC9A01 SPI" component

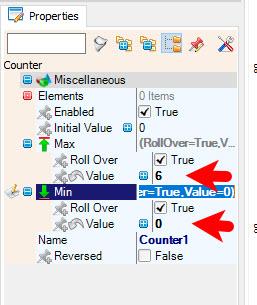

Select "Counter1" and in the Properties window set "Max" > "Value" to 6 and "Min" > "Value" to 0Select "ColorValue1" and in the properties window set "Color" to clWhiteSelect "ColorValue2" and in the properties window set "Color" to clRedSelect "Demux1" and in the properties window set "Output Pins" to 7Select "MultiSource1" and in the properties window set "Output Pins" to 7Select all the rest Color Multi Sources and for each set "Output Pins" to 4

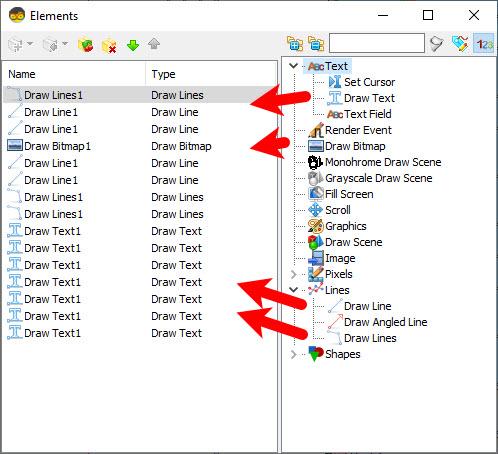

Double click on the "Display1" and in the Elements window Drag to the left side:

3X "Draw Lines""Draw Bitmap"4X "Draw Line"7X "Draw Text"

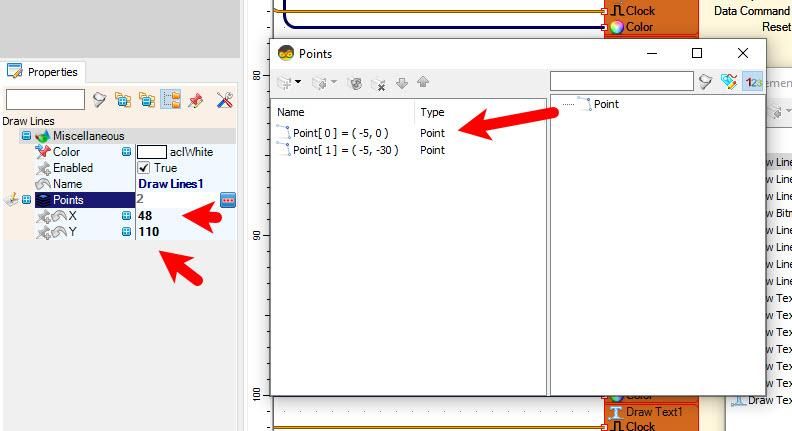

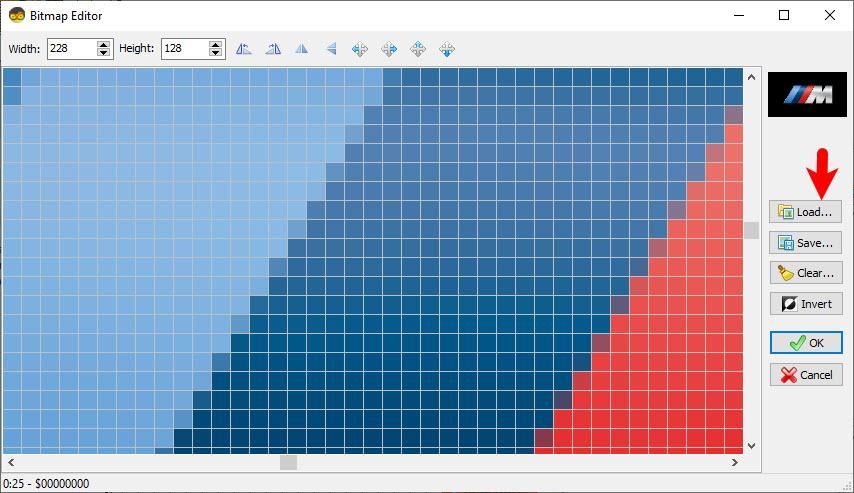

Select "Draw Lines1" and in the properties window select "Color" and click on the pin icon and select "Alpha Color SinkPin", set "X" to 84 and "Y" to 110, Select "Points" and click on the 3 dots butoon and in the "Points" window drag "Point" to the left side and in the properties window set "X" to -5, drag another "Point" to the left side and in the properties window set "X" to -5 and "Y" to -30, Close the "Points" windowSelect "Draw Lines2" and in the properties window select "Color" and click on the pin icon and select "Alpha Color SinkPin", set "X" to 175 and "Y" to 110, Select "Points" and click on the 3 dots butoon and in the "Points" window drag "Point" to the left side and in the properties window set "X" to 10, drag another "Point" to the left side and in the properties window set "X" to 10 and "Y" to -30, Close the "Points" window Select "Draw Lines3" and in the properties window select "Color" and click on the pin icon and select "Alpha Color SinkPin", set "X" to 175 and "Y" to 110, Select "Points" and click on the 3 dots butoon and in the "Points" window drag "Point" to the left side and in the properties window set "X" to 10, drag another "Point" to the left side and in the properties window set "X" to 10 and "Y" to 40, Close the "Points" windowSelect "Draw Line1" and in the properties window select "Color" and click on the pin icon and select "Alpha Color SinkPin", set "X" to 90 and "Y" to 79 and "Height" to 8Select "Draw Line2" and in the properties window select "Color" and click on the pin icon and select "Alpha Color SinkPin", set "X" to 90 and "Y" to 140 and "Height" to 10Select "Draw Bitmap1" and in the properties window set "X" to -10 and "Y" to 50 and select "Bitmap" and click on the 3 dots button and in the "Bitmap Editor" load the image



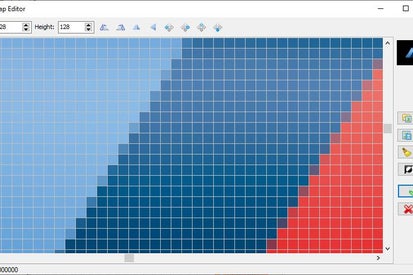

You can find more car logos on pngwing.com

Select "Draw Line3" and in the properties window select "Color" and click on the pin icon and select "Alpha Color SinkPin", set "X" to 140 and "Y" to 79 and "Height" to 8Select "Draw Line4" and in the properties window select "Color" and click on the pin icon and select "Alpha Color SinkPin", set "X" to 140 and "Y" to 140 and "Height" to 10Select "Draw Text1" and in the properties window select "Color" and click on the pin icon and select "Alpha Color SinkPin", set "X" to 40 and "Y" to 50 and "Size" to 3, "Text" to RSelect "Draw Text2" and in the properties window select "Color" and click on the pin icon and select "Alpha Color SinkPin", set "X" to 80 and "Y" to 50 and "Size" to 3, "Text" to 1Select "Draw Text3" and in the properties window select "Color" and click on the pin icon and select "Alpha Color SinkPin", set "X" to 80 and "Y" to 160 and "Size" to 3, "Text" to 2Select "Draw Text4" and in the properties window select "Color" and click on the pin icon and select "Alpha Color SinkPin", set "X" to 130 and "Y" to 50 and "Size" to 3, "Text" to 3Select "Draw Text5" and in the properties window select "Color" and click on the pin icon and select "Alpha Color SinkPin", set "X" to 130 and "Y" to 160 and "Size" to 3, "Text" to 4Select "Draw Text6" and in the properties window select "Color" and click on the pin icon and select "Alpha Color SinkPin", set "X" to 180 and "Y" to 50 and "Size" to 3, "Text" to 5Select "Draw Text7" and in the properties window select "Color" and click on the pin icon and select "Alpha Color SinkPin", set "X" to 180 and "Y" to 160 and "Size" to 3, "Text" to 6Close the "Elements" window

Note: Display will always draw in Layers so Last Element in the window will be drawn last.



Connect "ClockGenerator1" pin [Out] to "MultiSource2" pin [In]Connect "MultiSource2" pin [0] to "ColorValue1" pin [Clock]Connect "MultiSource2" pin [1] to "Counter1" pin [In]Connect "ColorValue1" pin [Out] to "MultiSource1" pin [In]Connect "Counter1" pin [Out] to "MultiSource3" pin [In]Connect "MultiSource3" pin [0] to "Demux1" pin [Select]Connect "MultiSource3" pin [1] to "ColorValue2" pin [Clock]Connect "ColorValue2" pin [Out] to "Demux1" pin [In]







Connect "MultiSource1" pin [0] to "ColorMultiMerger1" pin [0]Connect "MultiSource1" pin [1] to "ColorMultiMerger2" pin [0]Connect "MultiSource1" pin [2] to "ColorMultiMerger3" pin [0]Connect "MultiSource1" pin [3] to "ColorMultiMerger4" pin [0]Connect "MultiSource1" pin [4] to "ColorMultiMerger5" pin [0]Connect "MultiSource1" pin [5] to "ColorMultiMerger6" pin [0]Connect "MultiSource1" pin [6] to "ColorMultiMerger7" pin [0]



Connect "Demux1" pin [0] to "ColorMultiMerger1" pin [1]Connect "Demux1" pin [1] to "ColorMultiMerger2" pin [1]Connect "Demux1" pin [2] to "ColorMultiMerger3" pin [1]Connect "Demux1" pin [3] to "ColorMultiMerger4" pin [1]Connect "Demux1" pin [4] to "ColorMultiMerger5" pin [1]Connect "Demux1" pin [5] to "ColorMultiMerger6" pin [1]Connect "Demux1" pin [6] to "ColorMultiMerger7" pin [1]





Connect "ColorMultiMerger1" pin [Out] to "MultiSource4" pin [In]Connect "ColorMultiMerger2" pin [Out] to "MultiSource5" pin [In]Connect "ColorMultiMerger3" pin [Out] to "MultiSource6" pin [In]Connect "ColorMultiMerger4" pin [Out] to "MultiSource7" pin [In]Connect "ColorMultiMerger5" pin [Out] to "MultiSource8" pin [In]Connect "ColorMultiMerger6" pin [Out] to "MultiSource9" pin [In]Connect "ColorMultiMerger7" pin [Out] to "MultiSource10" pin [In]





Connect "MultiSource4" pin [0] to "Display1" > "Draw Lines1" pin [Color]Connect "MultiSource4" pin [1] to "Display1" > "Draw Lines1" pin [Clock]Connect "MultiSource4" pin [2] to "Display1" > "Draw Text1" pin [Color]Connect "MultiSource4" pin [3] to "Display1" > "Draw Text1" pin [Clock]Connect "MultiSource5" pin [0] to "Display1" > "Draw Line1" pin [Color]Connect "MultiSource5" pin [1] to "Display1" > "Draw Line1" pin [Clock]Connect "MultiSource5" pin [2] to "Display1" > "Draw Text2" pin [Color]Connect "MultiSource5" pin [3] to "Display1" > "Draw Text2" pin [Clock]Connect "MultiSource6" pin [0] to "Display1" > "Draw Line2" pin [Color]Connect "MultiSource6" pin [1] to "Display1" > "Draw Line2" pin [Clock]Connect "MultiSource6" pin [2] to "Display1" > "Draw Text3" pin [Color]Connect "MultiSource6" pin [3] to "Display1" > "Draw Text3" pin [Clock]Connect "MultiSource7" pin [0] to "Display1" > "Draw Line3" pin [Color]Connect "MultiSource7" pin [1] to "Display1" > "Draw Line3" pin [Clock]Connect "MultiSource7" pin [2] to "Display1" > "Draw Text4" pin [Color]Connect "MultiSource7" pin [3] to "Display1" > "Draw Text4" pin [Clock]Connect "MultiSource8" pin [0] to "Display1" > "Draw Line4" pin [Color]Connect "MultiSource8" pin [1] to "Display1" > "Draw Line4" pin [Clock]Connect "MultiSource8" pin [2] to "Display1" > "Draw Text5" pin [Color]Connect "MultiSource8" pin [3] to "Display1" > "Draw Text5" pin [Clock]Connect "MultiSource9" pin [0] to "Display1" > "Draw Lines2" pin [Color]Connect "MultiSource9" pin [1] to "Display1" > "Draw Lines2" pin [Clock]Connect "MultiSource9" pin [2] to "Display1" > "Draw Text6" pin [Color]Connect "MultiSource9" pin [3] to "Display1" > "Draw Text6" pin [Clock]Connect "MultiSource10" pin [0] to "Display1" > "Draw Lines3" pin [Color]Connect "MultiSource10" pin [1] to "Display1" > "Draw Lines3" pin [Clock]Connect "MultiSource10" pin [2] to "Display1" > "Draw Text7" pin [Color]Connect "MultiSource10" pin [3] to "Display1" > "Draw Text7" pin [Clock]



Connect "Display1" pin [Chip Select] to Arduino digital pin [10]Connect "Display1" pin [Data Command] to Arduino digital pin [9]Connect "Display1" pin [Reset] to Arduino digital pin [8]Connect "Display1" Control pin [SPI] to Arduino SPI pin [In]

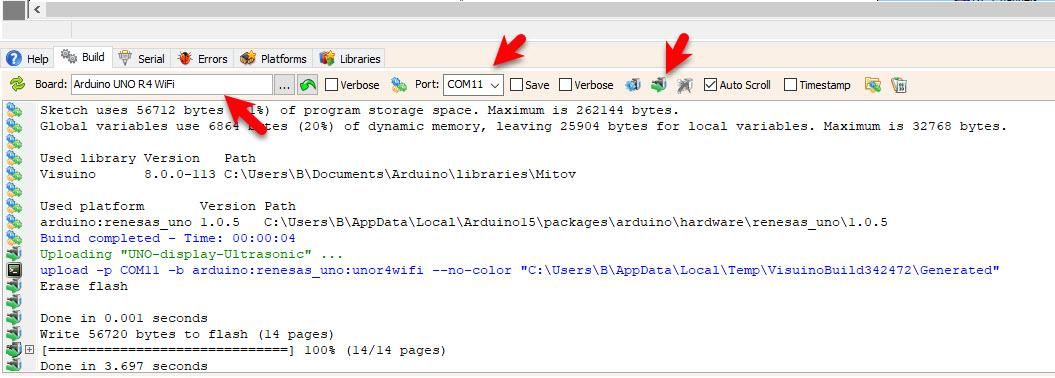

Instead of "Clock Generator" component and "Counter" component just add "Rotary Encoder Sensor" componentSelect "RotaryEncoderSensor1" and in the properties window set "Max">"Value" to 6 and "Min">"Value" to 0Connect Arduino digital pin [3] to "RotaryEncoderSensor1" pin [Direction]Connect Arduino digital pin [2] to "RotaryEncoderSensor1" pin [Clock]Connect "RotaryEncoderSensor1" pin [Out] to "MultiSource3" pin [In]
