LED Indicator Module Light Effects Using Visuino

Ron.Cutts May 27.2025

0 8 Easy

In this tutorial we will learn how to use LED Indicator Module using Visuino.

This module is very useful when you need to indicate some status from sensors or other modules.

Watch the video!

STEP 1

What You Will Need

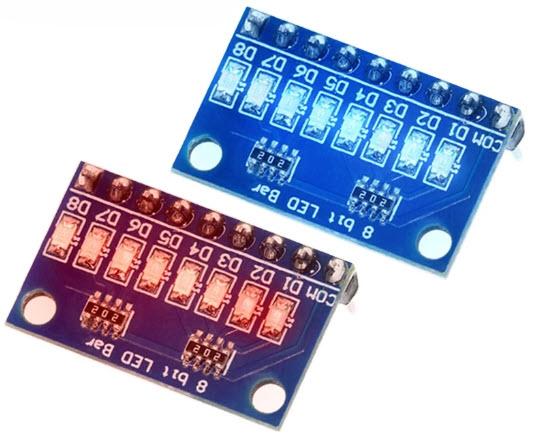

LED Indicator Module (with a common ground)Link or here

Here we are using a module with 6 LEDs, if you will use a module with more LEDs you might need to connect it to other digital pins or use a breadboard

Arduino UNO or Arduino MegaVisuino program: Download Visuino

STEP 2

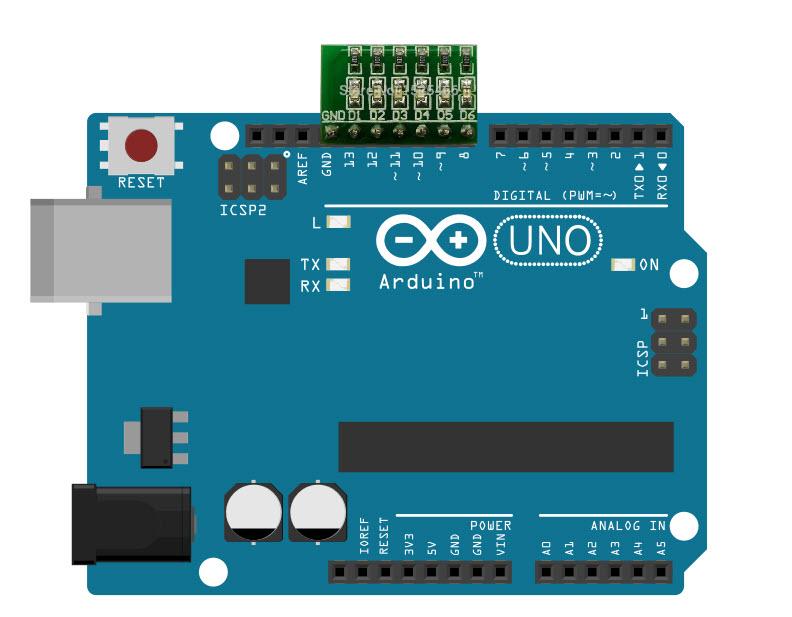

The Circuit

For module with 6 LEDs: Put the module on the Arduino board digital pins [8,9,10,11,12,13,GND]

D6 > digital pin [8]D5 > digital pin [9]D4 > digital pin [10]D3 > digital pin [11]D2 > digital pin [12]D1 > digital pin [13]GND > pin [GND]

If you are using a module with more LEDs you might need to use other digital pins or connect it to the breadboard.

STEP 3

Start Visuino, and Select the Arduino UNO Board Type

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

STEP 4

Start Visuino, and Select the Arduino UNO Board Type Start Visuino, and Select the Arduino UNO Board Type Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

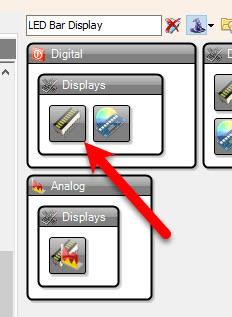

Add "Pulse Generator" componentTo set the speed of the LEDs, set the "Frequency" in the properties to 7 or any other value you might likeAdd "Counter" component, and in the properties window set "Max" > "Value" to 6 < "Value" to 0Add "LED Bar Display" component and in the properties window set "Bars Output Pins" to 6 <

To change the LED direction select "Counter1" and in the properties window set "Reversed" to True

or select "LEDBarDisplay1" and in the properties window set "Inverted Bars" to True

Experiment with different combinations.

STEP 5

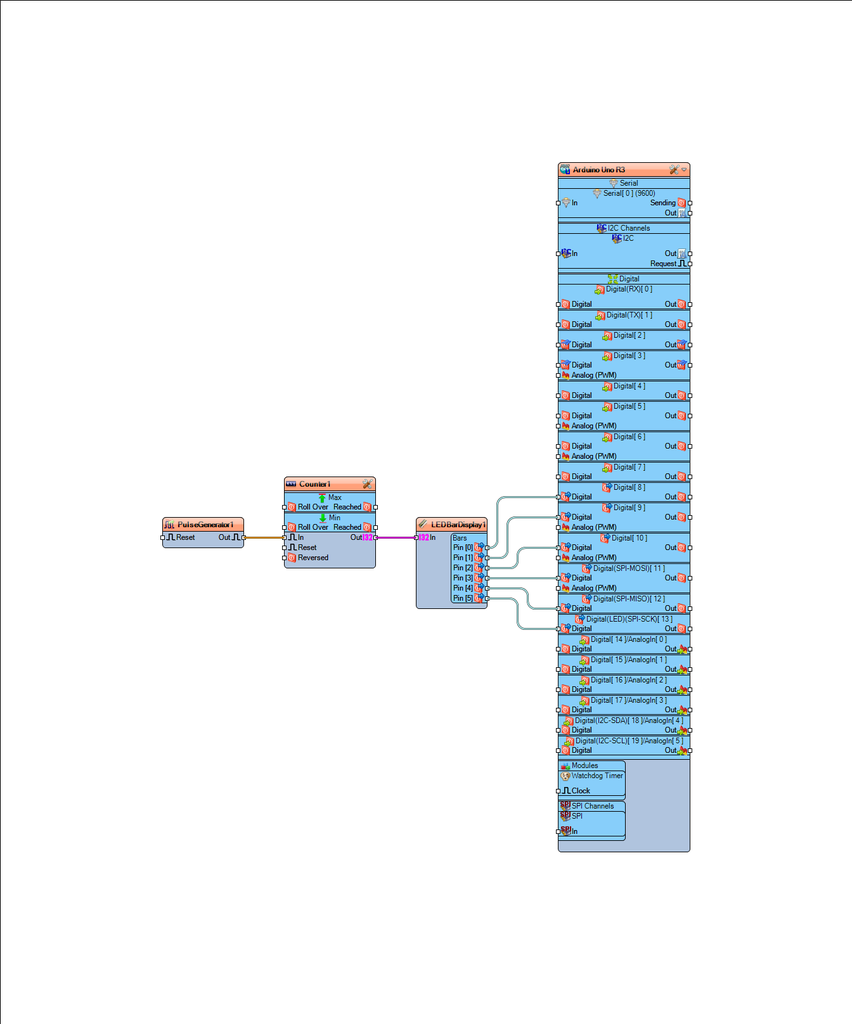

In Visuino Connect Components

Connect "PulseGenerator1" pin [Out] to "Counter1" pin [In]Connect "Counter1" pin [Out] to "LEDBarDisplay1" pin [In]Connect "LEDBarDisplay1" pin [0] to Arduino digital pin [8]Connect "LEDBarDisplay1" pin [1] to Arduino digital pin [9]Connect "LEDBarDisplay1" pin [2] to Arduino digital pin [10]Connect "LEDBarDisplay1" pin [3] to Arduino digital pin [11]Connect "LEDBarDisplay1" pin [4] to Arduino digital pin [12]Connect "LEDBarDisplay1" pin [5] to Arduino digital pin [13]

STEP 6

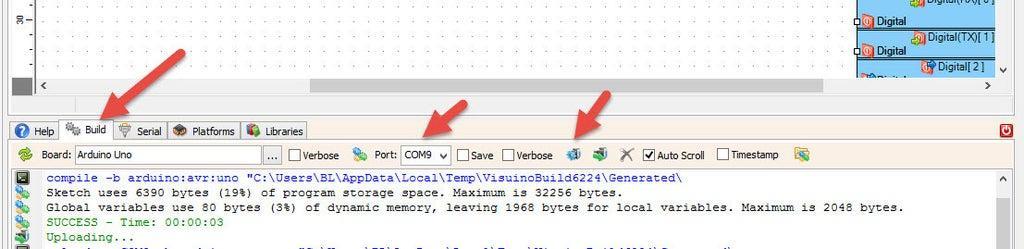

Generate, Compile, and Upload the Arduino Code

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

STEP 7

Play

If you power the Arduino module the LEDs on the indicator module will start to produce different effects.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this tutorial, you can download it and open it in Visuino: https://www.visuino.com

led-Light-Effects.zip 1KB Download(0)
