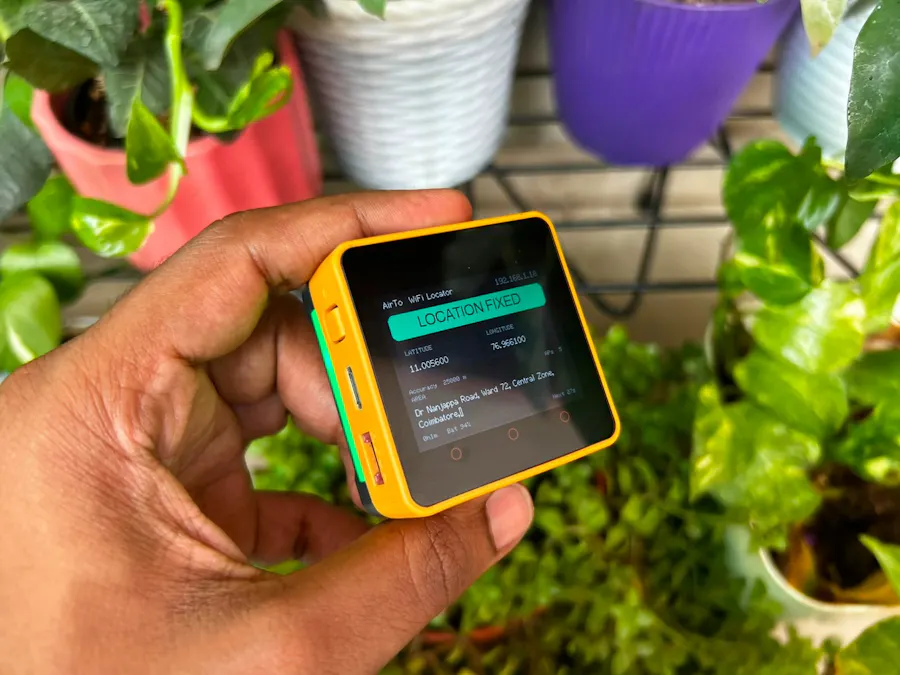

WiFi Geolocation on the M5Stack Core2

// ================== USER CONFIG ==================
const char* WIFI_SSID = "YourWiFiName";
const char* WIFI_PASS = "YourWiFiPassword";
// How often to re-locate (ms)
const unsigned long REFRESH_MS = 30000UL;  // 30 seconds

/*
 * AirTo — WiFi Geolocation on M5Stack Core2 for AWS
 * --------------------------------------------------------------------
 *

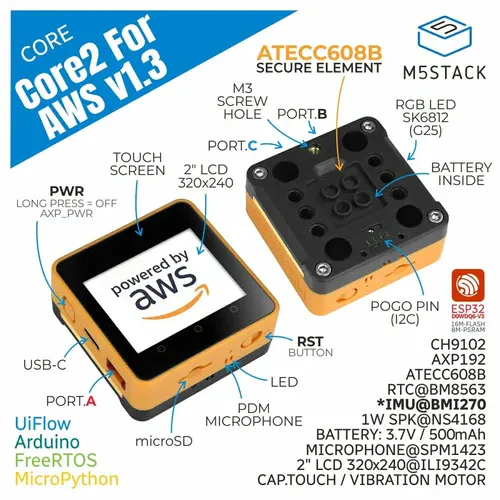

 * Board:   M5Stack Core2 for AWS   (FQBN: esp32:esp32:m5stack_core2)
 * Serial:  115200 baud (CP2104 on the Core2)
 *
 * LED bar (GPIO25, RMT, GRB 800kHz) — frame-based animations:
 *   rainbow wave sweep  = boot
 *   radar sweep         = scanning WiFi
 *   amber comet         = connecting
 *   cyan/magenta chase  = geolocating
 *   breathing green     = location fix OK
 *   red heartbeat       = no fix (retrying)
 */

#include <WiFi.h>
#include <WiFiClientSecure.h>
#include <math.h>
#include <M5Unified.h>
#include <Adafruit_NeoPixel.h>

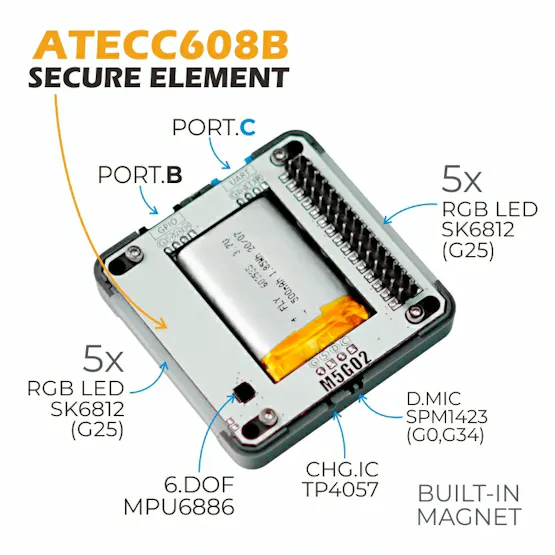

// ---- SK6812 LED bar (10 LEDs, on the M5GO Bottom2 for AWS via M5-Bus) ----
#define LED_PIN   25
#define LED_COUNT 10
Adafruit_NeoPixel strip(LED_COUNT, LED_PIN, NEO_GRB + NEO_KHZ800);

// ---- LED status modes ----
enum LedMode { LED_BOOT, LED_SCAN, LED_CONNECT, LED_GEO, LED_FIX, LED_NOFIX };
volatile LedMode ledMode = LED_BOOT;

// ================== USER CONFIG ==================
const char* WIFI_SSID = " ";
const char* WIFI_PASS = " ";

// How often to re-locate (ms).
const unsigned long REFRESH_MS = 30000UL;  // 30 seconds
// ================================================

// beaconDB geolocation endpoint (MLS-compatible)
const char* GEO_HOST = "api.beacondb.net";
const char* GEO_PATH = "/v1/geolocate";
const int   GEO_PORT = 443;

// ---- result state ----
struct GeoResult {
  bool   ok = false;
  double lat = 0, lng = 0;
  double accuracy = -1;   // metres
  int    apCount = 0;
};

unsigned long lastRun = 0;
GeoResult lastResult;
bool gotFix = false;
unsigned long lastFixMillis = 0;
String gArea = "";
String gIP = "0.0.0.0";
int gApCount = 0;
volatile bool gScanning = false;

// ---------------- screen palette ----------------
// pure function (no M5 object at static-init time)
static uint16_t c565(uint8_t r, uint8_t g, uint8_t b) { return (r >> 3) << 11 | (g >> 2) << 5 | (b >> 3); }

static const uint16_t COLOR_BG    = c565(11, 15, 26);
static const uint16_t COLOR_CARD  = c565(18, 26, 43);
static const uint16_t COLOR_LINE  = c565(34, 48, 74);
static const uint16_t COLOR_TEXT  = c565(230, 236, 245);
static const uint16_t COLOR_DIM   = c565(139, 152, 173);
static const uint16_t COLOR_GREEN = c565(46, 229, 157);
static const uint16_t COLOR_RED   = c565(243, 84, 76);
static const uint16_t COLOR_AMBER = c565(246, 199, 68);
static const uint16_t COLOR_BLUE  = c565(59, 130, 246);

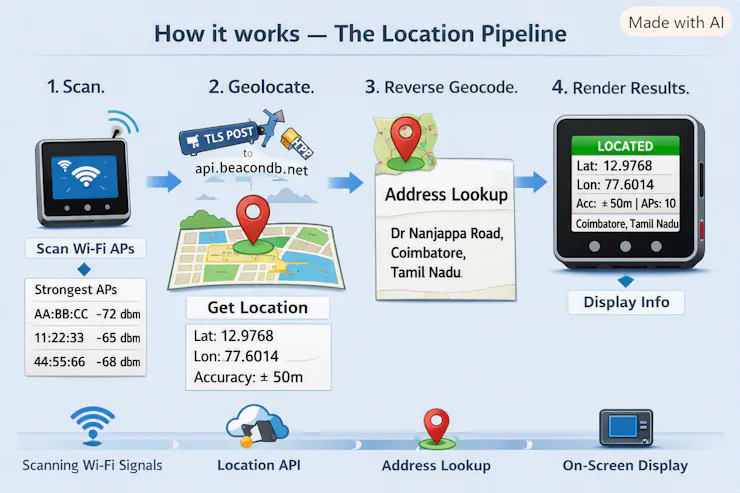

// ---------------- WiFi + beaconDB ----------------

#define MAX_AP_LIST 64
#define MAX_APS 10    // send only the strongest APs — beaconDB fixes better with these

int buildScanBody(String& body) {
  Serial.println("Scanning WiFi...");
  // async scan — LED animation keeps running while WiFi scans
  int n = WiFi.scanNetworks(true /*async*/, true /*show hidden*/);
  unsigned long t0 = millis();
  while (n < 0 && millis() - t0 < 10000) {
    updateLEDs();
    delay(20);
    n = WiFi.scanComplete();
  }
  if (n <= 0) { WiFi.scanDelete(); body = ""; return 0; }

  struct Ap { int rssi; String bssid; String ssid; };
  Ap aps[MAX_AP_LIST];
  int cnt = 0;
  for (int i = 0; i < n && cnt < MAX_AP_LIST; i++) {
    aps[cnt].rssi = WiFi.RSSI(i);
    aps[cnt].bssid = WiFi.BSSIDstr(i);
    aps[cnt].ssid = WiFi.SSID(i);
    cnt++;
  }
  WiFi.scanDelete();

  // sort strongest first
  for (int i = 0; i < cnt; i++)
    for (int j = i + 1; j < cnt; j++)
      if (aps[j].rssi > aps[i].rssi) { Ap t = aps[i]; aps[i] = aps[j]; aps[j] = t; }

  int use = cnt < MAX_APS ? cnt : MAX_APS;
  gApCount = cnt;
  body = "{\"considerIp\":true,\"wifiAccessPoints\":[";
  for (int i = 0; i < use; i++) {
    if (i > 0) body += ",";
    body += "{\"macAddress\":\"";
    body += aps[i].bssid;
    body += "\",\"signalStrength\":";
    body += String(aps[i].rssi);
    body += "}";
  }
  body += "]}";
  Serial.printf("Found %d access points, using strongest %d.\n", cnt, use);
  return use;
}

// Extract a JSON string value that follows a key like "city":  (returns "" if missing).
String jsonString(const String& src, const char* key) {
  int k = src.indexOf(key);
  if (k < 0) return "";
  int c = src.indexOf(':', k);
  if (c < 0) return "";
  int q1 = src.indexOf('"', c);
  if (q1 < 0) return "";
  int q2 = src.indexOf('"', q1 + 1);
  if (q2 <= q1) return "";
  return src.substring(q1 + 1, q2);
}

double jsonNumber(const String& src, const char* key) {
  int k = src.indexOf(key);
  if (k < 0) return NAN;
  int c = src.indexOf(':', k);
  if (c < 0) return NAN;
  int i = c + 1;
  while (i < (int)src.length() && (src[i] == ' ' || src[i] == '\t')) i++;
  int j = i;
  while (j < (int)src.length()) {
    char ch = src[j];
    if ((ch >= '0' && ch <= '9') || ch == '-' || ch == '+' || ch == '.' ||
        ch == 'e' || ch == 'E') j++;
    else break;
  }
  if (j == i) return NAN;
  return src.substring(i, j).toDouble();
}

// Reverse geocode (lat,lng) -> human-readable area name. Free, no key:
//   1) Nominatim (OpenStreetMap)  2) BigDataCloud fallback
String reverseGeocode(double lat, double lng) {
  String area = "";

  WiFiClientSecure c;
  c.setInsecure();
  c.setTimeout(10);

  // --- Nominatim ---
  const char* host = "nominatim.openstreetmap.org";
  String path = String("/reverse?format=jsonv2&lat=") + String(lat, 6) +
                "&lon=" + String(lng, 6) + "&zoom=16";
  Serial.println("Reverse geocoding (Nominatim)...");
  if (c.connect(host, 443)) {
    c.print(String("GET ") + path + " HTTP/1.1\r\n");
    c.print(String("Host: ") + host + "\r\n");
    c.print("User-Agent: AirTo-GeoTest/1.0 ([email protected])\r\n");
    c.print("Connection: close\r\n\r\n");
    String resp;
    unsigned long t = millis();
    while ((c.connected() || c.available()) && millis() - t < 10000) {
      while (c.available()) { resp += (char)c.read(); t = millis(); }
      updateLEDs();
      delay(10);
    }
    c.stop();
    area = jsonString(resp, "\"display_name\"");
  }

  // --- BigDataCloud fallback ---
  if (area.length() == 0) {
    const char* host2 = "api.bigdatacloud.net";
    String path2 = String("/data/reverse-geocode-client?latitude=") + String(lat, 6) +
                   "&longitude=" + String(lng, 6) + "&localityLanguage=en";
    Serial.println("Nominatim failed, trying BigDataCloud...");
    if (c.connect(host2, 443)) {
      c.print(String("GET ") + path2 + " HTTP/1.1\r\n");
      c.print(String("Host: ") + host2 + "\r\n");
      c.print("User-Agent: AirTo-GeoTest/1.0\r\n");
      c.print("Connection: close\r\n\r\n");
      String resp;
      unsigned long t = millis();
      while ((c.connected() || c.available()) && millis() - t < 10000) {
        while (c.available()) { resp += (char)c.read(); t = millis(); }
        updateLEDs();
        delay(10);
      }
      c.stop();
      String city = jsonString(resp, "\"city\"");
      String sub  = jsonString(resp, "\"principalSubdivision\"");
      String ctry = jsonString(resp, "\"countryName\"");
      if (city.length() > 0) area = city;
      if (sub.length() > 0)  area += (area.length() ? ", " : "") + sub;
      if (ctry.length() > 0) area += (area.length() ? ", " : "") + ctry;
    }
  }

  return area;
}

void locate() {
  GeoResult r;
  lastResult = r;     // default = no fix; filled below on success
  gScanning = true;
  ledMode = LED_SCAN;

  WiFi.mode(WIFI_STA);
  WiFi.disconnect(true, false);
  tickAnim(100);

  String body;
  r.apCount = buildScanBody(body);
  gScanning = false;
  if (r.apCount < 2) {
    Serial.println("Not enough access points for a reliable fix.");
    lastResult = r;
    ledMode = LED_NOFIX;
    return;
  }

  Serial.printf("Connecting to \"%s\"...\n", WIFI_SSID);
  ledMode = LED_CONNECT;
  WiFi.begin(WIFI_SSID, WIFI_PASS);
  unsigned long t0 = millis();
  while (WiFi.status() != WL_CONNECTED && millis() - t0 < 20000) {
    tickAnim(250);
    Serial.print('.');
  }
  Serial.println();
  if (WiFi.status() != WL_CONNECTED) {
    Serial.println("WiFi connect failed.");
    lastResult = r;
    ledMode = LED_NOFIX;
    return;
  }
  Serial.print("IP: "); Serial.println(WiFi.localIP());
  gIP = WiFi.localIP().toString();

  ledMode = LED_GEO;

  WiFiClientSecure client;
  client.setInsecure();
  client.setTimeout(15);
  Serial.printf("POST https://%s%s\n", GEO_HOST, GEO_PATH);
  if (!client.connect(GEO_HOST, GEO_PORT)) {
    Serial.println("TLS connect failed.");
    lastResult = r;
    ledMode = LED_NOFIX;
    return;
  }

  client.print(String("POST ") + GEO_PATH + " HTTP/1.1\r\n");
  client.print(String("Host: ") + GEO_HOST + "\r\n");
  client.print("User-Agent: AirTo/1.0\r\n");
  client.print("Content-Type: application/json\r\n");
  client.print(String("Content-Length: ") + body.length() + "\r\n");
  client.print("Connection: close\r\n\r\n");
  client.print(body);

  String resp;
  unsigned long t = millis();
  while ((client.connected() || client.available()) && millis() - t < 15000) {
    while (client.available()) { resp += (char)client.read(); t = millis(); }
    updateLEDs();
    delay(10);
  }
  client.stop();

  int statusPos = resp.indexOf("HTTP/1.1 ");
  if (statusPos >= 0)
    Serial.println("Server: " + resp.substring(statusPos, resp.indexOf('\r', statusPos)));

  double lat = jsonNumber(resp, "\"lat\"");
  double lng = jsonNumber(resp, "\"lng\"");
  double acc = jsonNumber(resp, "\"accuracy\"");

  if (isnan(lat) || isnan(lng)) {
    Serial.println("No location in response. Body tail:");
    Serial.println(resp.substring(max(0, (int)resp.length() - 200)));
    lastResult = r;
    ledMode = LED_NOFIX;
    return;
  }

  r.ok = true;
  r.lat = lat; r.lng = lng; r.accuracy = acc;

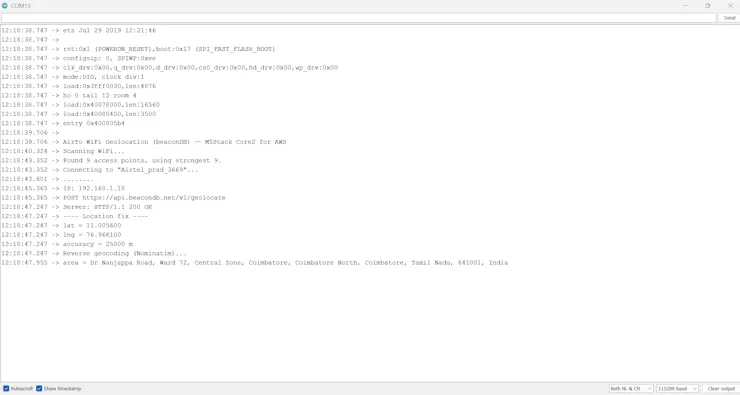

  Serial.println("---- Location fix ----");
  Serial.printf("lat = %.6f\n", r.lat);
  Serial.printf("lng = %.6f\n", r.lng);
  if (!isnan(acc)) Serial.printf("accuracy = %.0f m\n", r.accuracy);

  String area = reverseGeocode(r.lat, r.lng);
  if (area.length() > 0) Serial.println("area = " + area);
  else Serial.println("area = (reverse geocode failed)");

  gArea = area;
  lastFixMillis = millis();
  lastResult = r;
  ledMode = LED_FIX;
}

// ---------------- SK6812 LED bar (frame-based animations) ----------------

#define FRAME_MS 30      // animation tick (~33 fps, smooth motion)

unsigned long lastFrameMs = 0;
int frame = 0;

// HSV -> RGB (h 0..255, s 0..255, v 0..255)
void hsvToRgb(uint8_t h, uint8_t s, uint8_t v, uint8_t& r, uint8_t& g, uint8_t& b) {
  uint8_t region = h / 43, p = (h - region * 43) * 6;
  uint8_t q = v * (255 - s) / 255;
  uint8_t t = v * (255 - ((s * p) / 255)) / 255;
  switch (region) {
    case 0: r = v; g = t; b = q; break;
    case 1: r = q; g = v; b = t; break;
    case 2: r = q; g = t; b = v; break;
    case 3: r = t; g = q; b = v; break;
    case 4: r = v; g = q; b = t; break;
    default: r = v; g = t; b = q; break;
  }
}

// boot: rainbow wave with a bright head bouncing along the bar
void animBoot() {
  int p = (frame / 2) % 18;
  if (p >= 9) p = 18 - p;
  for (int i = 0; i < LED_COUNT; i++) {
    uint8_t h = (uint8_t)(frame * 4 + i * 25);          // rotating rainbow
    int d = abs(i - p);
    uint8_t v = (d == 0) ? 85 : (d == 1) ? 42 : (d == 2) ? 18 : 8;
    uint8_t r, g, b;
    hsvToRgb(h, 255, v, r, g, b);
    strip.setPixelColor(i, r, g, b);
  }
}

// scanning: radar sweep — bright white-blue head + glowing tail, full bar on
void animScan() {
  int p = frame % 18;
  if (p >= 9) p = 18 - p;
  for (int i = 0; i < LED_COUNT; i++) {
    int d = abs(i - p);
    uint8_t v = (d == 0) ? 110 : (d == 1) ? 65 : (d == 2) ? 32 : 12;
    uint8_t r = v / 5, g = v / 2;                        // blue with white-ish head
    strip.setPixelColor(i, r, g, v);
  }
}

// connecting: amber comet orbiting the bar (faster)
void animConnect() {
  int h = (frame / 2) % 10;
  for (int i = 0; i < LED_COUNT; i++) {
    int d = (i - h + 10) % 10;                           // 0 at the head
    uint8_t v = (d == 0) ? 100 : (d == 1) ? 45 : (d == 2) ? 18 : 0;
    strip.setPixelColor(i, v, v * 3 / 4, 0);             // amber (R high, G lower)
  }
}

// geolocating: cyan + magenta comets chasing each other (faster)
void animGeo() {
  int h1 = (frame / 2) % 10;                             // forward
  int h2 = (20 - frame / 2) % 10;                        // backward
  for (int i = 0; i < LED_COUNT; i++) {
    int d1 = (i - h1 + 10) % 10;
    int d2 = (i - h2 + 10) % 10;
    uint8_t c1 = (d1 == 0) ? 90 : (d1 == 1) ? 35 : 0;    // cyan   (g+b)
    uint8_t c2 = (d2 == 0) ? 90 : (d2 == 1) ? 35 : 0;    // magenta (r+b)
    strip.setPixelColor(i, c2, c1, (c1 + c2) / 2);
  }
}

// fix: breathing green with a traveling sparkle + periodic glint
void animFix() {
  uint8_t base = (uint8_t)(22 + 28 * sinf(frame * 0.09f));   // ~2.2 s breath
  if ((frame % 90) < 3) base = 80;                           // glint every ~2.7 s
  int sp = (frame / 2) % 10;                                 // traveling sparkle
  for (int i = 0; i < LED_COUNT; i++) {
    uint8_t v = base + ((i == sp) ? 40 : 0);
    if (v > 100) v = 100;
    strip.setPixelColor(i, 0, v, 0);
  }
}

// no fix: red heartbeat — fast lub-dub, quick rest
void animNoFix() {
  int t = frame % 30;                                   // ~0.9 s cycle
  uint8_t v;
  if      (t < 2)  v = 90;                              // lub
  else if (t < 4)  v = 25;
  else if (t < 6)  v = 90;                              // dub
  else if (t < 9)  v = 25;
  else if (t < 20) v = 12;                              // slow decay
  else             v = 0;
  for (int i = 0; i < LED_COUNT; i++) strip.setPixelColor(i, v, 0, 0);
}

void updateLEDs() {
  unsigned long now = millis();
  if (now - lastFrameMs < FRAME_MS) return;
  lastFrameMs = now;
  frame++;

  switch (ledMode) {
    case LED_BOOT:    animBoot(); break;
    case LED_SCAN:    animScan(); break;
    case LED_CONNECT: animConnect(); break;
    case LED_GEO:     animGeo(); break;
    case LED_FIX:     animFix(); break;
    case LED_NOFIX:   animNoFix(); break;
  }
  strip.show();
}

// keep the LED animation running during a blocking wait
void tickAnim(unsigned long ms) {
  unsigned long t = millis() + ms;
  while (millis() < t) {
    updateLEDs();
    delay(10);
  }
}

// ---------------- screen UI ----------------

// ---------------- screen UI (classic GLCD fonts, original sizes) ----------------

static const auto F_TITLE = &fonts::Font2;
static const auto F_PILL  = &fonts::Font4;
static const auto F_LABEL = &fonts::Font0;
static const auto F_VALUE = &fonts::Font2;
static const auto F_AREA  = &fonts::Font2;
static const auto F_FOOT  = &fonts::Font0;

// wrap text into lines that fit maxW px (maxLines max); appends "…" to the last line when truncated
void wrapText(String& out, const char* text, int maxW, int maxLines) {
  out = "";
  String rest = text;
  int lines = 1;
  bool trunc = false;
  while (rest.length() > 0) {
    int sp = rest.indexOf(' ');
    if (sp < 0) sp = rest.length();
    String word = rest.substring(0, sp);
    String trial = out;
    if (trial.length() > 0 && M5.Display.textWidth(trial + " " + word) > maxW) {
      if (lines >= maxLines) { trunc = true; break; }
      trial += "\n";
      lines++;
    } else if (trial.length() > 0) {
      trial += " ";
    }
    trial += word;
    out = trial;
    rest = rest.substring(sp + 1);
  }
  if (trunc) out += "\u2026";   // ellipsis appended to the last line
}

unsigned long lastScreenMs = 0;
unsigned long bootMs = 0;

// last-drawn state (dirty checks — only repaint what actually changed)
enum PillState { PILL_NONE, PILL_SCAN, PILL_GEO, PILL_FIX };
PillState pillState = PILL_NONE;
String lastLat = "", lastLng = "", lastAcc = "", lastAp = "";
String lastArea = "", lastFootL = "", lastFootR = "", lastIP = "";
bool uiReady = false;

int currentPill() {   // returns a PillState — plain int so the Arduino
  if (gScanning || ledMode == LED_SCAN) return PILL_SCAN;   // auto-prototype
  if (ledMode == LED_CONNECT || ledMode == LED_GEO) return PILL_GEO;  // stays valid
  if (gotFix) return PILL_FIX;
  return PILL_NONE;
}

// static frame — drawn once, never touched again (no panel reset, no flicker)
void drawStatic() {
  M5.Display.setRotation(1);   // landscape 320x240
  M5.Display.fillScreen(COLOR_BG);
  M5.Display.setTextDatum(top_left);

  // header
  M5.Display.setTextColor(COLOR_TEXT, COLOR_BG);
  M5.Display.setFont(F_TITLE);
  M5.Display.drawString("AirTo  WiFi Locator", 12, 8);

  // coordinate boxes + labels
  M5.Display.fillRoundRect(12, 86, 145, 52, 8, COLOR_CARD);
  M5.Display.fillRoundRect(163, 86, 145, 52, 8, COLOR_CARD);
  M5.Display.setTextColor(COLOR_DIM, COLOR_CARD);
  M5.Display.setFont(F_LABEL);
  M5.Display.drawString("LATITUDE", 24, 92);
  M5.Display.drawString("LONGITUDE", 175, 92);

  // area label
  M5.Display.setTextColor(COLOR_DIM, COLOR_BG);
  M5.Display.drawString("AREA", 12, 162);
}

// status pill — only repaints when the state actually changes
void drawPill() {
  PillState ps = (PillState)currentPill();
  if (ps == pillState && uiReady) return;
  pillState = ps;
  uint16_t c;
  const char* t;
  switch (ps) {
    case PILL_SCAN: c = COLOR_BLUE;  t = "SCANNING";       break;
    case PILL_GEO:  c = COLOR_AMBER; t = "GEOLOCATING";    break;
    case PILL_FIX:  c = COLOR_GREEN; t = "LOCATION FIXED"; break;
    default:        c = COLOR_RED;   t = "NO FIX";         break;
  }
  M5.Display.fillRoundRect(12, 34, 296, 40, 10, c);
  M5.Display.setTextColor(COLOR_BG, c);
  M5.Display.setFont(F_PILL);
  M5.Display.drawCenterString(t, 160, 42);
}

// coordinate values — repaint only when the numbers change
void drawCoords() {
  String latS = gotFix ? String(lastResult.lat, 6) : "---";
  String lngS = gotFix ? String(lastResult.lng, 6) : "---";
  if (latS == lastLat && lngS == lastLng && uiReady) return;
  lastLat = latS; lastLng = lngS;
  M5.Display.fillRoundRect(12, 104, 145, 30, 6, COLOR_CARD);
  M5.Display.fillRoundRect(163, 104, 145, 30, 6, COLOR_CARD);
  M5.Display.setTextColor(COLOR_TEXT, COLOR_CARD);
  M5.Display.setFont(F_VALUE);
  M5.Display.drawString(latS, 24, 112);
  M5.Display.drawString(lngS, 175, 112);
}

// accuracy + AP count row
void drawMeta() {
  String accS = (gotFix && !isnan(lastResult.accuracy)) ? String((int)lastResult.accuracy) + " m" : "--";
  String apS = String(gApCount);
  if (accS == lastAcc && apS == lastAp && uiReady) return;
  lastAcc = accS; lastAp = apS;
  M5.Display.setTextColor(COLOR_DIM, COLOR_BG);
  M5.Display.setFont(F_LABEL);
  M5.Display.fillRect(12, 150, 160, 10, COLOR_BG);
  M5.Display.drawString("Accuracy  " + accS, 12, 150);
  M5.Display.fillRect(220, 150, 88, 10, COLOR_BG);
  M5.Display.drawString("APs  " + apS, 320 - 12 - M5.Display.textWidth("APs  " + apS), 150);
}

// area text — max 2 wrapped lines (fixed y, no multi-line spacing surprises),
// ellipsis when cut, always inside the screen
void drawArea() {
  String areaLine = gotFix && gArea.length() > 0 ? gArea : "Waiting for fix...";
  String wrapped;
  wrapText(wrapped, areaLine.c_str(), 296, 2);
  if (wrapped == lastArea && uiReady) return;
  lastArea = wrapped;
  M5.Display.fillRect(12, 178, 296, 36, COLOR_BG);   // clear 2 lines of Font2
  M5.Display.setTextColor(COLOR_TEXT, COLOR_BG);
  M5.Display.setFont(F_AREA);
  int nl = wrapped.indexOf('\n');
  String l1 = (nl < 0) ? wrapped : wrapped.substring(0, nl);
  String l2 = (nl < 0) ? "" : wrapped.substring(nl + 1);
  M5.Display.drawString(l1, 12, 178);
  if (l2.length() > 0) M5.Display.drawString(l2, 12, 196);
}

// IP — repaint only when it changes
void drawIP() {
  if (gIP == lastIP && uiReady) return;
  lastIP = gIP;
  M5.Display.setTextColor(COLOR_DIM, COLOR_BG);
  M5.Display.setFont(F_TITLE);
  M5.Display.fillRect(170, 8, 140, 16, COLOR_BG);
  M5.Display.drawString(gIP, 320 - 12 - M5.Display.textWidth(gIP), 9);
}

// footer: uptime + battery (left), next update countdown (right)
void drawFooter() {
  unsigned long up = (millis() - bootMs) / 1000;
  String upS = String(up / 3600) + "h" + String((up % 3600) / 60) + "m";
  unsigned long remain = (millis() - lastRun >= REFRESH_MS) ? 0 : REFRESH_MS - (millis() - lastRun);
  String nextS = gotFix ? "Next " + String(remain / 1000) + "s" : "Retrying";
  int bat = M5.Power.getBatteryLevel();
  String batS = bat >= 0 ? "Bat " + String(bat) + "%" : "USB";
  String footL = upS + "   " + batS;
  String footR = nextS;
  if (footL == lastFootL && footR == lastFootR && uiReady) return;
  lastFootL = footL; lastFootR = footR;
  M5.Display.setTextColor(COLOR_DIM, COLOR_BG);
  M5.Display.setFont(F_FOOT);
  M5.Display.fillRect(12, 222, 296, 10, COLOR_BG);
  M5.Display.drawString(footL, 12, 222);
  M5.Display.drawString(footR, 320 - 12 - M5.Display.textWidth(footR), 222);
}

// paint every dirty region (called from the 1 s tick)
void refreshUI() {
  drawPill();
  drawCoords();
  drawMeta();
  drawArea();
  drawIP();
  drawFooter();
  uiReady = true;
}

// ---------------- setup / loop ----------------

void setup() {
  Serial.begin(115200);
  delay(100);
  Serial.println("\nAirTo WiFi Geolocation (beaconDB) — M5Stack Core2 for AWS");

  auto cfg = M5.config();
  M5.begin(cfg);
  bootMs = millis();
  M5.Power.setLed(12);            // soft glow on the base green LED
  strip.begin();
  strip.clear();
  strip.show();
  ledMode = LED_BOOT;
  drawStatic();
  refreshUI();

  // show scanning state while the (blocking) first locate() runs
  gScanning = true;
  ledMode = LED_SCAN;
  refreshUI();
  locate();
  gotFix = lastResult.ok;
  lastRun = millis();
  refreshUI();
}

void loop() {
  M5.update();
  updateLEDs();

  unsigned long interval = gotFix ? REFRESH_MS : 10000UL;  // retry fast until we get a fix
  if (millis() - lastRun >= interval) {
    gScanning = true;
    ledMode = LED_SCAN;
    refreshUI();
    locate();
    gotFix = lastResult.ok;
    lastRun = millis();
    refreshUI();
  }

  if (millis() - lastScreenMs >= 1000) {   // refresh countdown etc. once per second
    lastScreenMs = millis();
    refreshUI();
  }
  delay(10);
}
